SANTEC - OYAKO CRANE SWIVEL 7924 BLACK NICKEL FISHING SWIVEL ACCESSORIES

Santec Oyako Crane Swivel 7924 Black Nickel

Oyako (親子) is Japanese for "parent and child", and that is what this swivel is: a three-way swivel with one large parent eye and one smaller child eye, joined by a crane barrel that keeps turning under load. It is the standard way to take a dropper off the main line: main line to the top eye, sinker to the bottom eye, hook trace off the side child eye — so the branch hangs clear instead of being knotted into the running line. Six size pairings are offered, each combining a parent and a child size.

Key Features

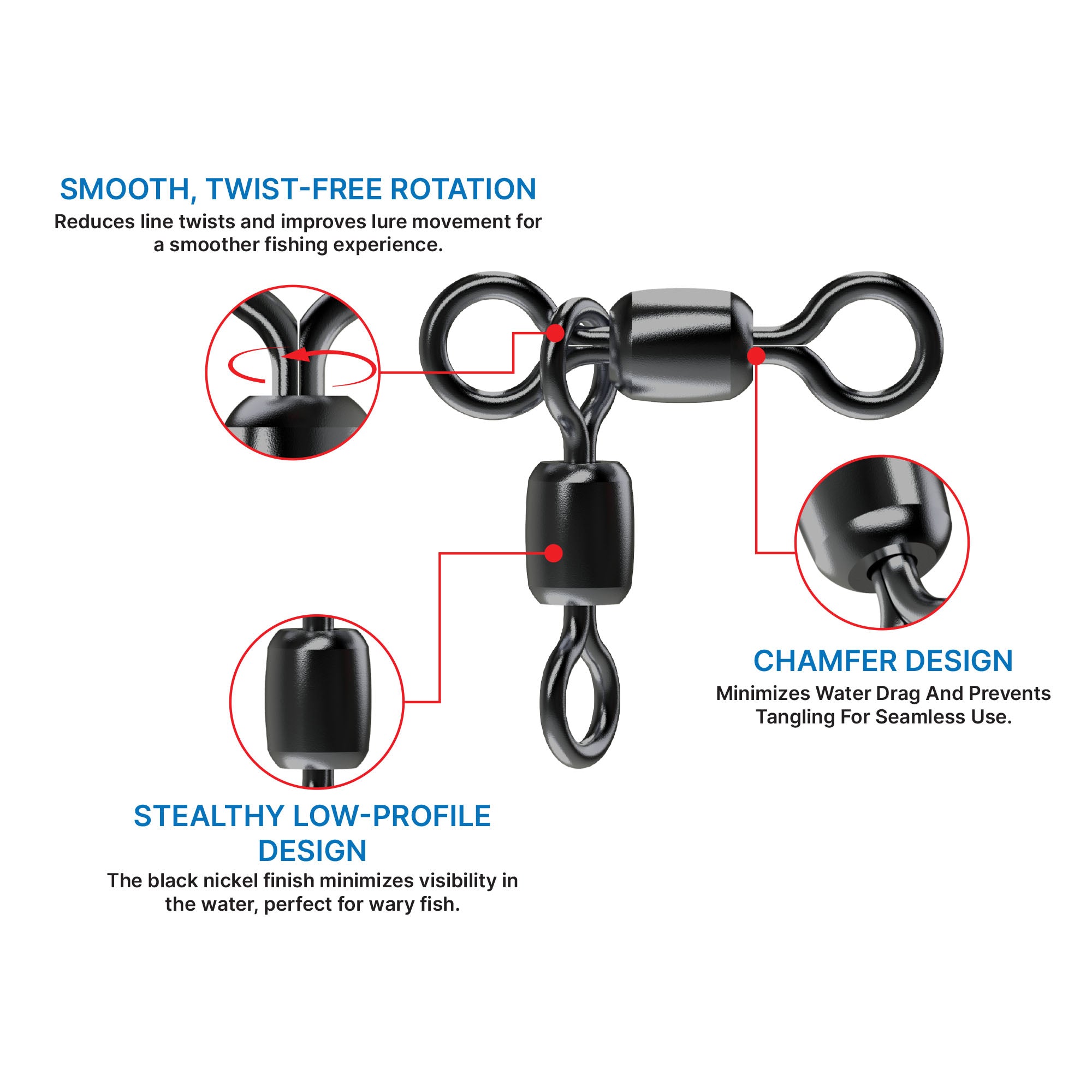

• Three-way oyako (parent-and-child) design for branch and dropper rigs

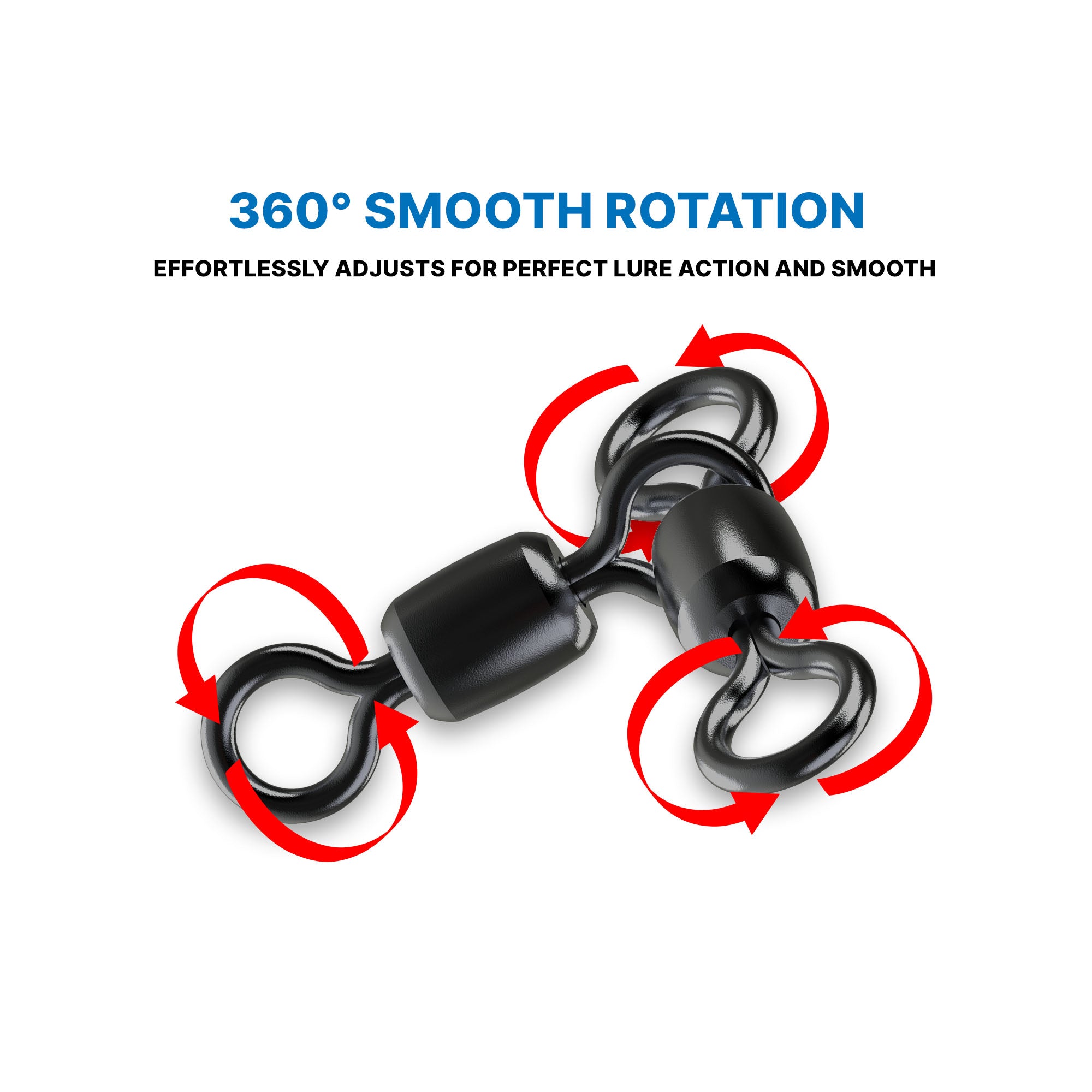

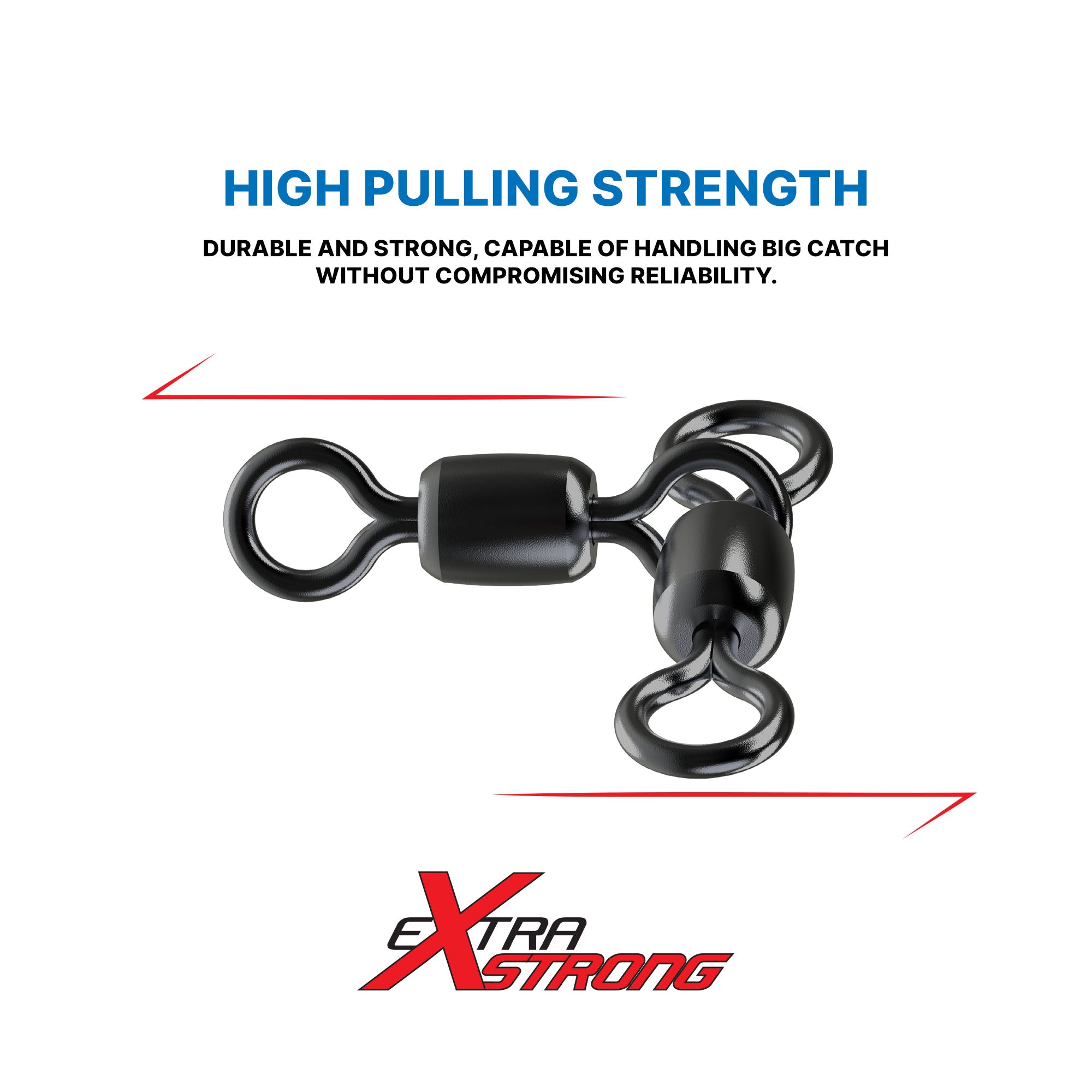

• Crane barrel keeps turning under moderate load where a plain barrel binds

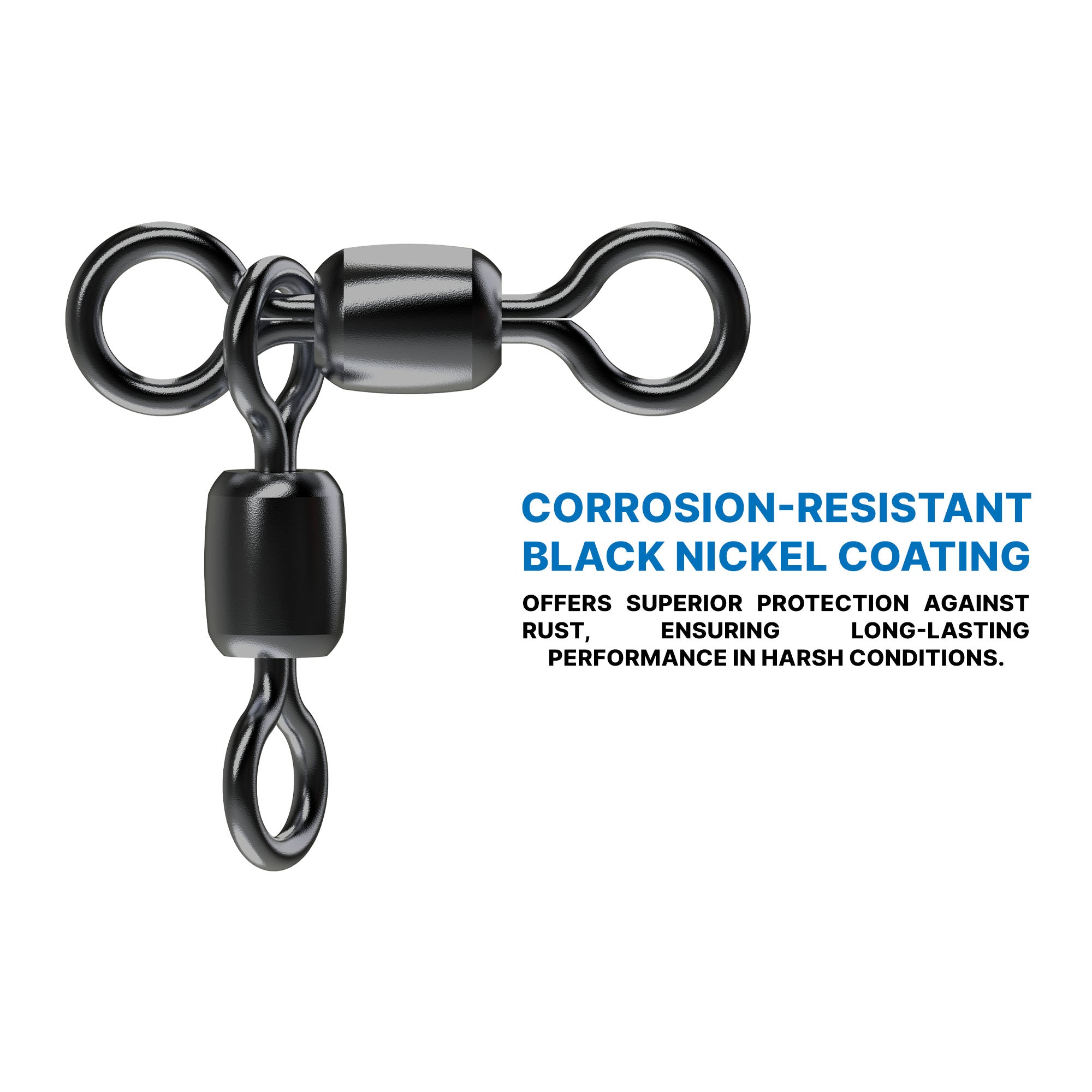

• Black nickel, low-flash finish

How To Rig It

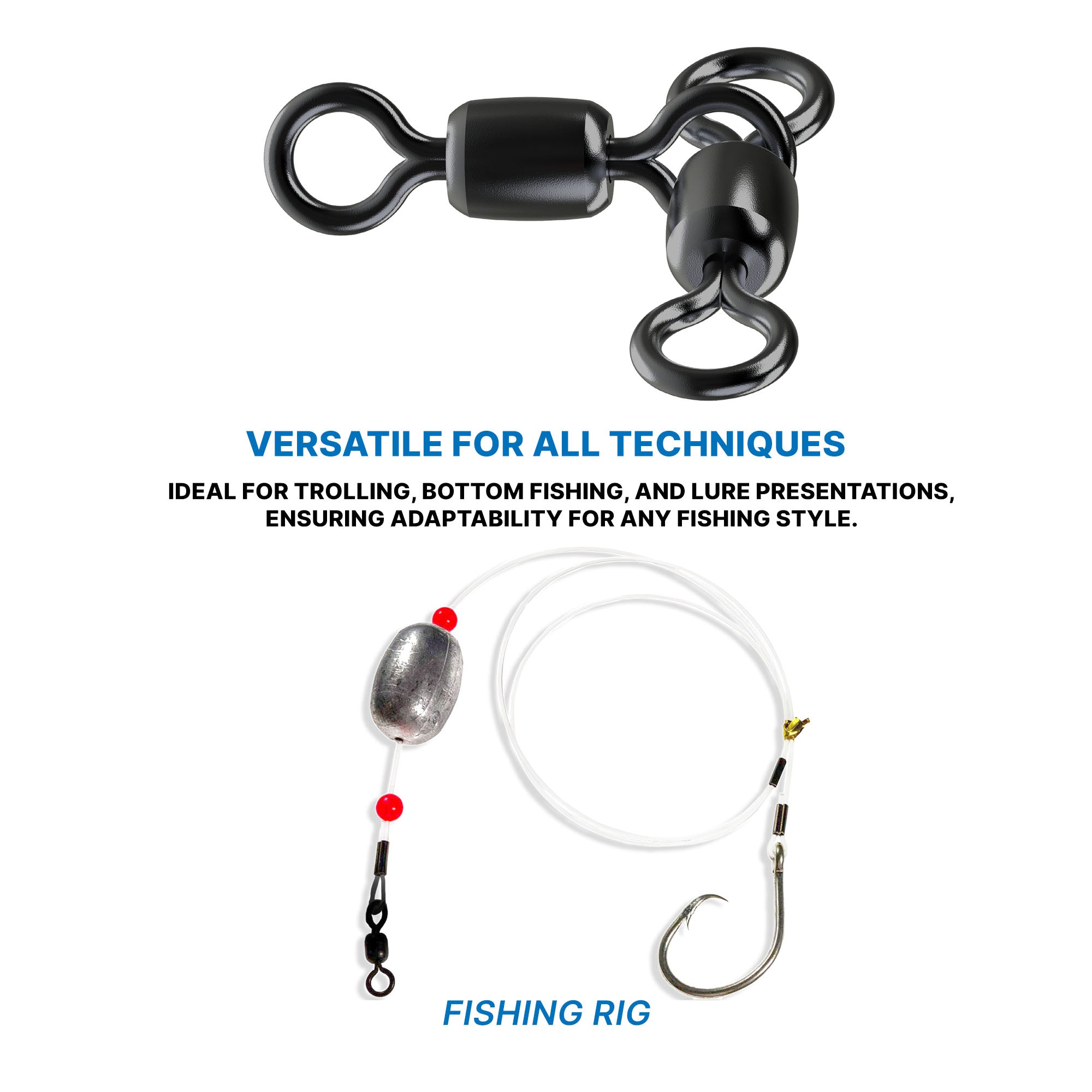

• Standard dropper rig — Main line to the top parent eye, a short length to the sinker from the bottom eye, and the baited trace off the child eye. The bait then stands out to the side, above the lead.
• Multi-hook paternoster — Space two or three oyako swivels up the rig body, each carrying one trace. Keep every trace shorter than the gap to the next swivel or they tangle on the cast.
• Break-off sinker link — Tie the sinker to the bottom eye on line lighter than the rest of the rig. In rock and coral you then lose only the lead, not the whole rig.

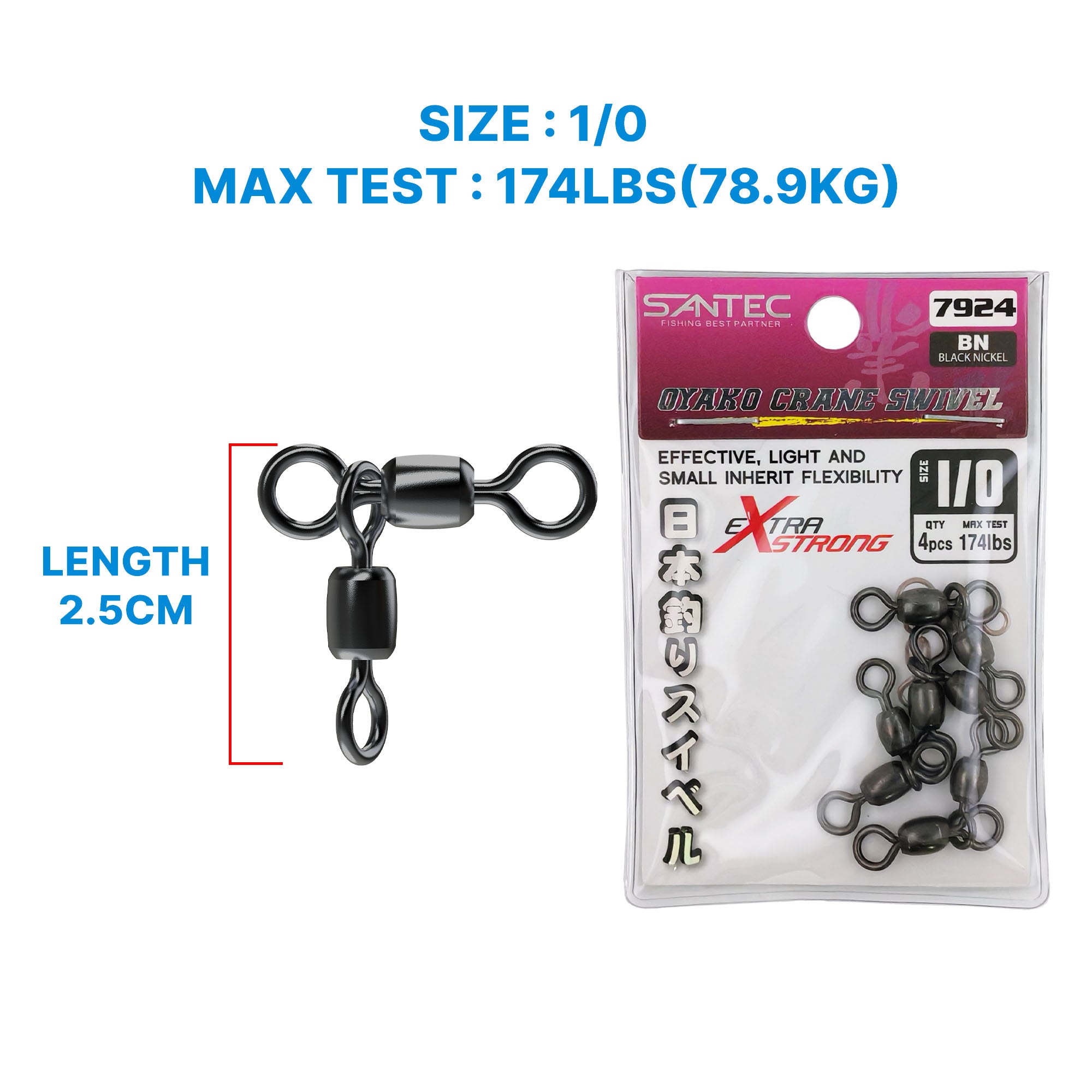

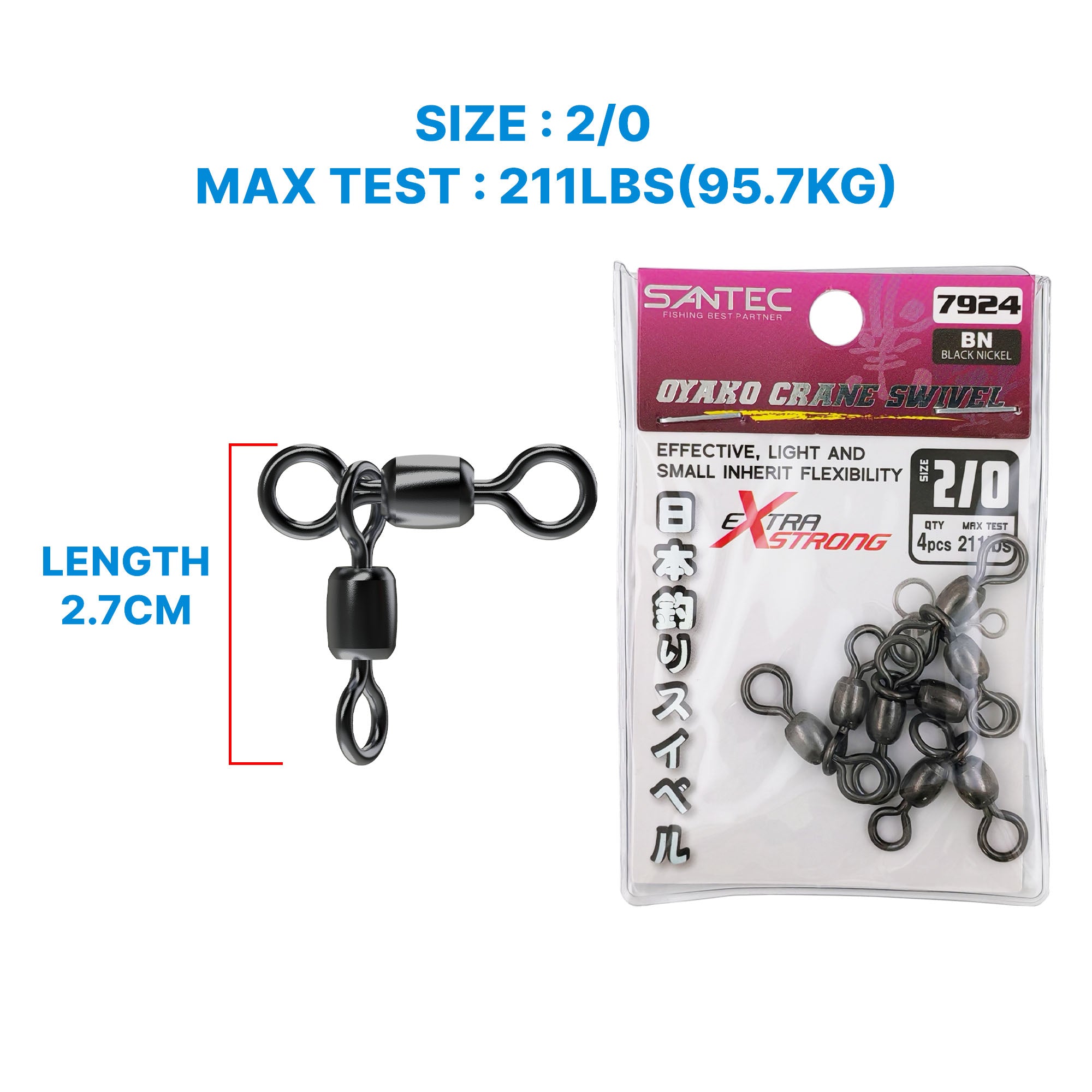

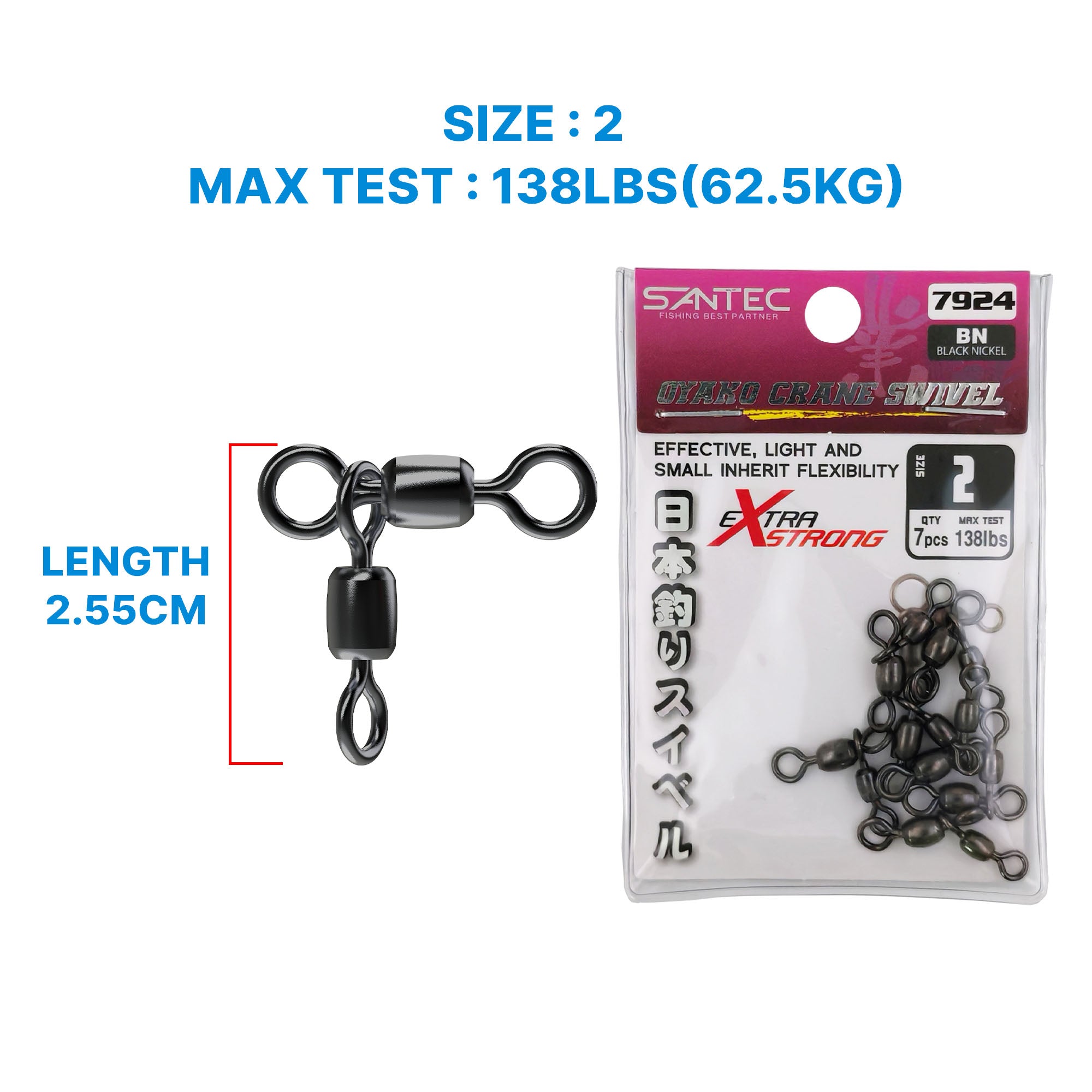

• Choosing the size — Read the pairing as parent x child. The /0 pairings (#3/0 x 2/0, #2/0 x 1) are for heavy bottom, boat and surf rigs; the plain numbers (#4 x 5, #2 x 3) are the light end for estuary, pond and light shore work.

Bottom Fishing By Region

• Southeast Asia — Jetty, breakwater and mangrove-channel dropper rigs for barramundi (siakap), mangrove jack, grouper and snapper; small pairings suit pond rigs for tilapia and freshwater catfish (ikan keli).
• North America — Three-way rigs for walleye and lake trout, pier and party-boat bottom rigs for sea bass, porgy and flounder.
• Japan & East Asia — The backbone of dou-tsuki (胴突き仕掛け) dropper rigs for kasago, mebaru and ainame, and used in nage-zuri (投げ釣り) beach rigs for kisu and karei.
• Australia, Middle East & Europe — Beach and rock paternoster rigs for whiting, bream and mulloway; Gulf shore rigs for emperor and grouper; European boat and wreck rigs for cod, pollack and dab.

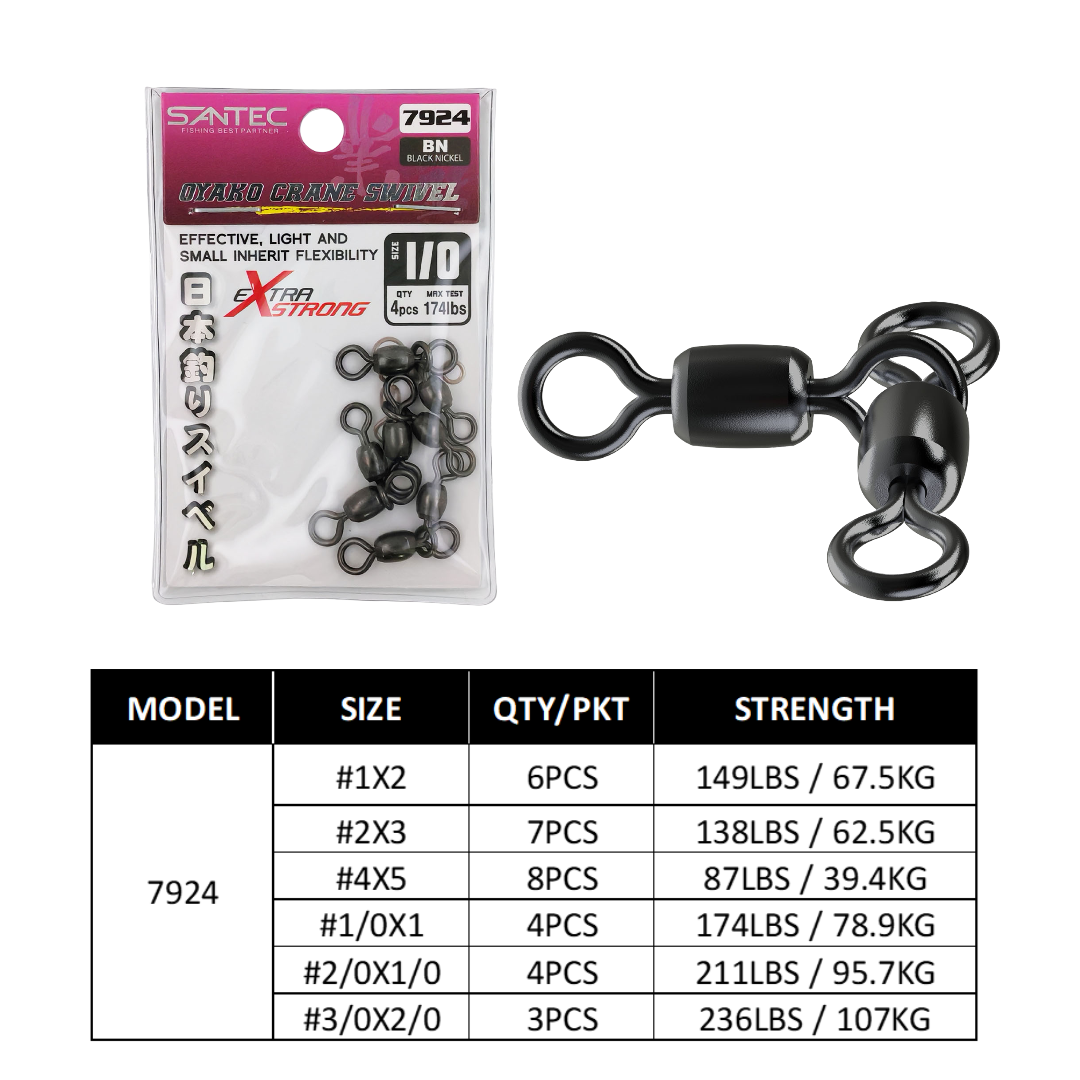

Specifications

Model 7924, black nickel finish throughout.

Recommended Pairing

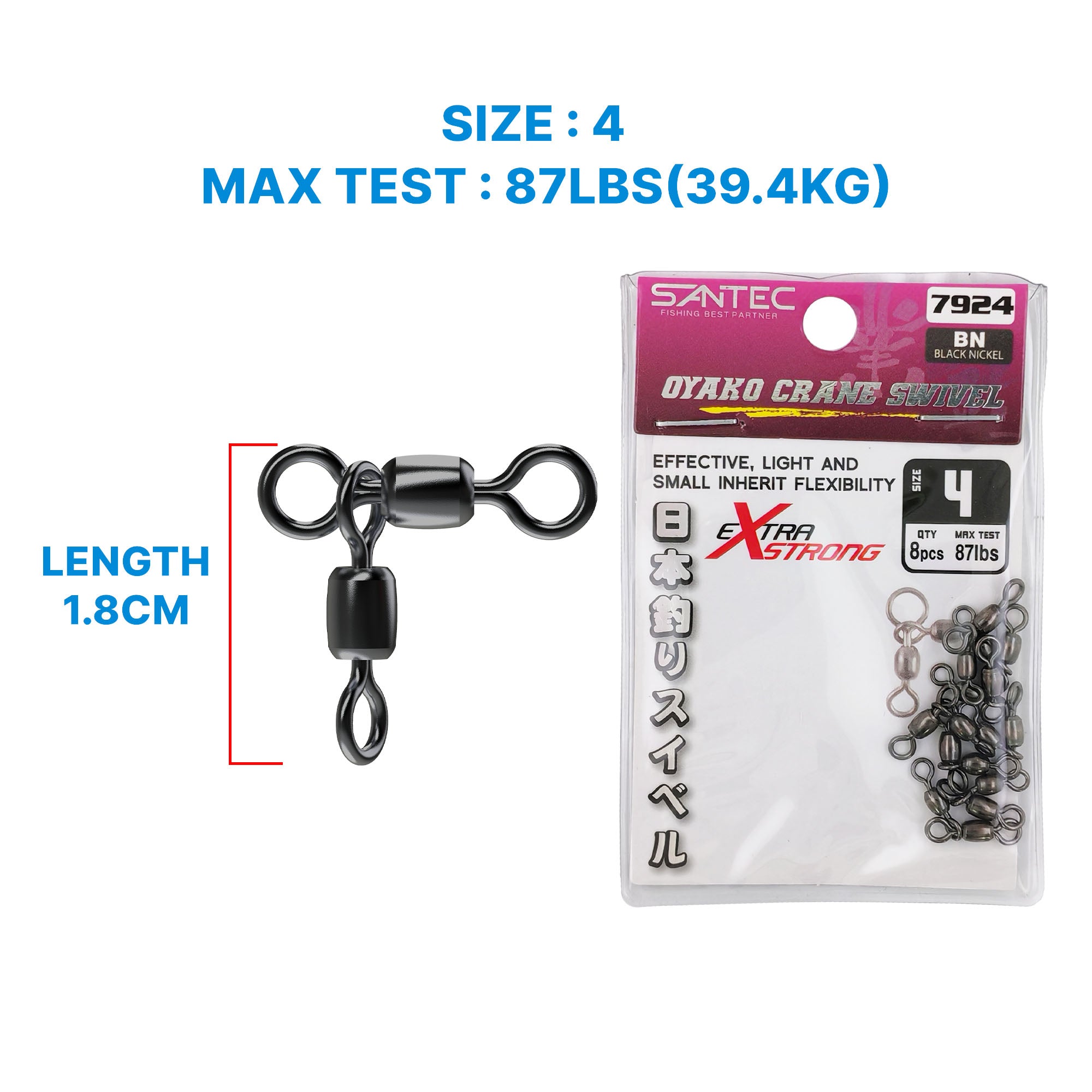

• #4 x 5 and #2 x 3: light shore, estuary and pond outfits, 8–20 lb main line with 10–20 lb traces
• #1 x 2 and #1/0 x 1: medium jetty, surf and boat outfits, 20–40 lb braid with 30–50 lb traces

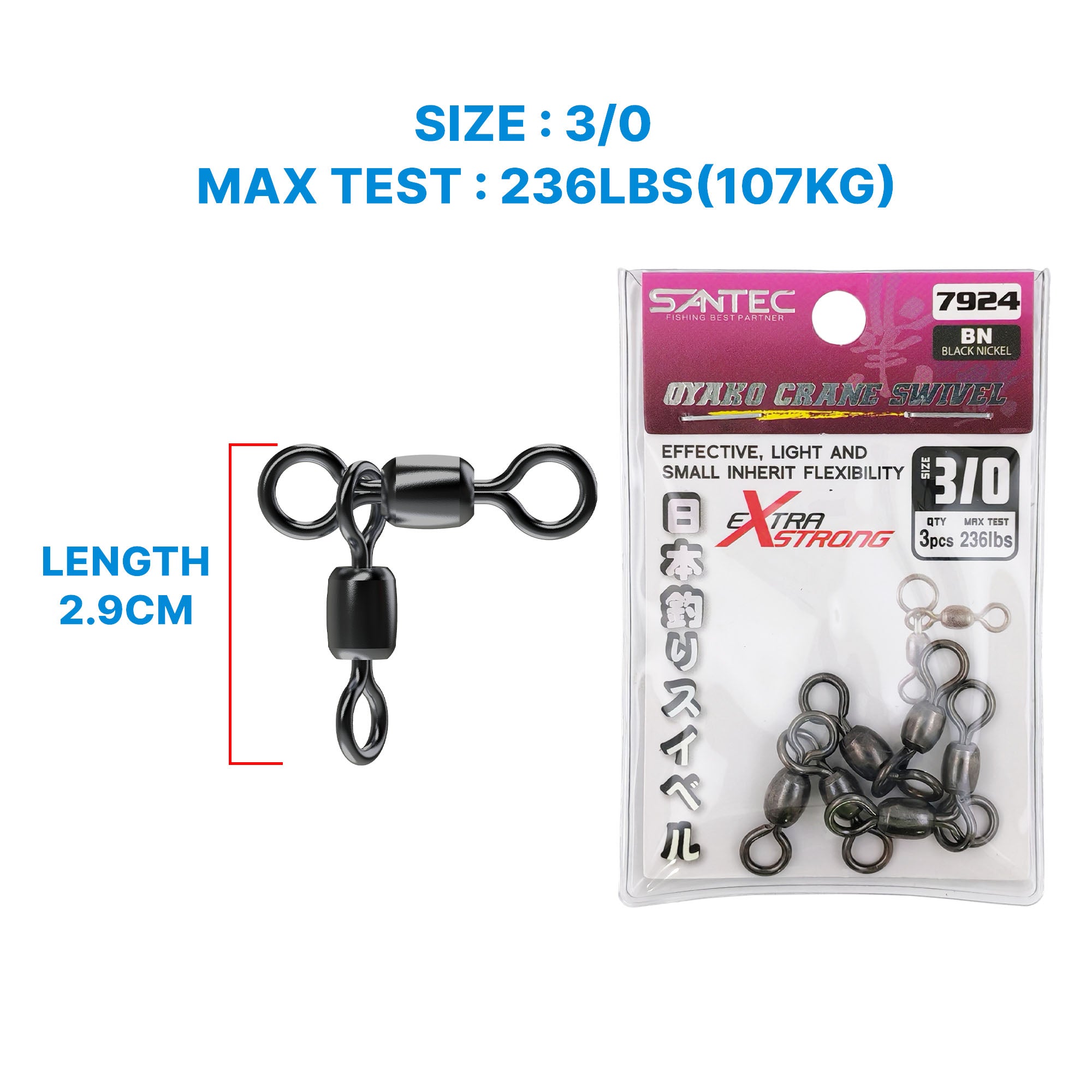

• #2/0 x 1 and #3/0 x 2/0: heavy bottom and strong-current outfits, 50 lb braid and up
