HINOTSU - DIAMOND INSURANCE SNAP 7723 FISHING SNAP

Hinotsu Diamond Insurance Snap 7723 Fishing Snap

The Hinotsu 7723 is the security option in the Hinotsu snap range — the only one with a double, interlocking closure rather than a single gate, which makes it the choice for big fish and for fishing tight to structure. On an ordinary snap the wire tip rests in one hooked catch; a sideways load, a jig slamming against the closure, or a lure levering on it while a fish rolls can spring that one catch open. The insurance-style closure locks the tip a second time, so the gate has to be deliberately worked open with your fingers rather than pushed open by the fight. The diamond-shaped body keeps attached lures, jigs and rigs centred and balanced while still letting them move, and the stainless-steel construction supplies both the spring tension the lock needs and corrosion resistance for hard freshwater and saltwater use. Seven sizes, #0 through #6, cover light tackle up to heavy saltwater rigs.

Within the Hinotsu snap family: the egg snap 7721 is the light, compact option for small lures; the hard round snap 7717 is the general-purpose workhorse; the Special Nice snap 7722 adds a silicone-sleeved contact area for quiet connection; the ball bearing hard round snap 7711 is the only one with a bearing swivel built in; and the diamond insurance snap 7723 is the one that adds a second lock for when opening is the thing you cannot afford.

Key Features

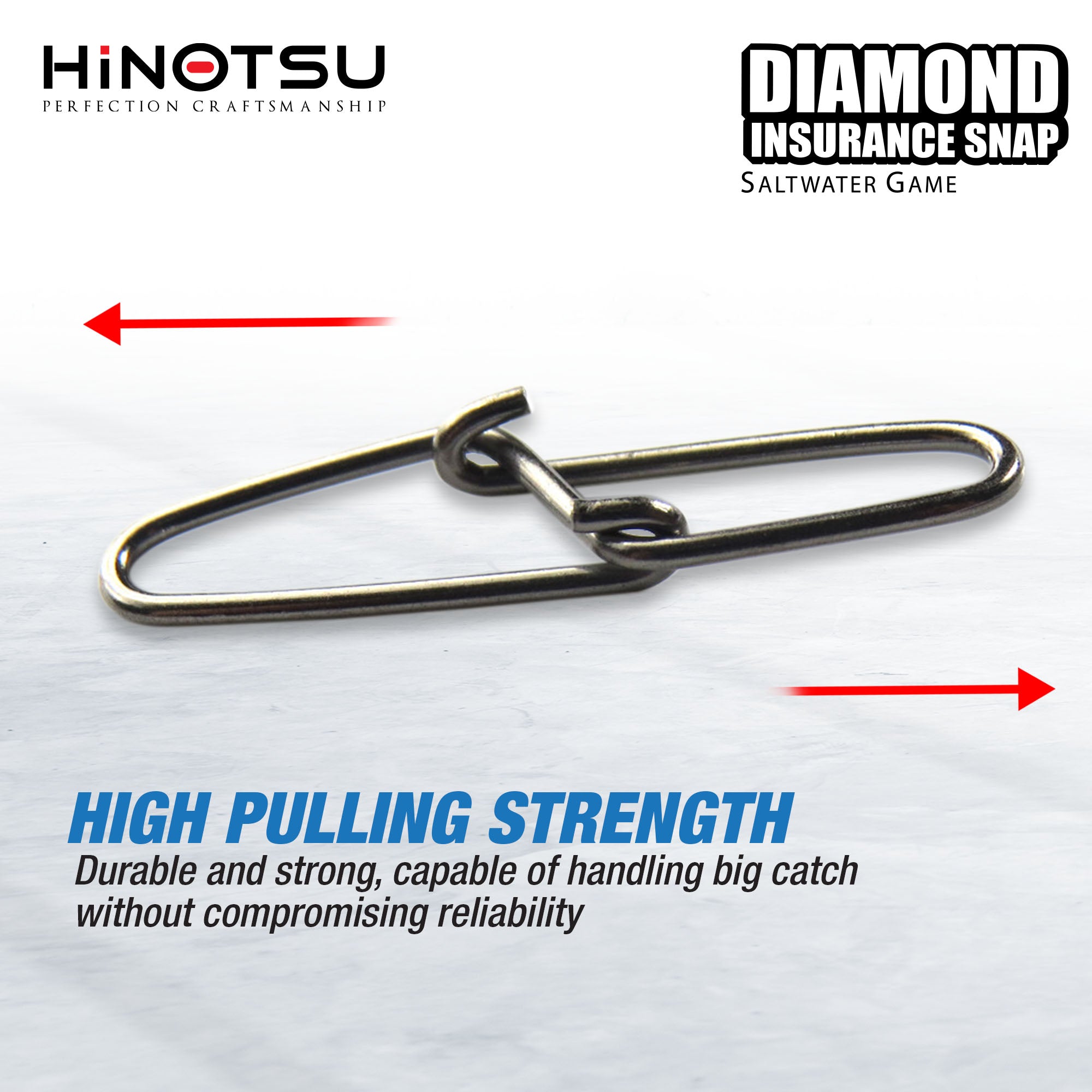

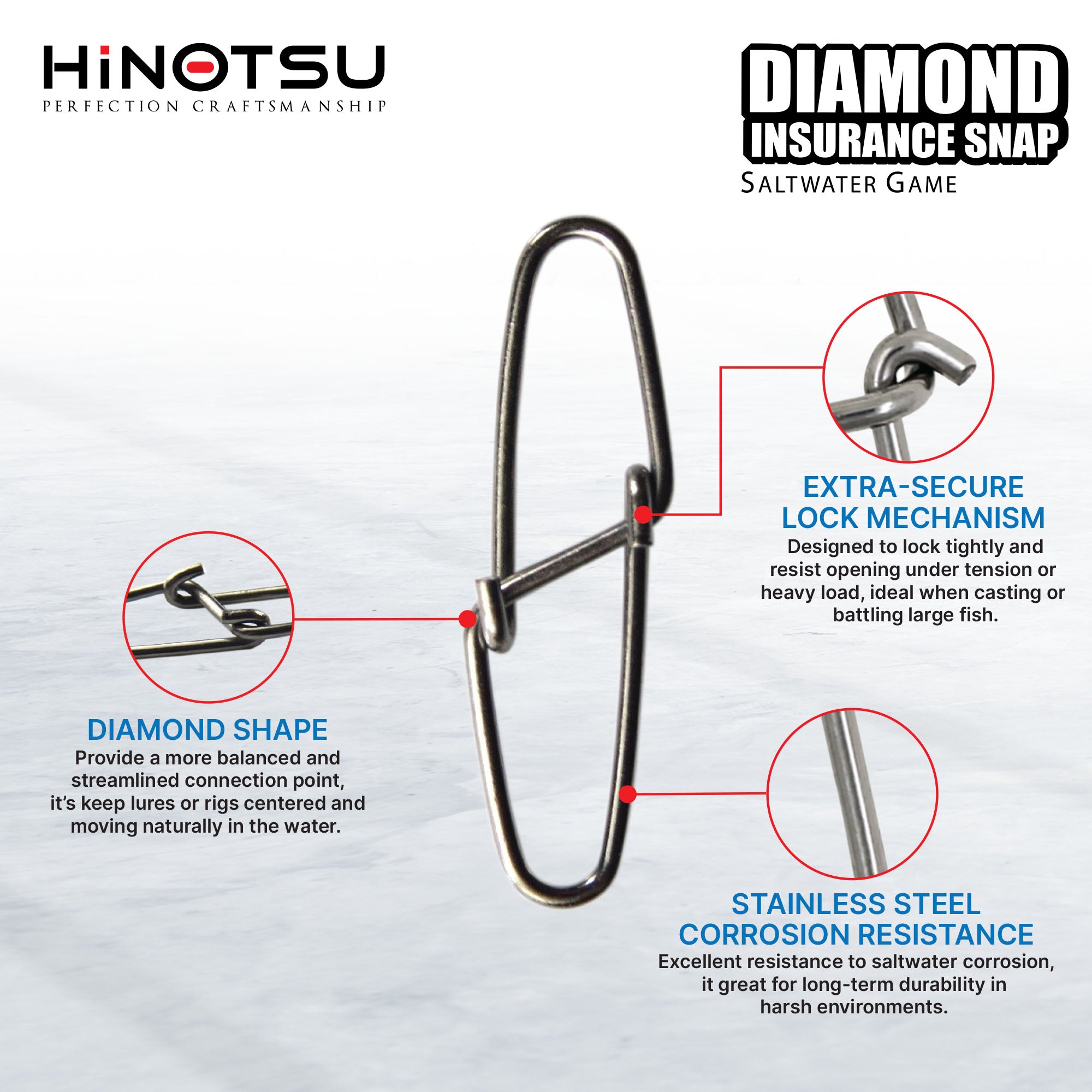

• Interlocking insurance-style closure helps prevent accidental opening under tension or heavy load
• Diamond-shaped construction gives a streamlined, balanced connection that keeps terminal tackle centred
• Stainless-steel material for durability, spring tension and corrosion resistance
• Compact and lightweight; adds minimal bulk between leader and terminal tackle

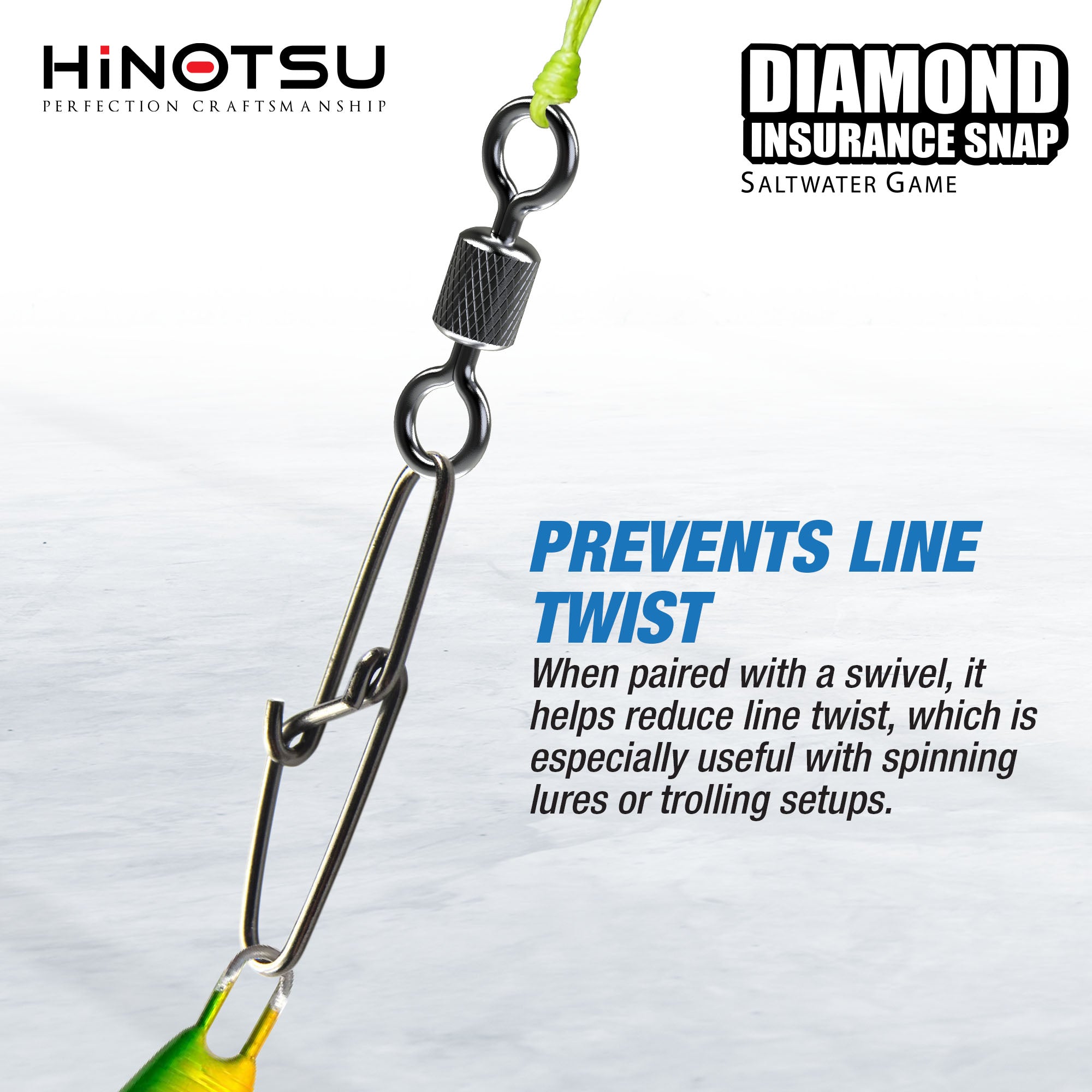

• Swivel compatible — pair with a swivel to reduce line twist from rotating lures and trolling rigs

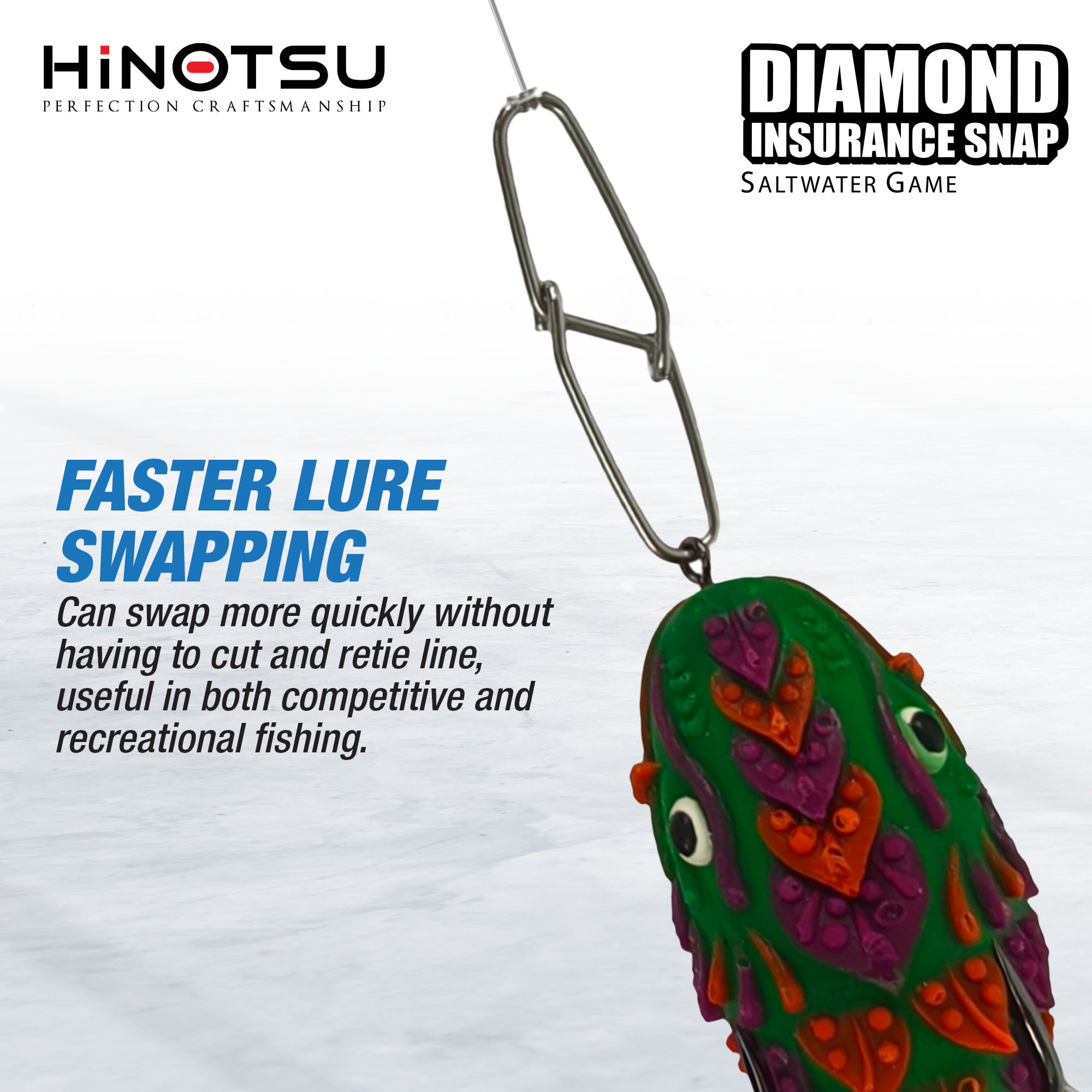

• Fast changes of lures, jigs, sinkers and rigs without cutting and retying the line

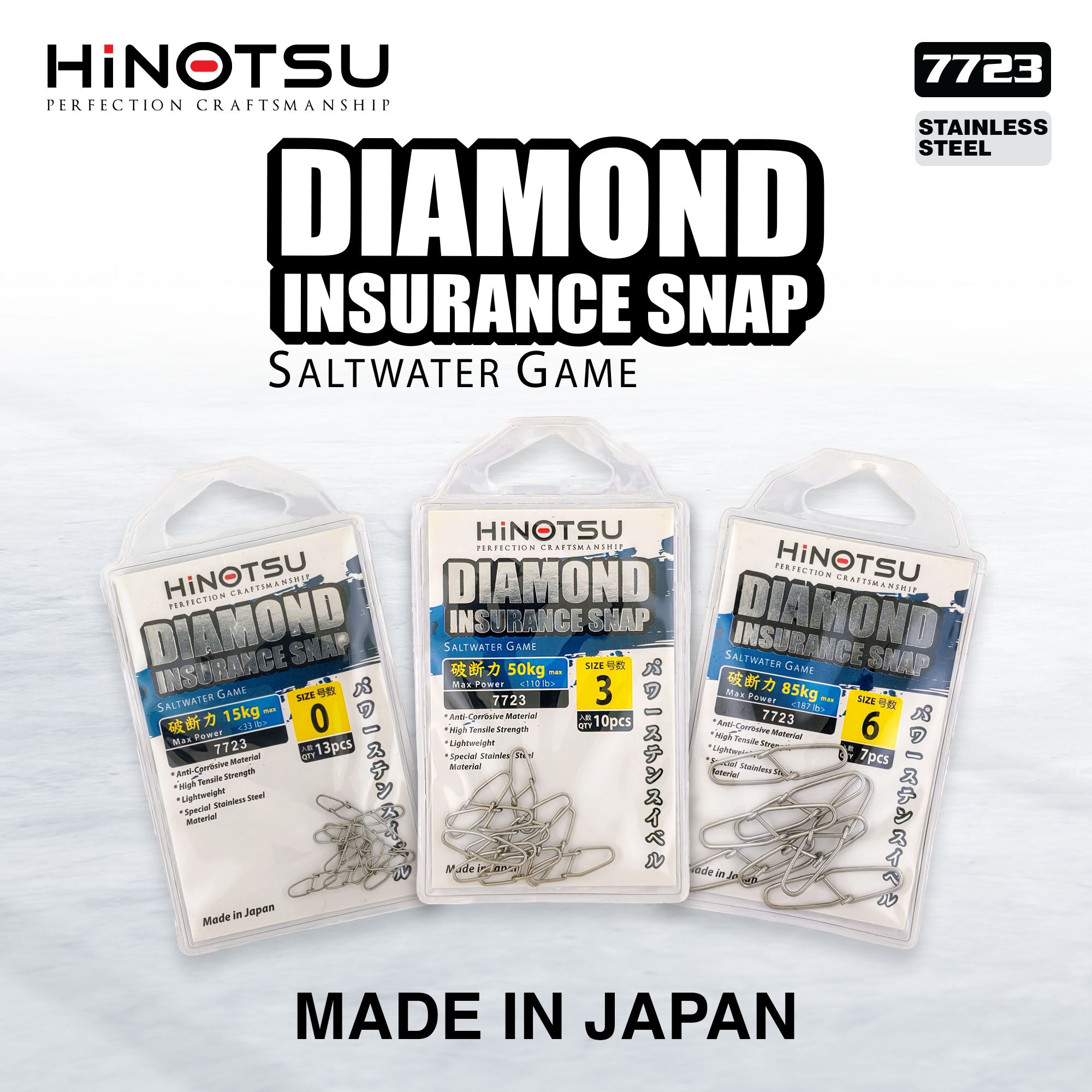

• Seven sizes, #0 to #6, from light tackle to heavy saltwater applications

How To Rig It

• Where it goes in the rig — Tie the leader to the closed apex of the diamond with a uni or improved clinch and clip the lure, jig eye or split ring into the gate at the wide end. On rigs that rotate, run leader to a swivel and hang the snap below it, or use the 7713 rolling swivel with safety snap.
• Working the double lock — Open it deliberately: release the outer catch first, then swing the wire clear. Close it the same way and pull the lure sideways against the closure before you cast. If the second catch no longer engages, the snap is done.

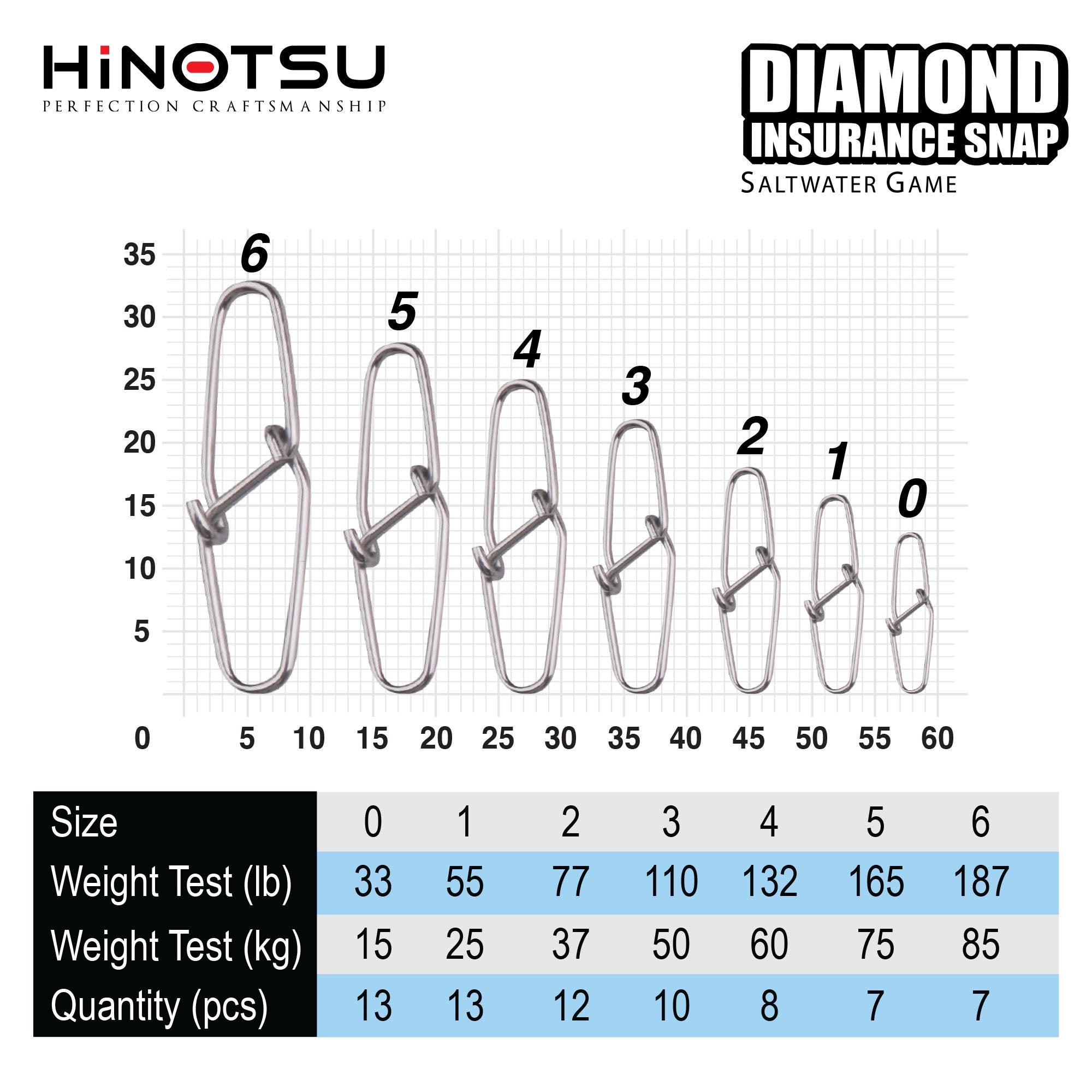

• Matching size to tackle — #0 to #2 for light spinning and estuary work with small hard baits and jig heads; #3 and #4 for casting metals, medium jigs and inshore boat fishing; #5 and #6 for heavy leaders, large jigs and reef work where the drag is set high.
• When the snap becomes the weakest link — This series is sold by size, not by a printed lb rating. Around wrecks, bommies and mangrove roots the snap is the one component being levered while a fish is being turned, which is why the second lock exists. Where you need a stated breaking strength on a metal jig, the SP-1 jig snap 7719 is listed at 180 lb (S) and 230 lb (M).
• Rinse in fresh water after saltwater use — Salt crystallises in the interlock and stops the second catch seating. Rinse and dry the terminal set after every trip, and retire any snap with rust bloom at the closure or a lock that has been sprung by a hard fight.

Specifications

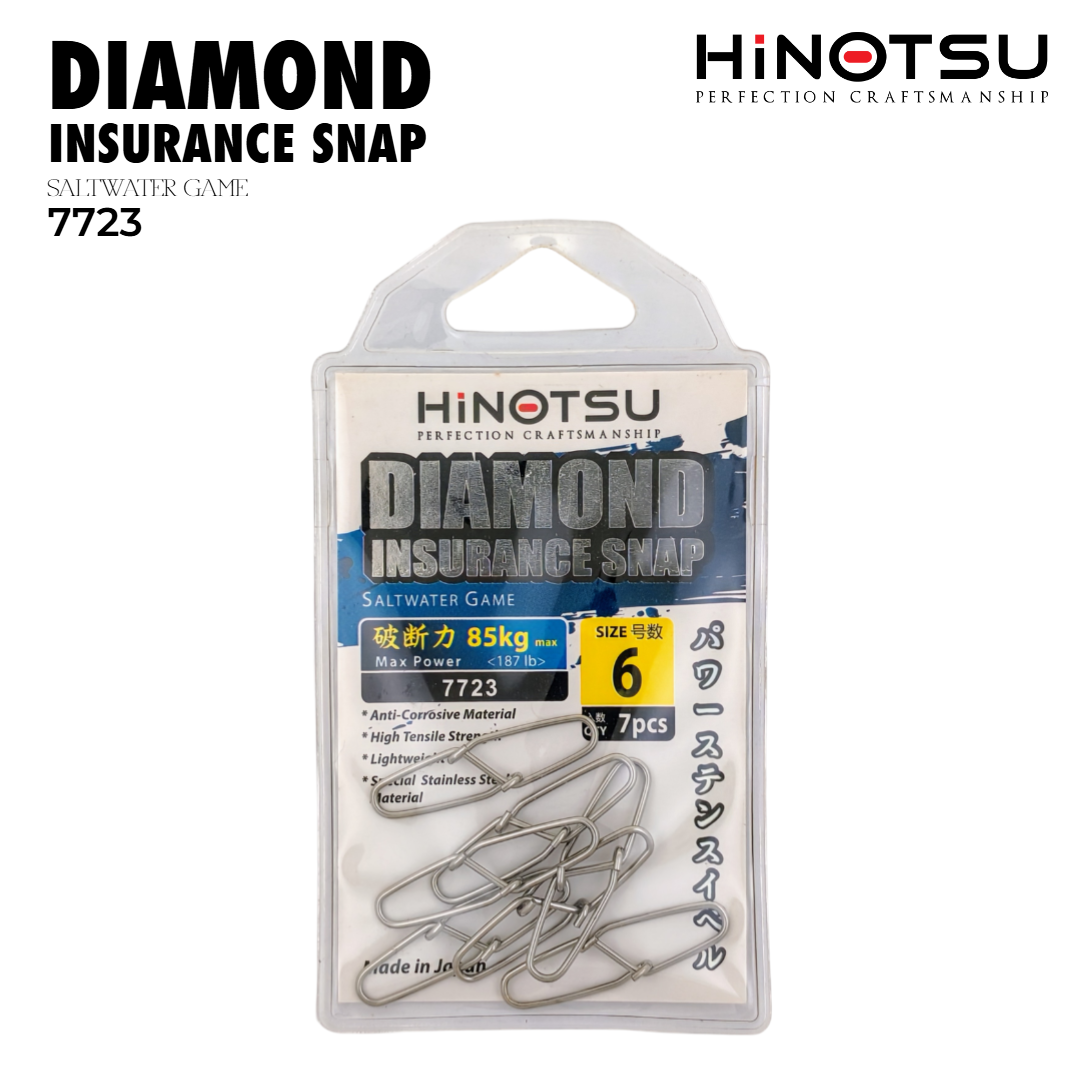

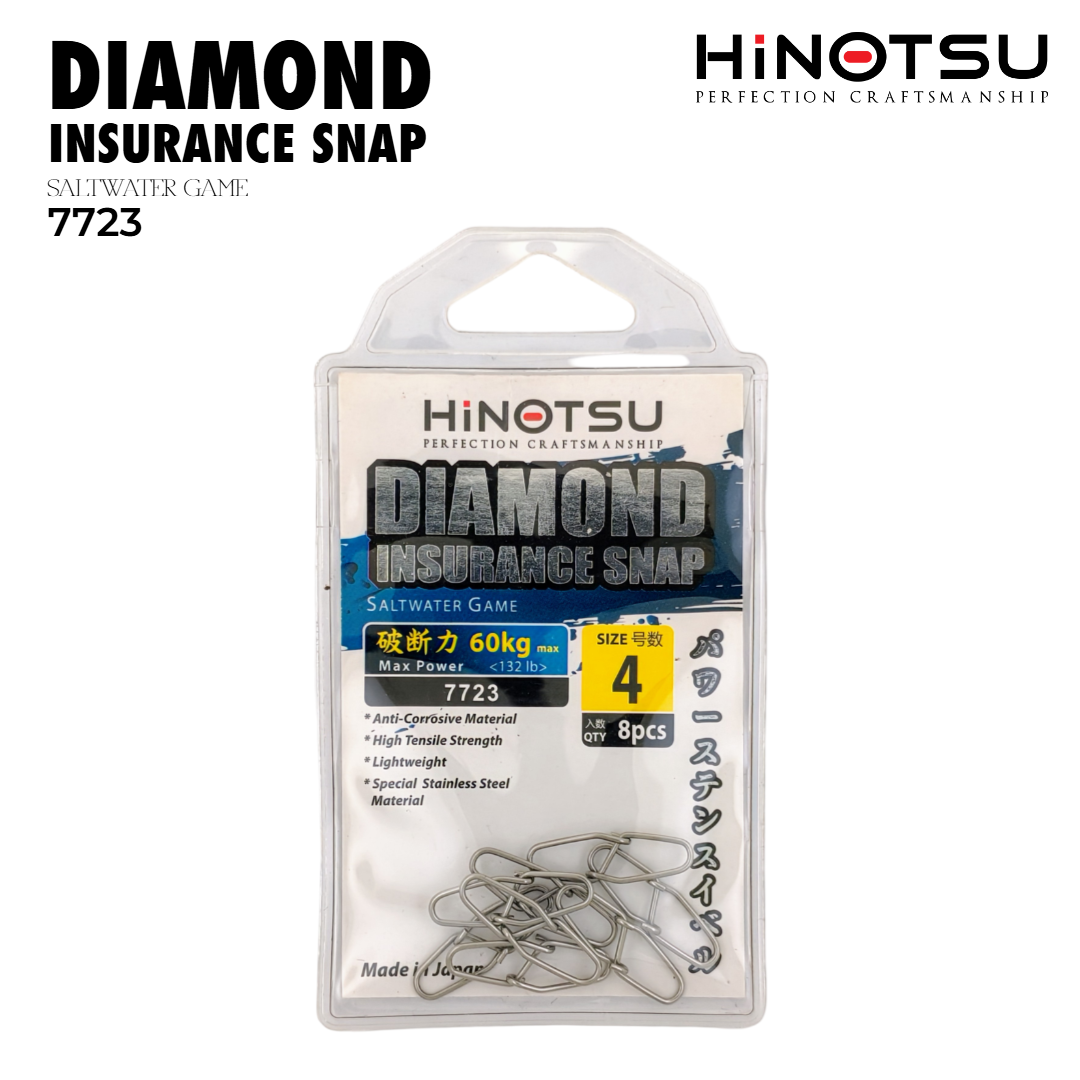

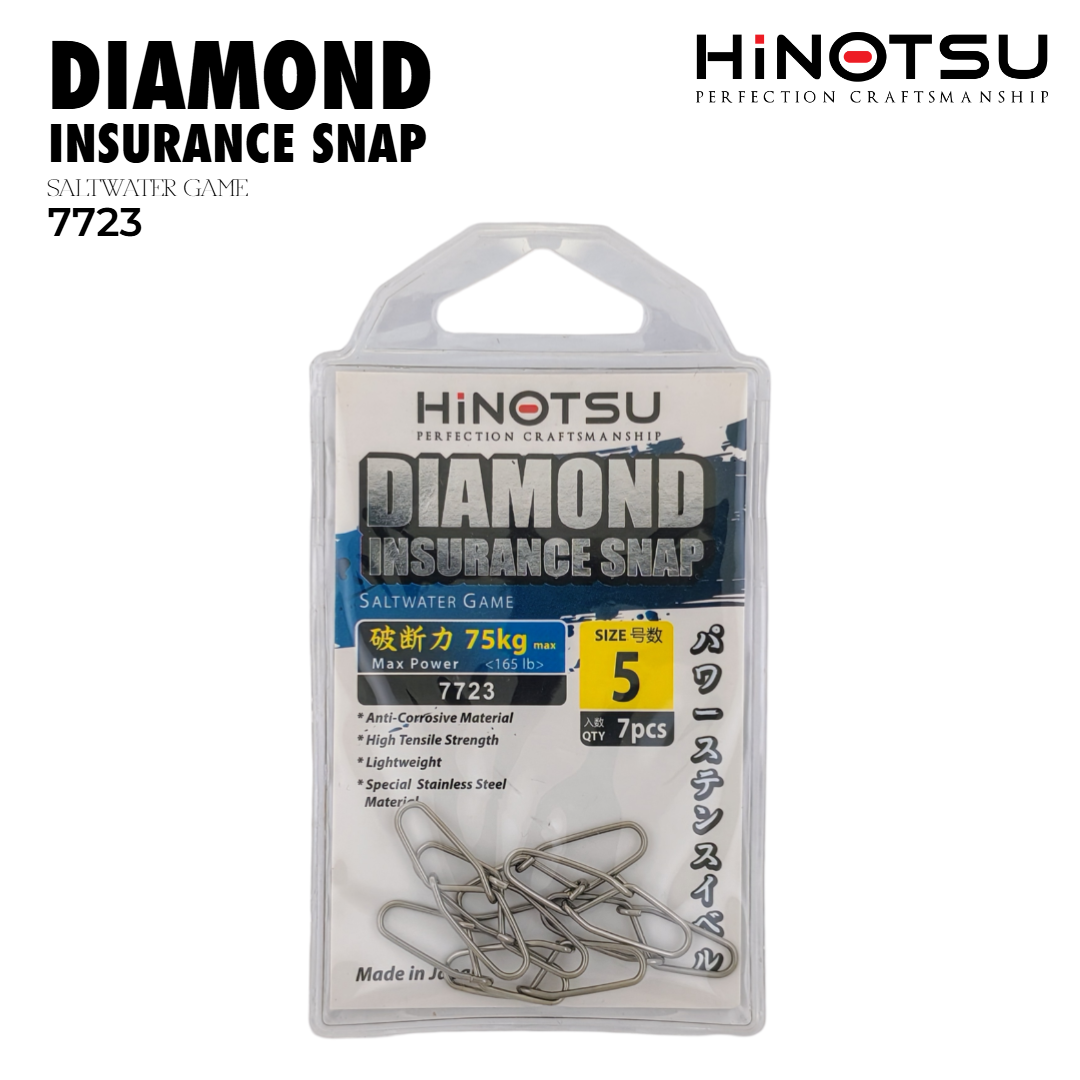

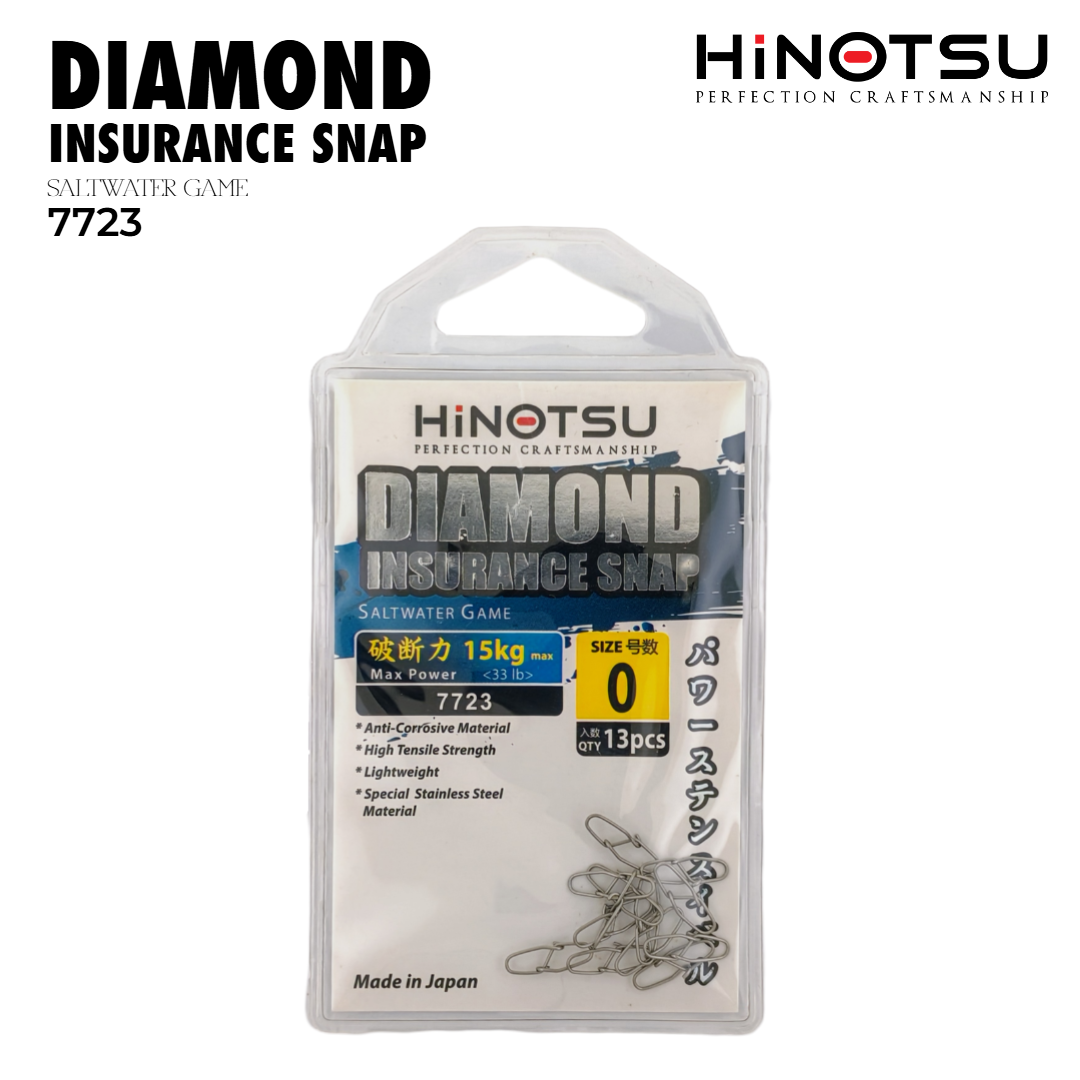

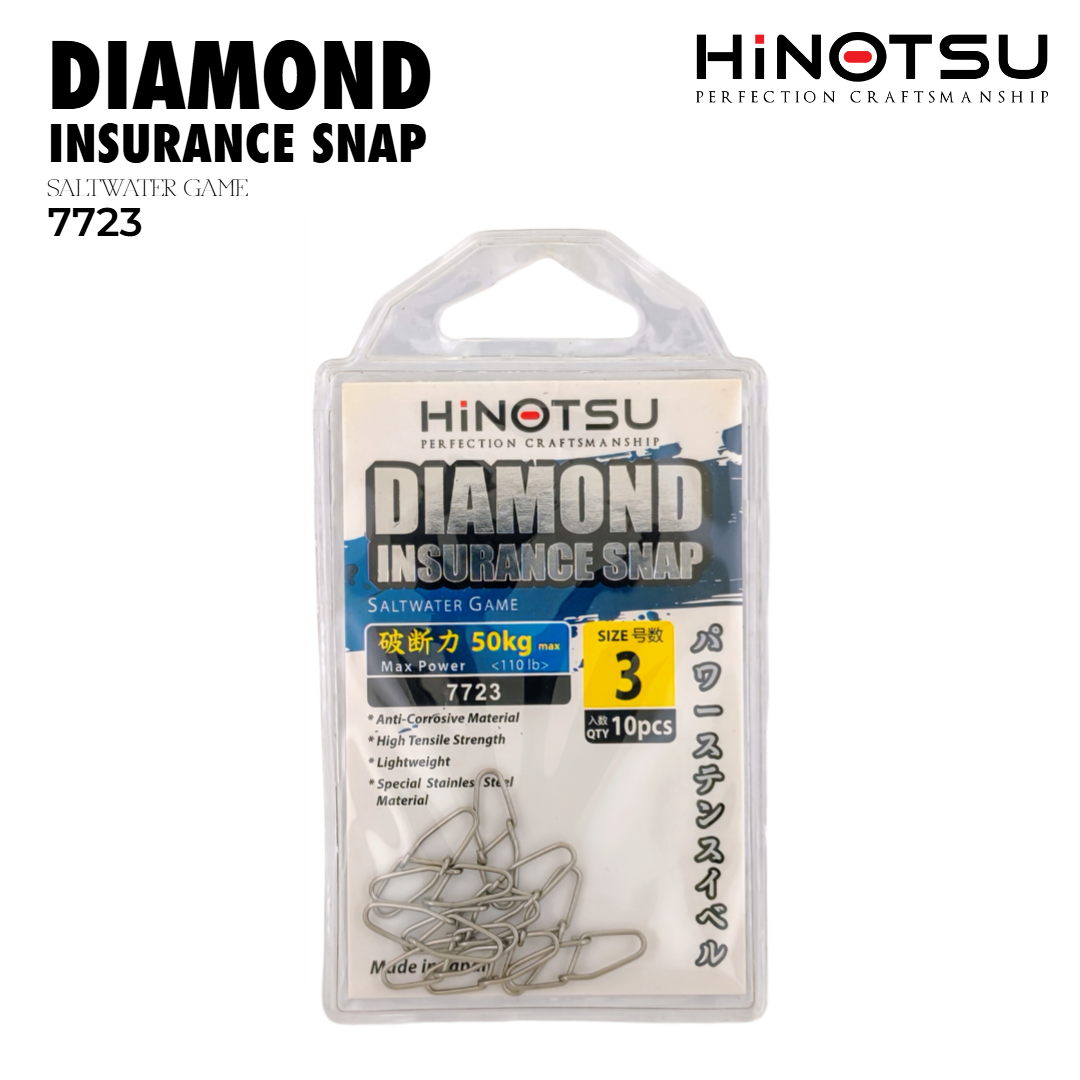

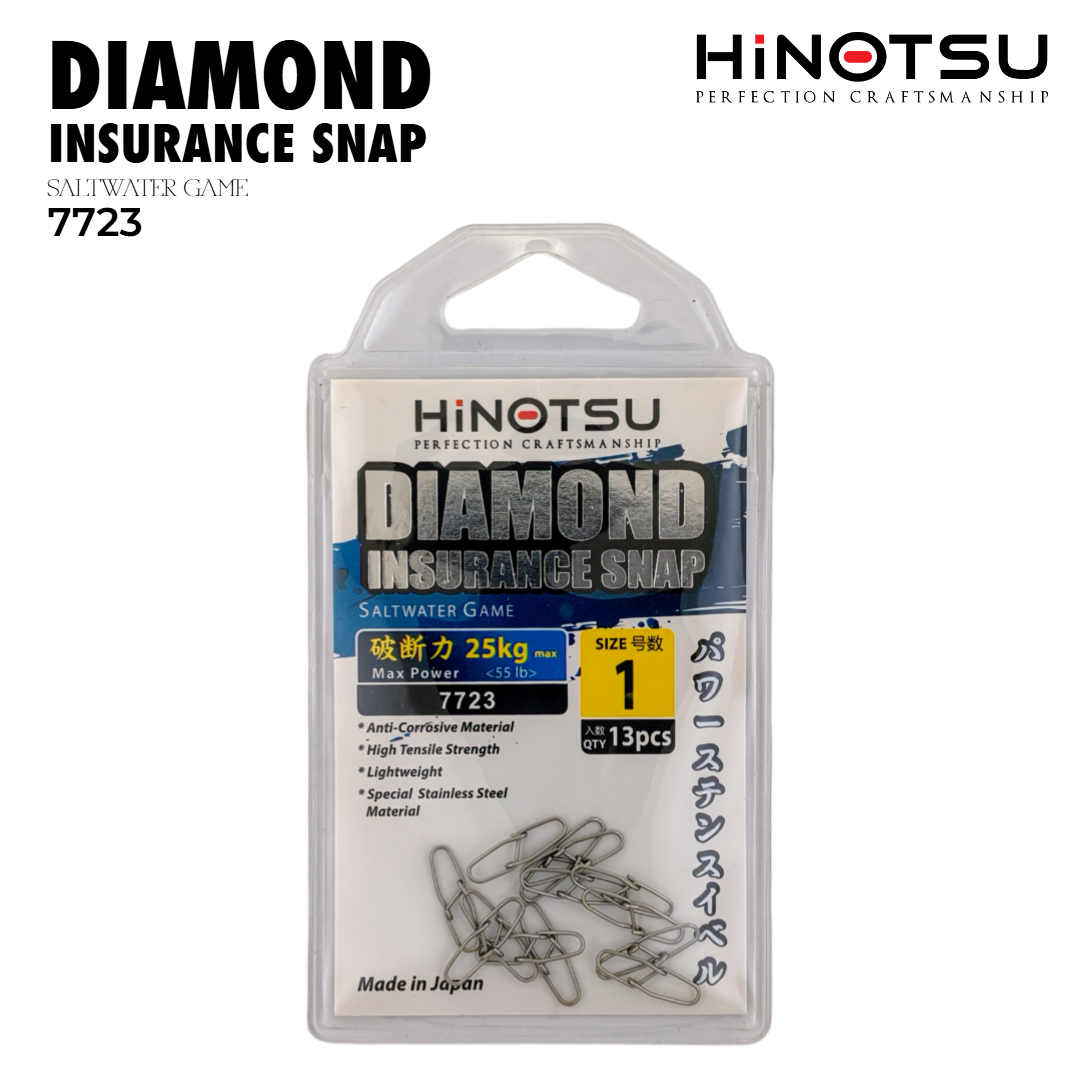

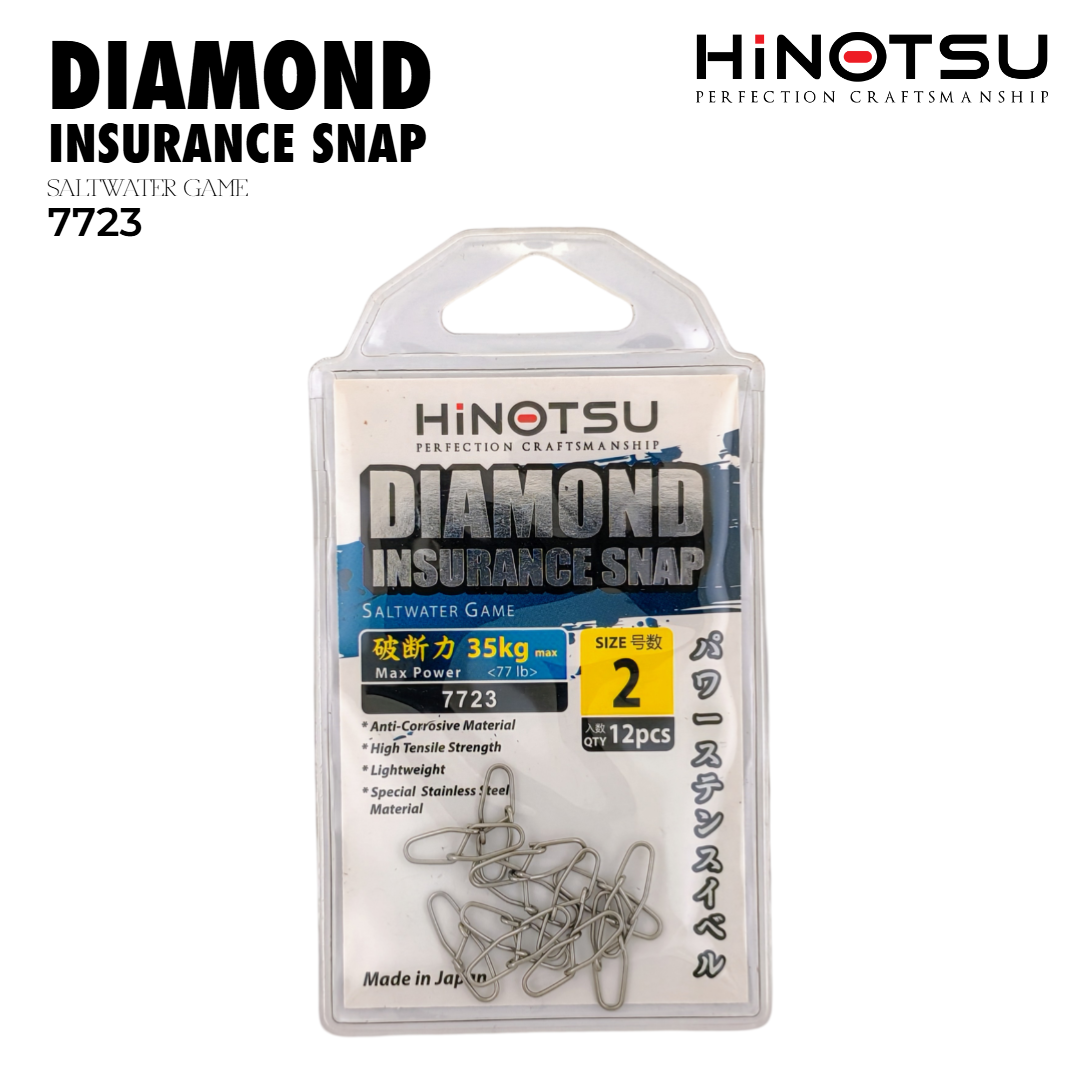

Available sizes: #0, #1, #2, #3, #4, #5, #6. SKU prefix 7723.

Recommended Pairing

• Small sizes: light and medium spinning outfits with 2500–4000 reels and fluorocarbon leader
• Large sizes: jigging, popping and heavy casting rods in the PE 3–6 class with 6000–14000 reels
• Braided main line joined to a heavy fluorocarbon or nylon leader with an FG or PR knot
• Pair with a rolling or ball-bearing swivel above the snap when the lure rotates, and with a solid ring when running assist hooks
