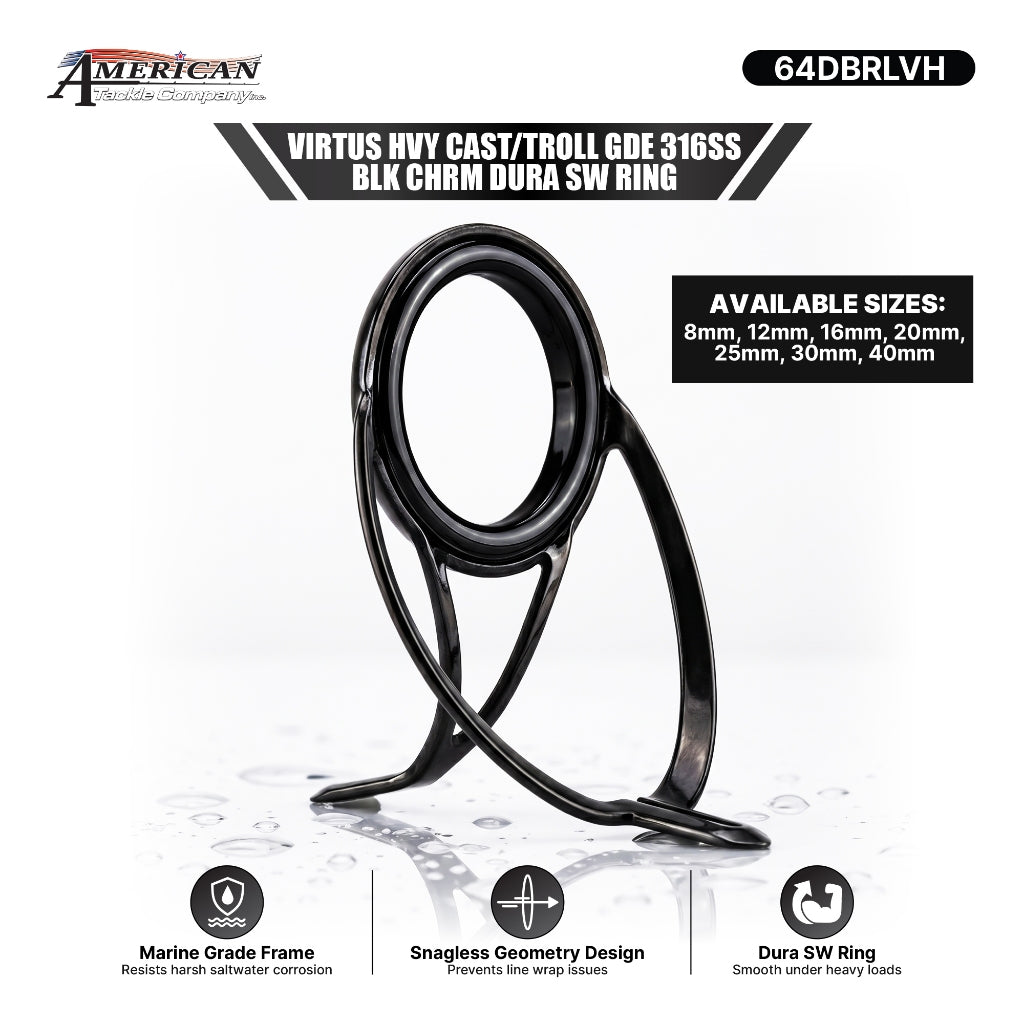

American Tackle Virtus Heavy Cast/Troll Guide 316SS 64DBRLVH Black Chrome Dura SW Ring

The Virtus Heavy sits a class above the A frame Ring Lock guides listed alongside it. Those shrug off lateral twist on casting and boat blanks; this one is designated a cast/troll guide — sustained drag pressure with the rod bent in a holder for hours, not the short violent load of a cast. Two things mark it out. The frame is 316 stainless, the marine grade of the alloy, in black chrome. The ring is a Dura SW, SW standing for saltwater ring, the specification American Tackle assigns to its salt-exposed builds. The size ladder says the same thing: 8 mm up to 40 mm, a larger top end than any A frame model, which stop at 30 mm. For the lighter end of the Virtus line, use the Virtus Lite 64DCRLVL; the two are meant to be chosen against each other rather than mixed on one blank.

Key Features

• Heavy cast/troll guide — built for sustained drag load, not just casting

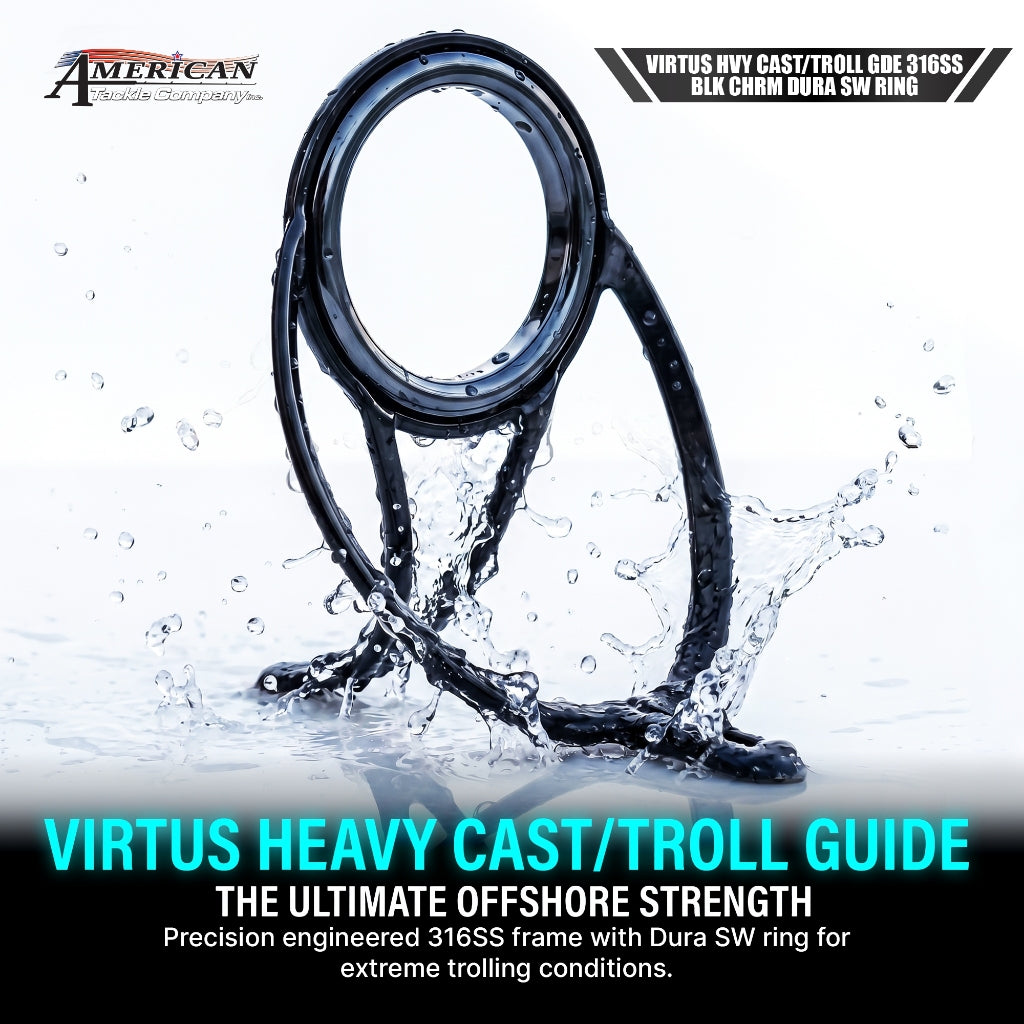

• 316 stainless frame, marine-grade alloy, in a black chrome finish

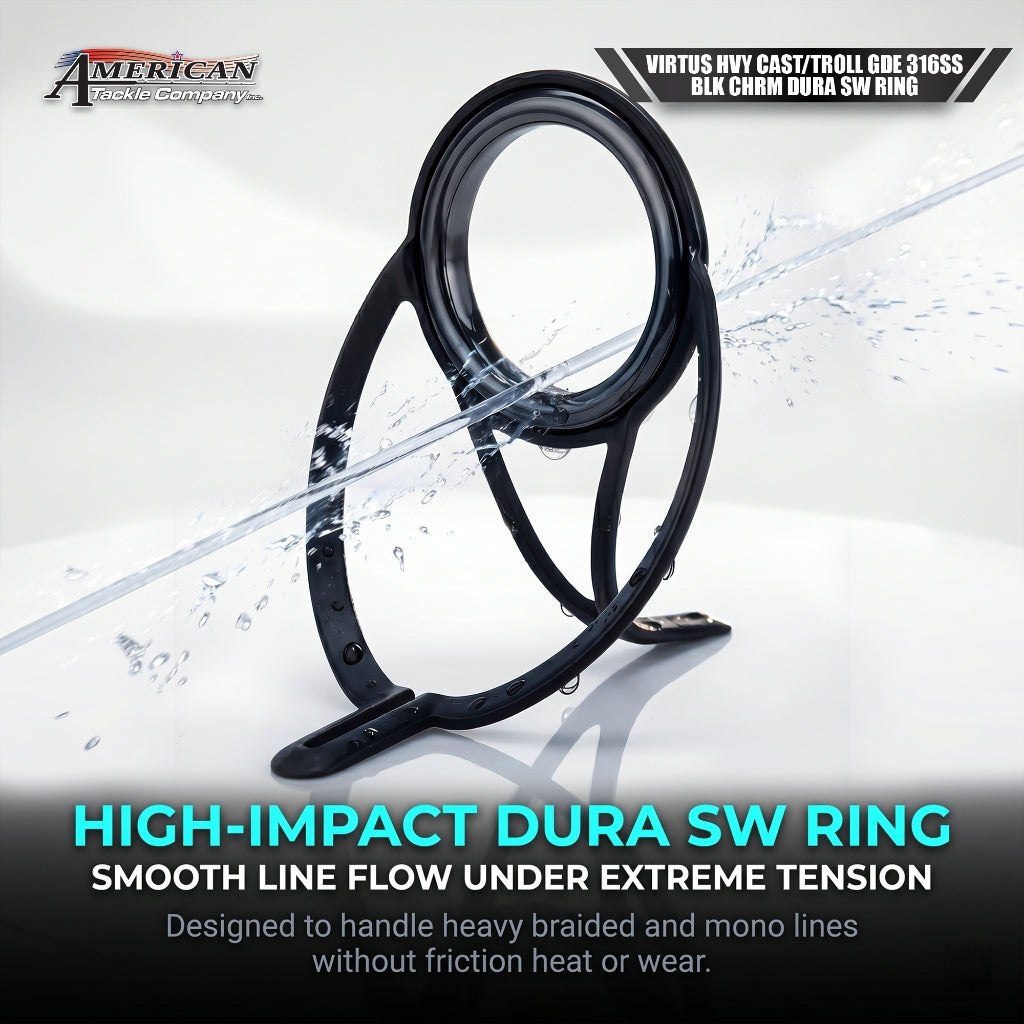

• Dura SW (saltwater) ring specification

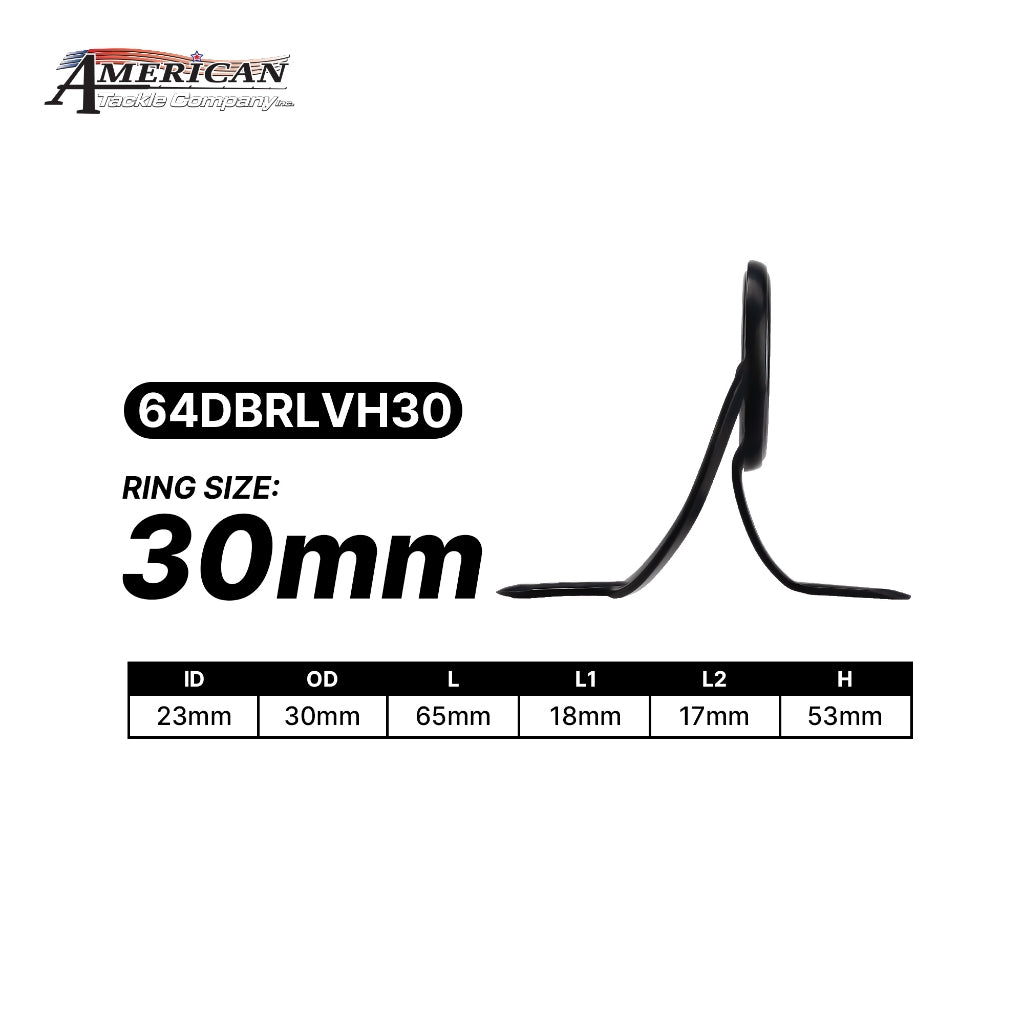

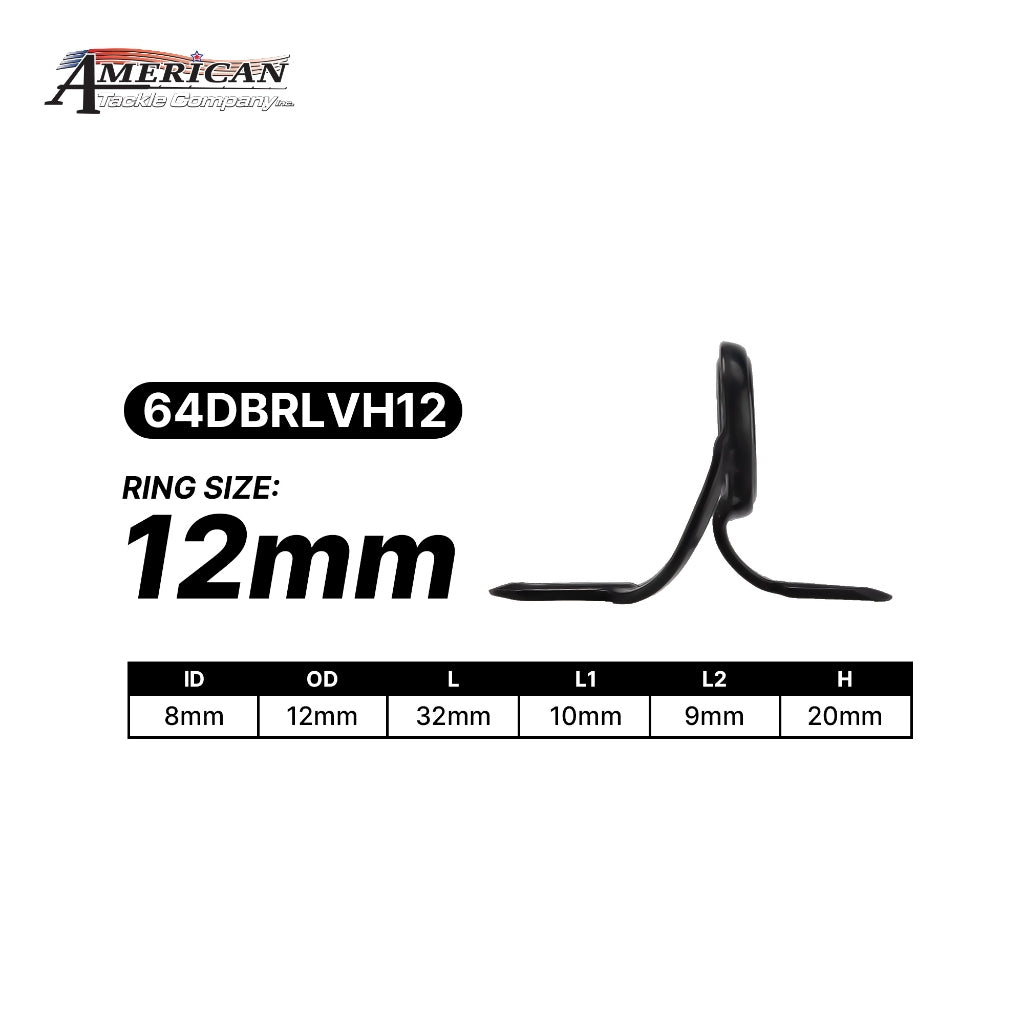

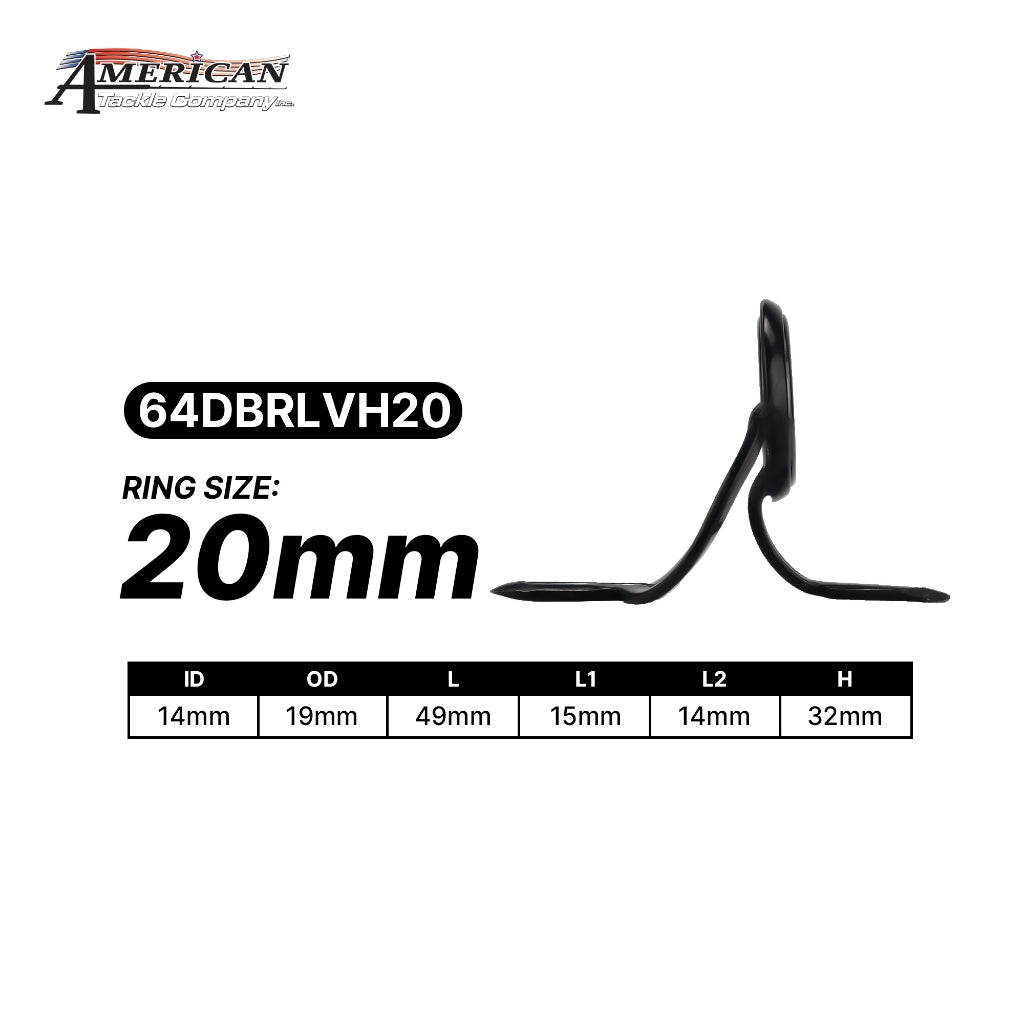

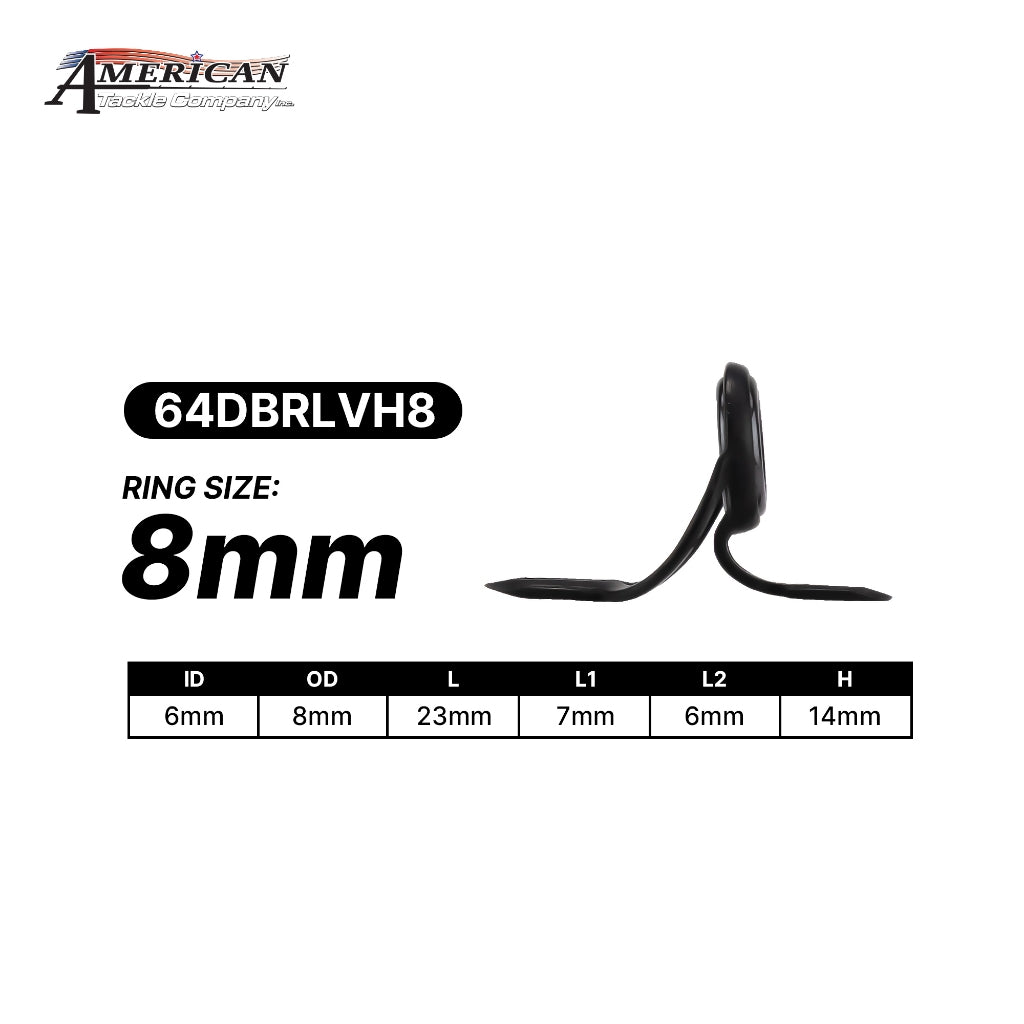

• Seven ring sizes: 8, 12, 16, 20, 25, 30 and 40 mm
• 40 mm top size exceeds the 30 mm ceiling of the A frame Ring Lock guides
• Model 64DBRLVH, sold as individual guides, SKUs coded by ring size

How To Build With It

• Troll layouts are not casting layouts — A troll rod needs guides placed to keep line off the blank under a long static bend, with a big first guide close to the reel. Space to the loaded curve, not the unloaded one.

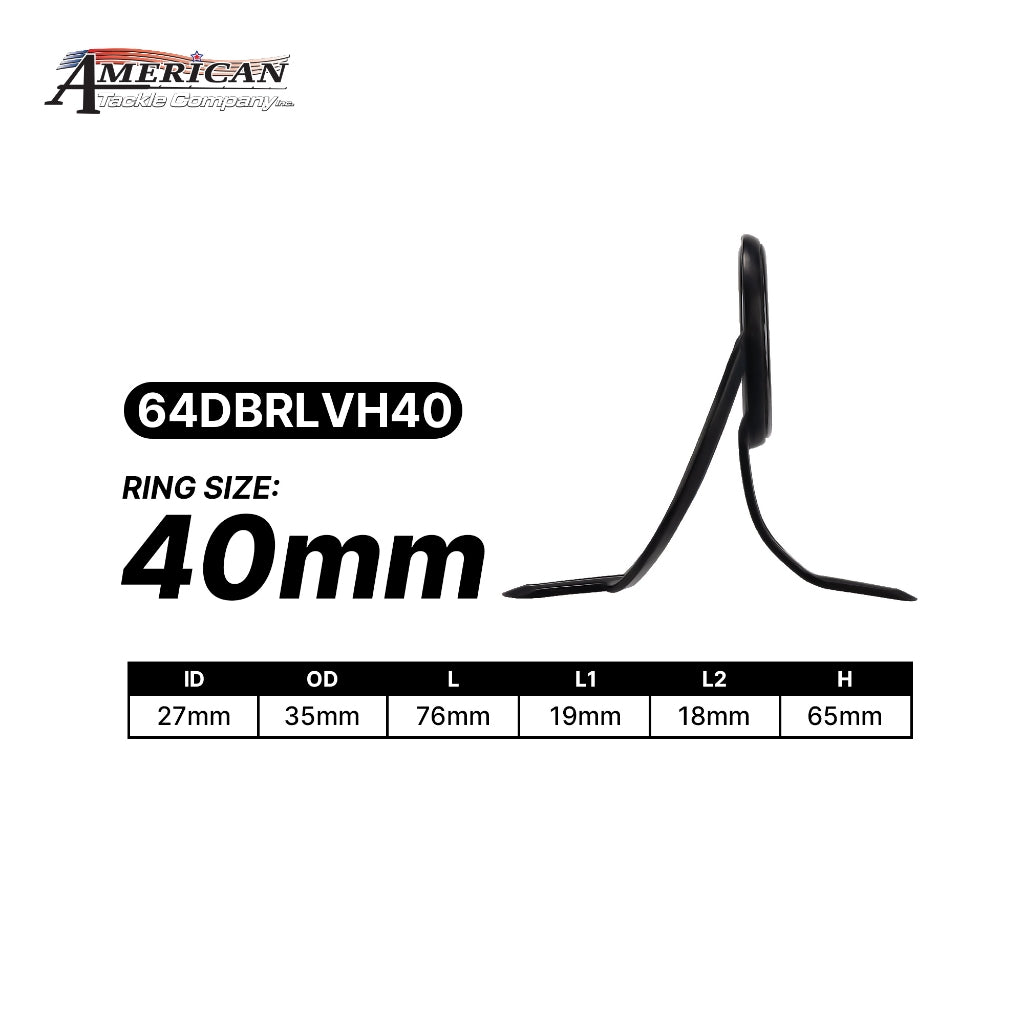

• Sizing the 40 mm — The 40 mm belongs at the stripper on overhead and stand-up builds where line leaves a large spool at a steep angle. On lighter rods a 30 or 25 mm stripper is enough.
• Feet for heavy wraps — File both feet to a long thin taper, dry-fit and check for rocking, then wrap in size D or size A thread, burnishing hard before the epoxy goes on.
• Salt discipline — 316 and an SW ring buy margin, not immunity. Rinse the whole train after every trip and dry the rod out of its tube.

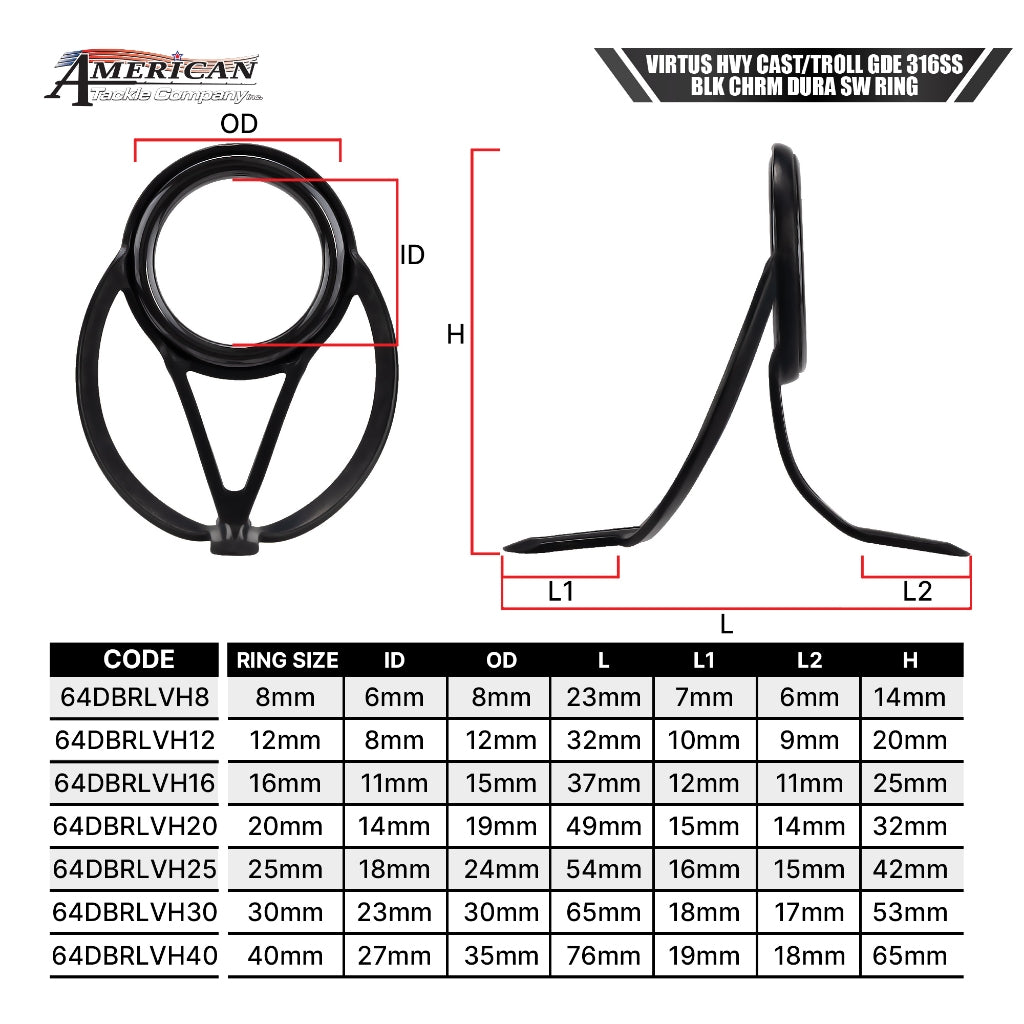

Specifications

Dura SW ring in a black chrome 316 stainless frame, all seven sizes. Sold as individual guides.

Recommended Pairing

• Heavy cast, troll and stand-up blanks; lever drag or star drag overheads in the 20 to 50 class
• PE 4 to PE 10 braid or 30 to 80 lb monofilament, with a heavy fluorocarbon or nylon leader
• Size A or size D thread depending on blank diameter, plus two-part rod-building epoxy
• For lighter casting and light boat builds in the same series, use the Virtus Lite 64DCRLVL
