AMERICAN TACKLE - TITANIUM SINGLE FOOT A FRAME GUIDE 64NIA FISHING ROD GUIDE
American Tackle Titanium Single Foot A Frame Guide 64NIA

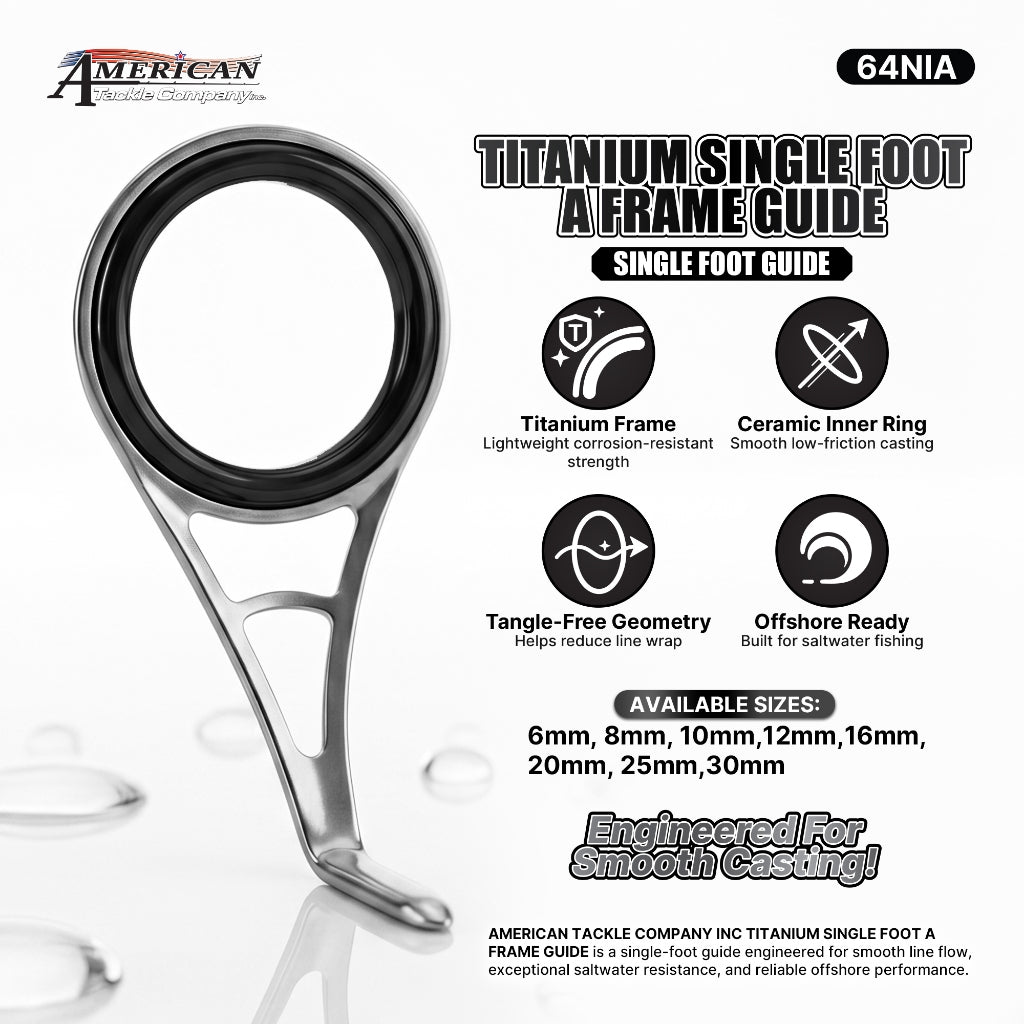

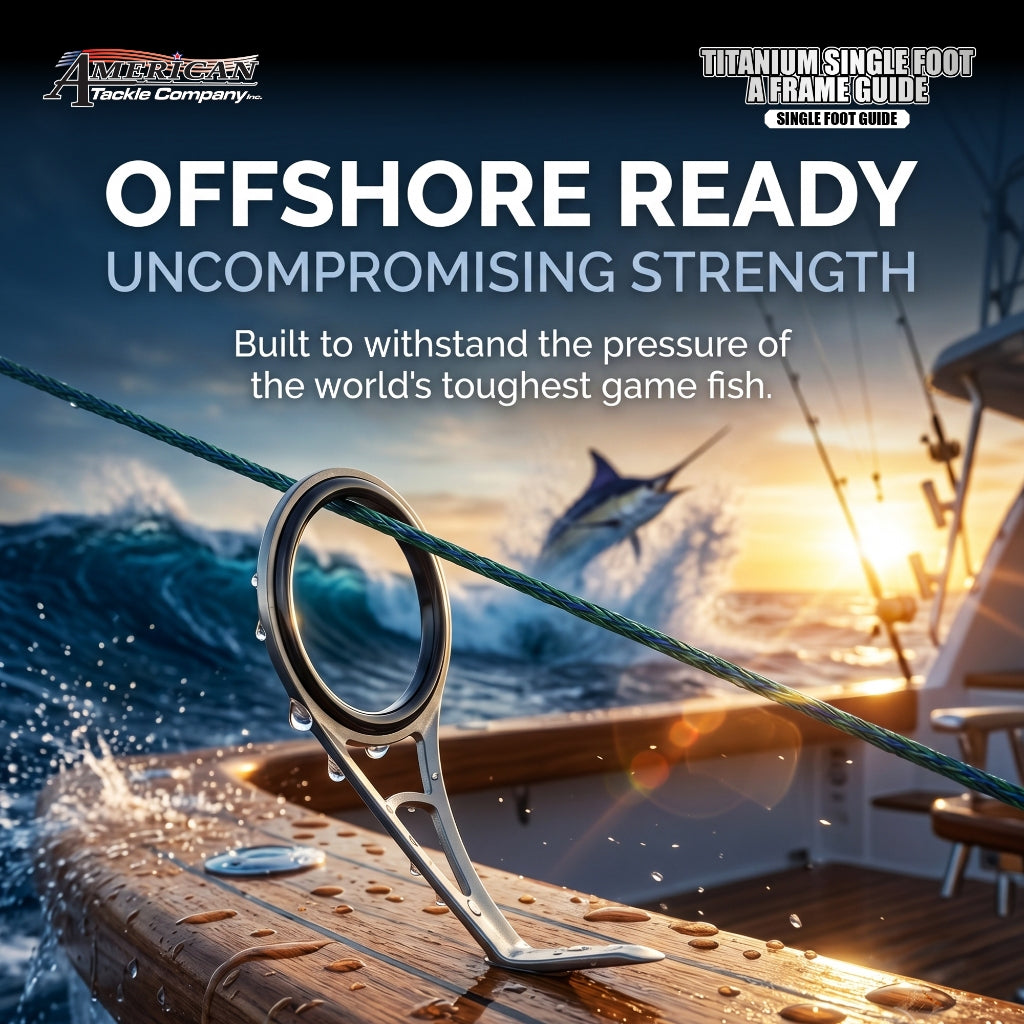

The 64NIA is the lightweight end of the 64 series: a titanium A-frame guide on a single foot, sold individually across the widest ladder in the range, eight sizes from 6 mm all the way to 30 mm. Two decisions define it. A single foot bonds to the blank at one point instead of two, halving wrap length, cutting weight and leaving more of the blank free to flex — the reason single-foot trains are standard on finesse and light game builds. The A frame then arches over the ring and ties the frame back to that single foot, bracing it against the sideways twist that folds a plain single-foot guide. Titanium is light for its strength and does not corrode in salt the way stainless eventually does, which is what makes a 25 or 30 mm single-foot stripper practical on a saltwater spinning build.
Key Features

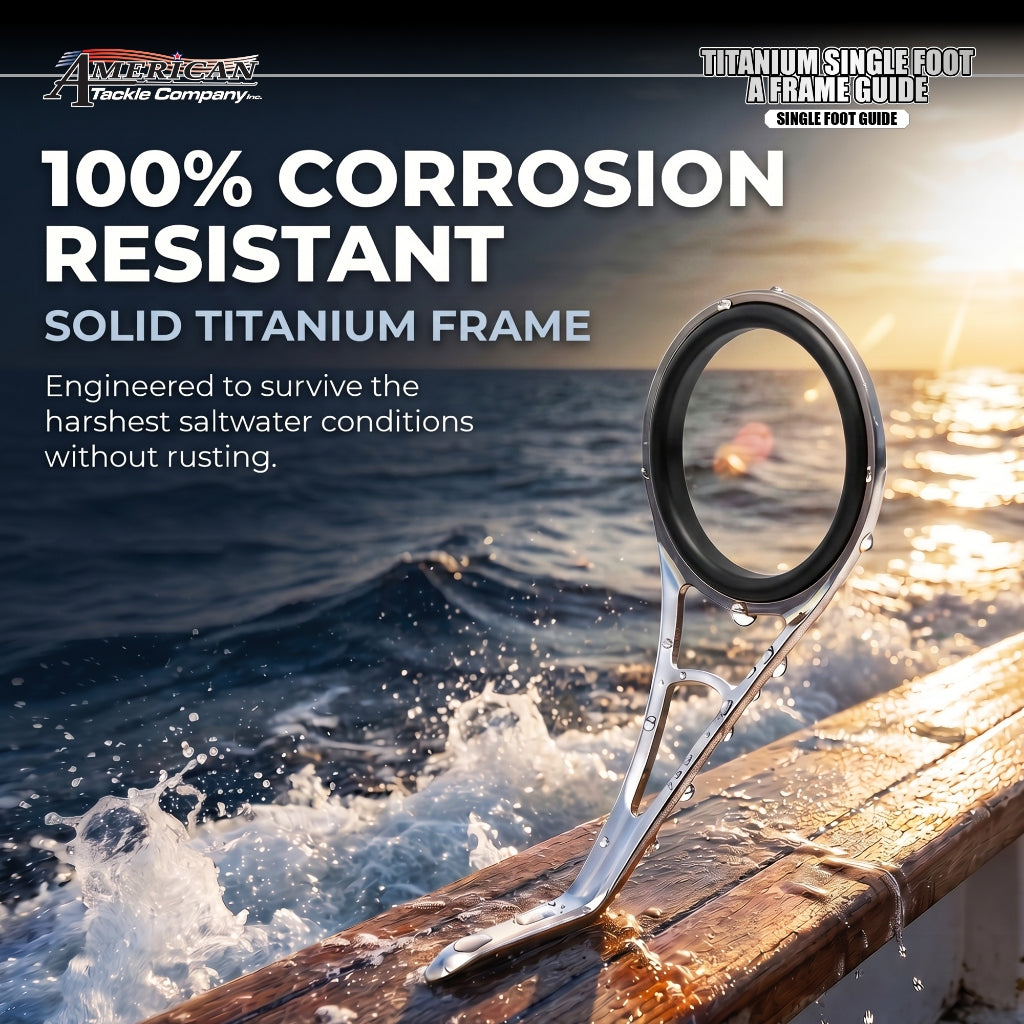

- Titanium frame, corrosion resistant for saltwater use
- A-frame geometry bracing the ring against lateral load
- Single foot: one wrap per guide, less weight and less blank stiffening
- Widest ladder in the 64 series, eight sizes from 6 mm to 30 mm
- Model 64NIA, with SKUs coded by ring size
How To Build With It
- Single-foot spinning train — Set the 30 mm or 25 mm at the reel to collect the spool cone, then reduce fast through 20, 16 and 12 mm before running 10, 8 and 6 mm to the tip.
- Wrapping one foot properly — With one foot holding the guide, wrap length is everything: ramp the foot flat, start the thread behind the toe, and carry the wrap well past the foot before locking it.
- Aligning before the epoxy — Sight down the blank from the butt after each wrap. A single foot rotates more easily than a two-leg guide, and misalignment shows up as line slap on the cast.
- Finishing light — Two thin epoxy coats and size A thread. A titanium single-foot train exists to save mass out on the blank, and a heavy finish gives it straight back.

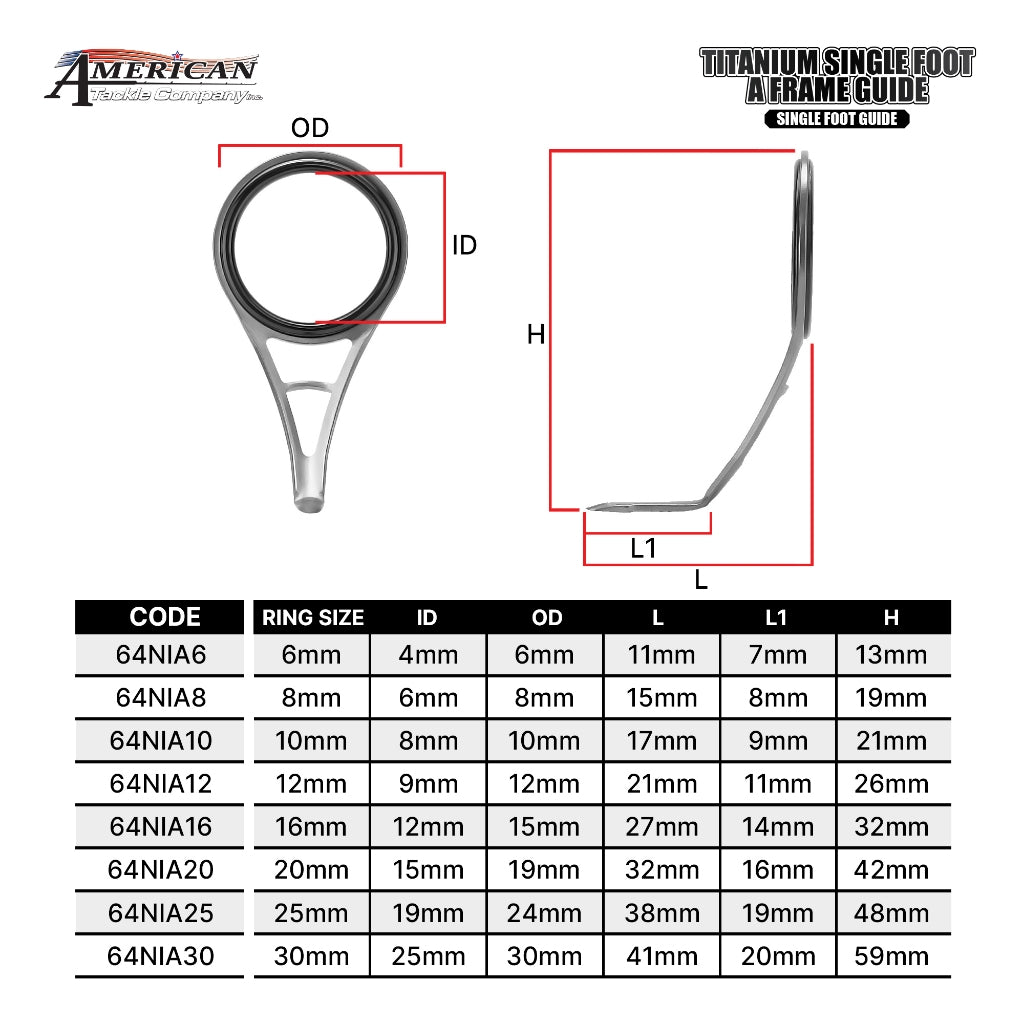

Specifications
| Ring Size | SKU | Typical Position |
|---|---|---|

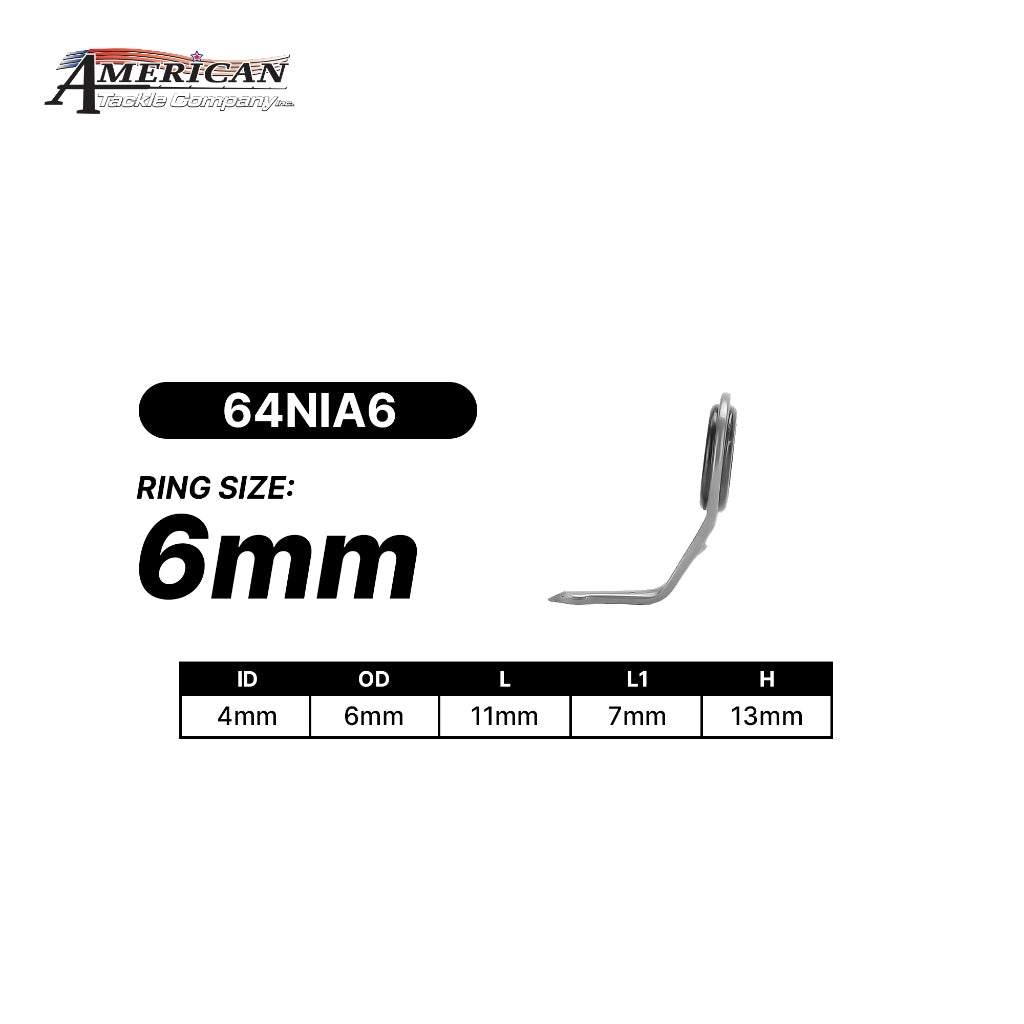

| 6 mm | 64NIA6 | Tip-end running guide |
| 8 mm | 64NIA8 | Running guide |
| 10 mm | 64NIA10 | Running guide |

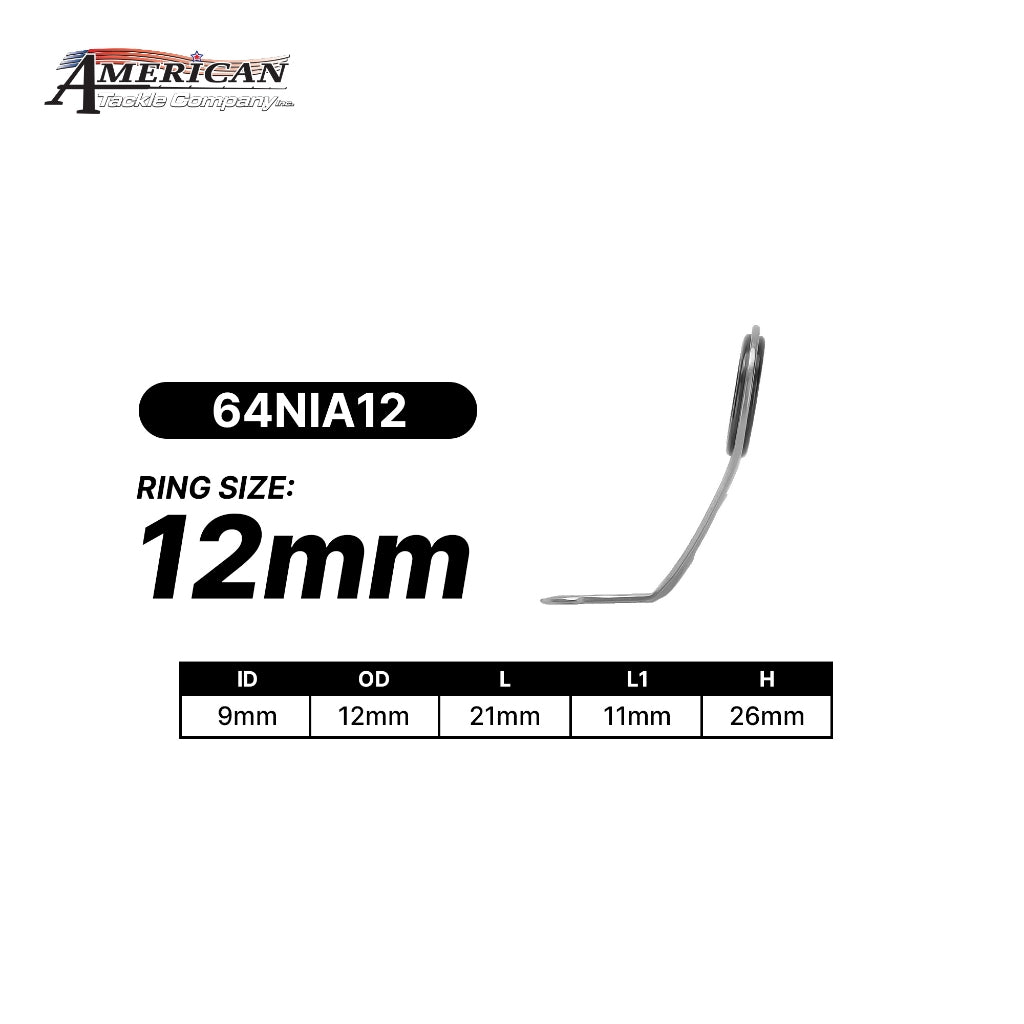

| 12 mm | 64NIA12 | Mid guide |

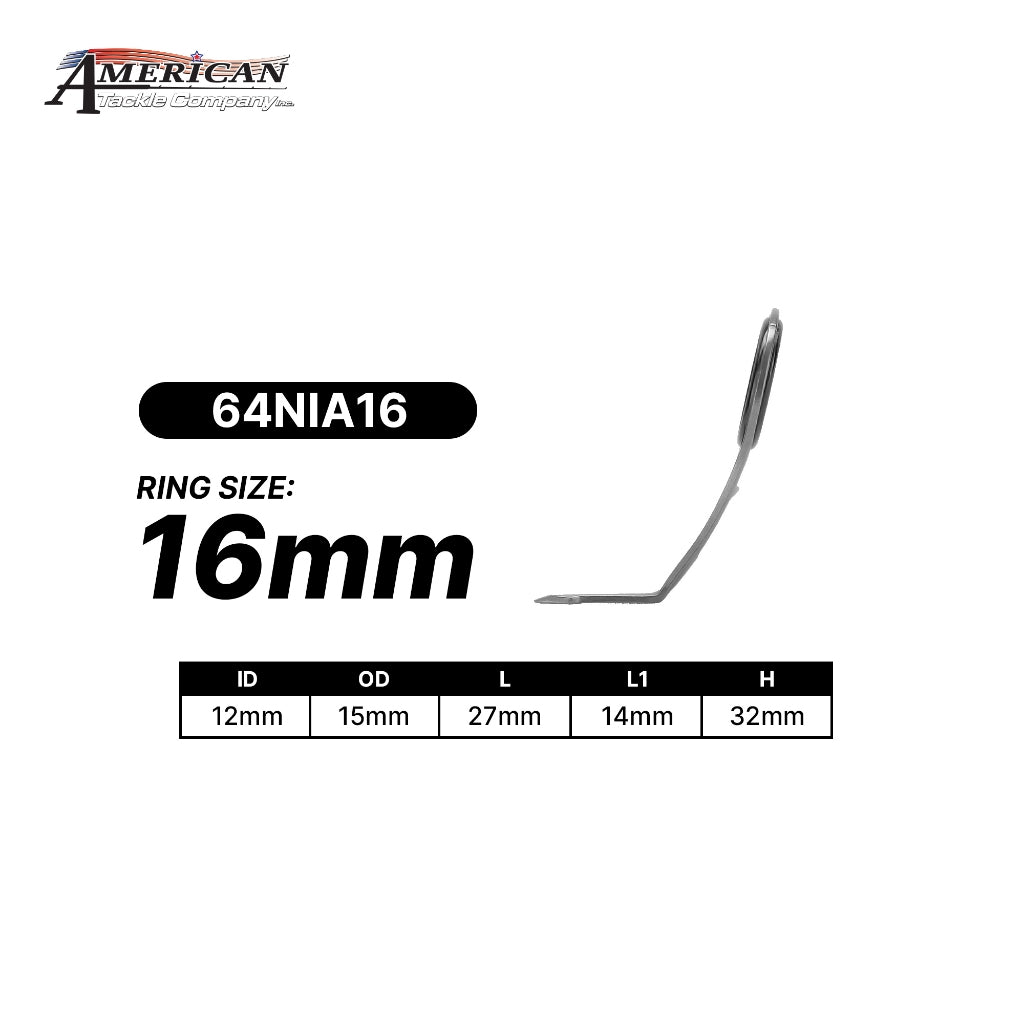

| 16 mm | 64NIA16 | Reduction guide |
| 20 mm | 64NIA20 | Reduction guide |

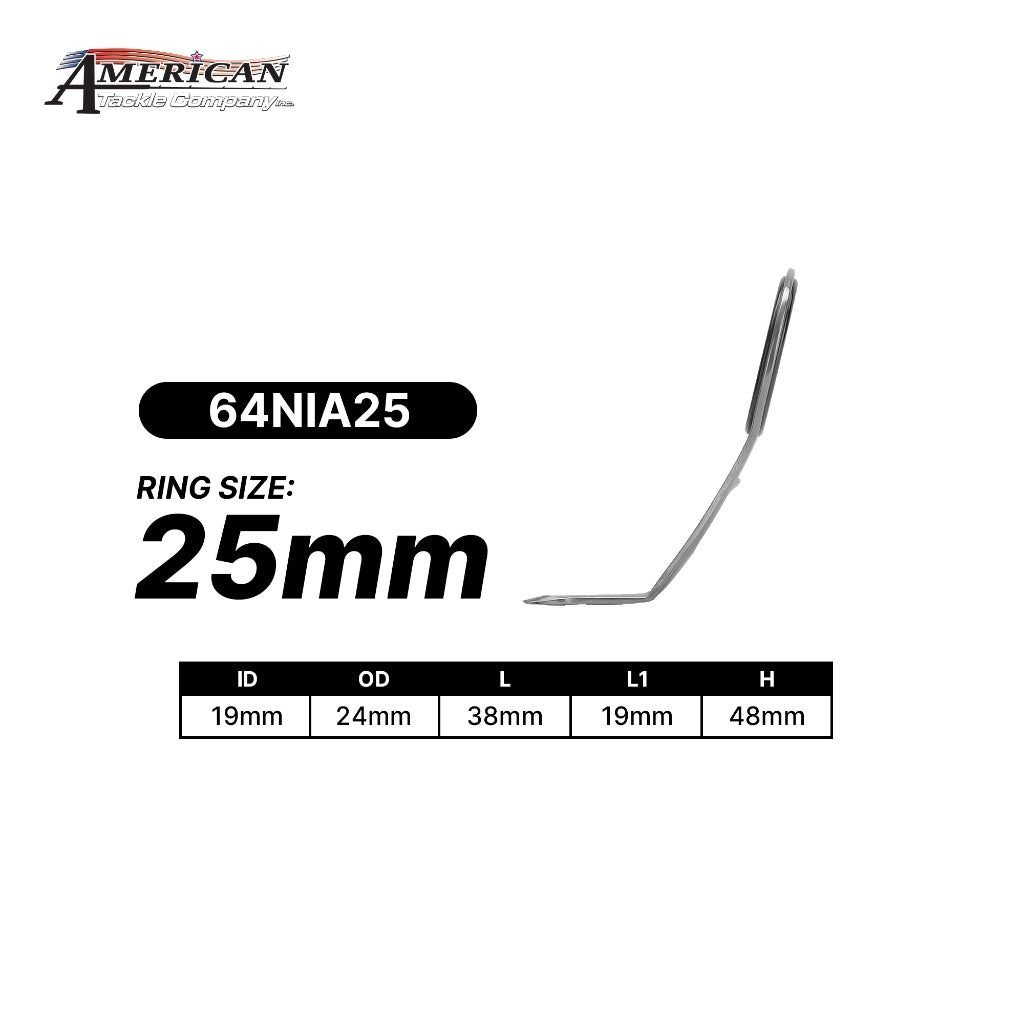

| 25 mm | 64NIA25 | Stripper guide |
| 30 mm | 64NIA30 | Stripper guide |
Sold as single guides across all eight sizes.
Recommended Pairing
- Light and medium spinning blanks with 1000–5000 size reels; the 25 and 30 mm suit larger shore-casting spools
- PE 0.3–2 braid with a 6–30 lb fluorocarbon leader
- Size A thread and two-part rod-building epoxy, with a single-foot tip top matched to the 6 mm guide
