AMERICAN TACKLE - TICH NANOLITE SS RING LOCK SPINNING GUIDE 64TTRLS FISHING ROD GUIDE

American Tackle TICH Nanolite SS Ring Lock Spinning Guide 64TTRLS

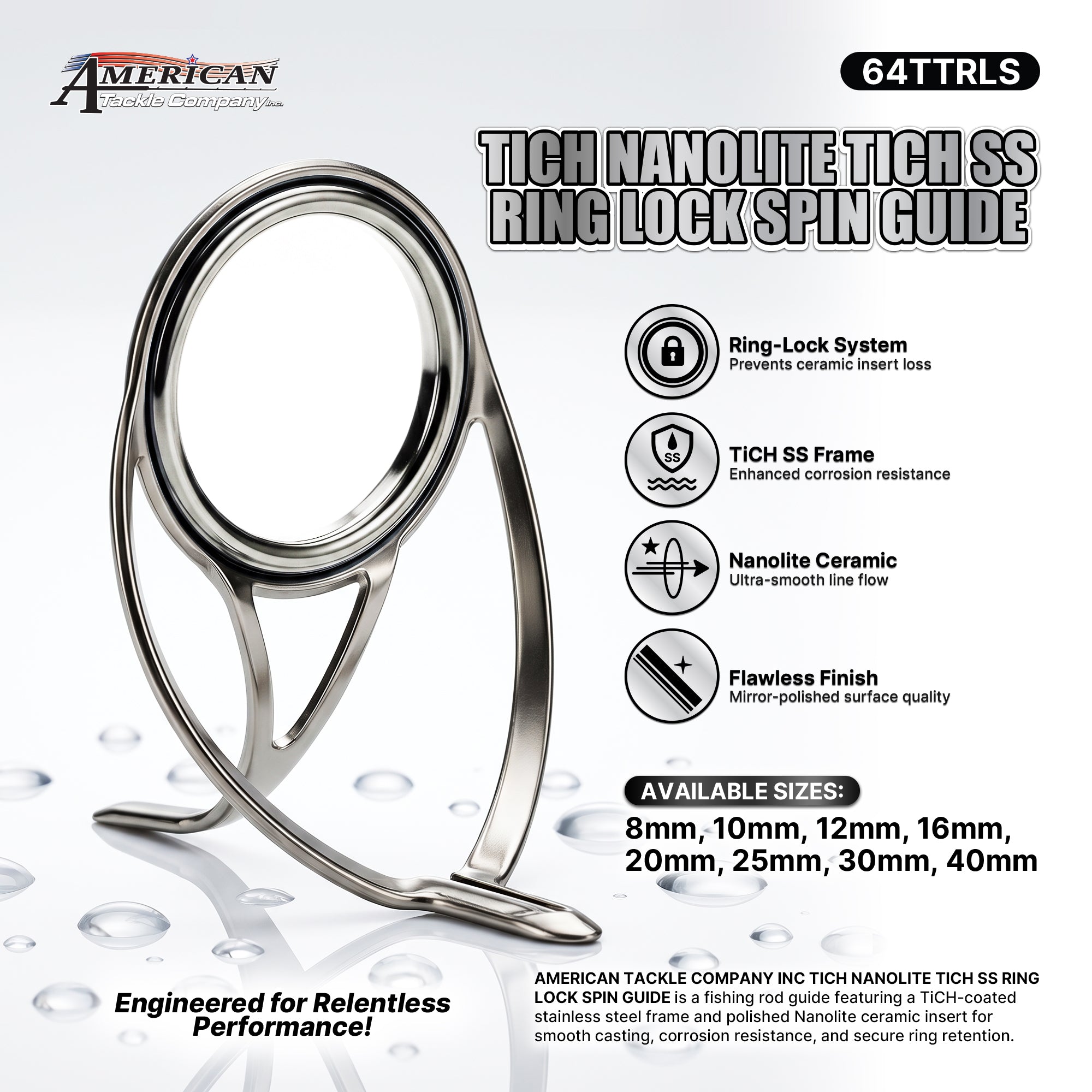

A single American Tackle 64TTRLS guide for rod building, sold individually in eight ring sizes from 8 mm to 40 mm. The S marks the spinning frame, and it is why this ladder looks nothing like the casting models in the same 64 series. A fixed spool releases line in expanding coils, not straight off a level spool, so the guide nearest the reel must stand tall and open wide enough to catch that cone and funnel it down — a casting train can start at 16 mm, a spinning train may need 40 mm. TT is the middle ring option here: a TICH frame carrying a Nanolite ring in stainless steel, seated by Ring Lock.

Key Features

• Spinning frame with the standing height a fixed spool needs
• TICH frame, Nanolite ring, stainless steel
• Ring Lock pressure-fit ring seat with enlarged glue reservoir (US Patent D627,032)

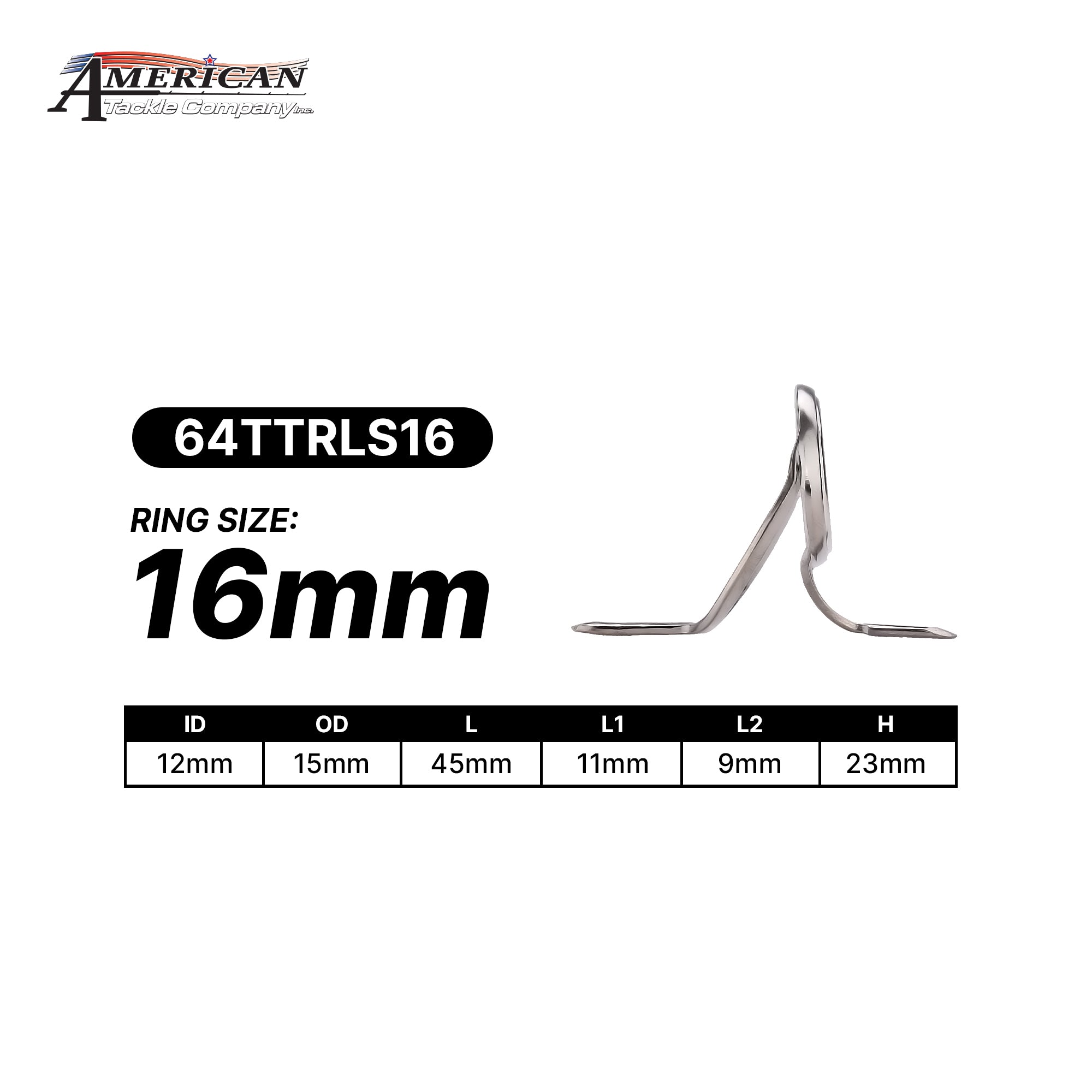

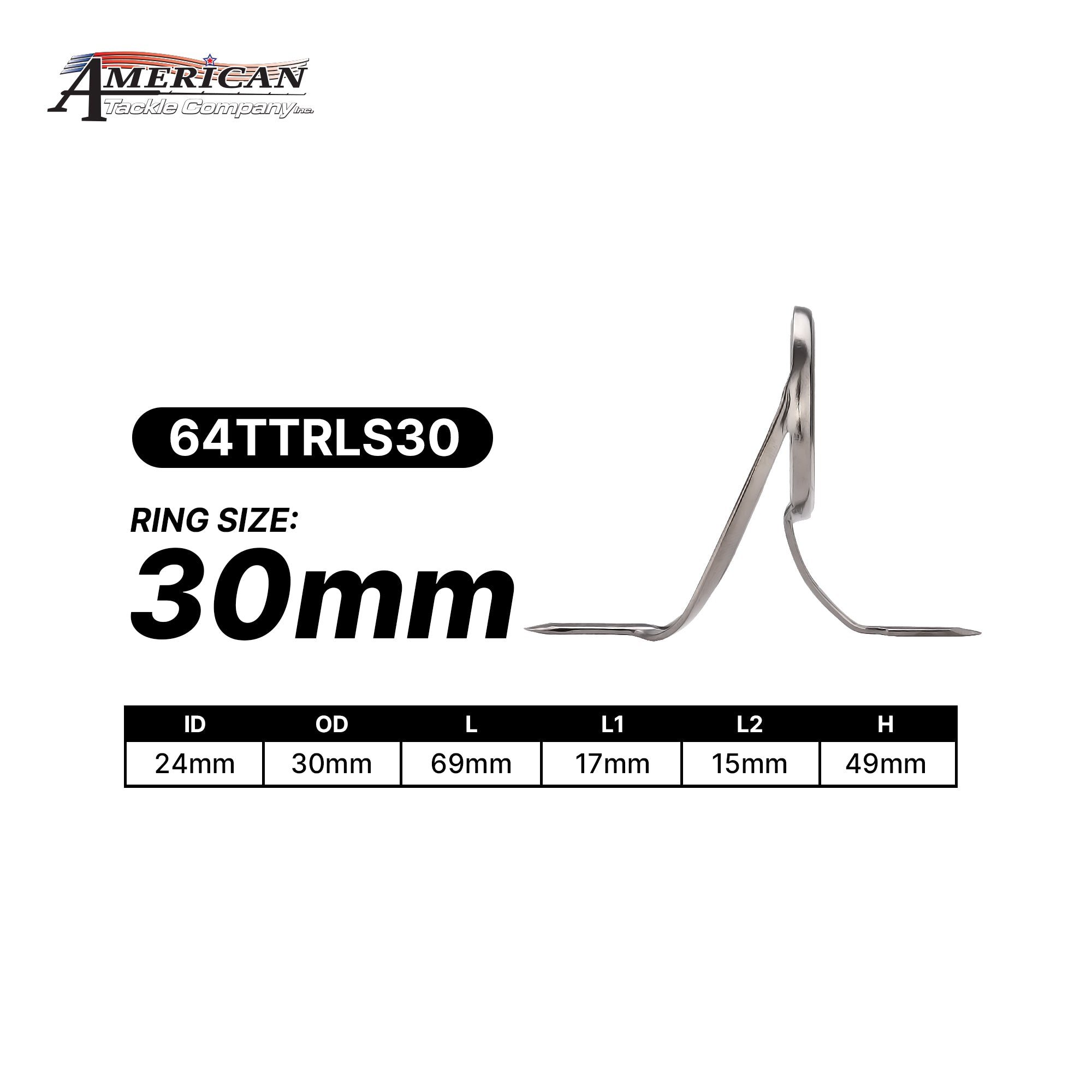

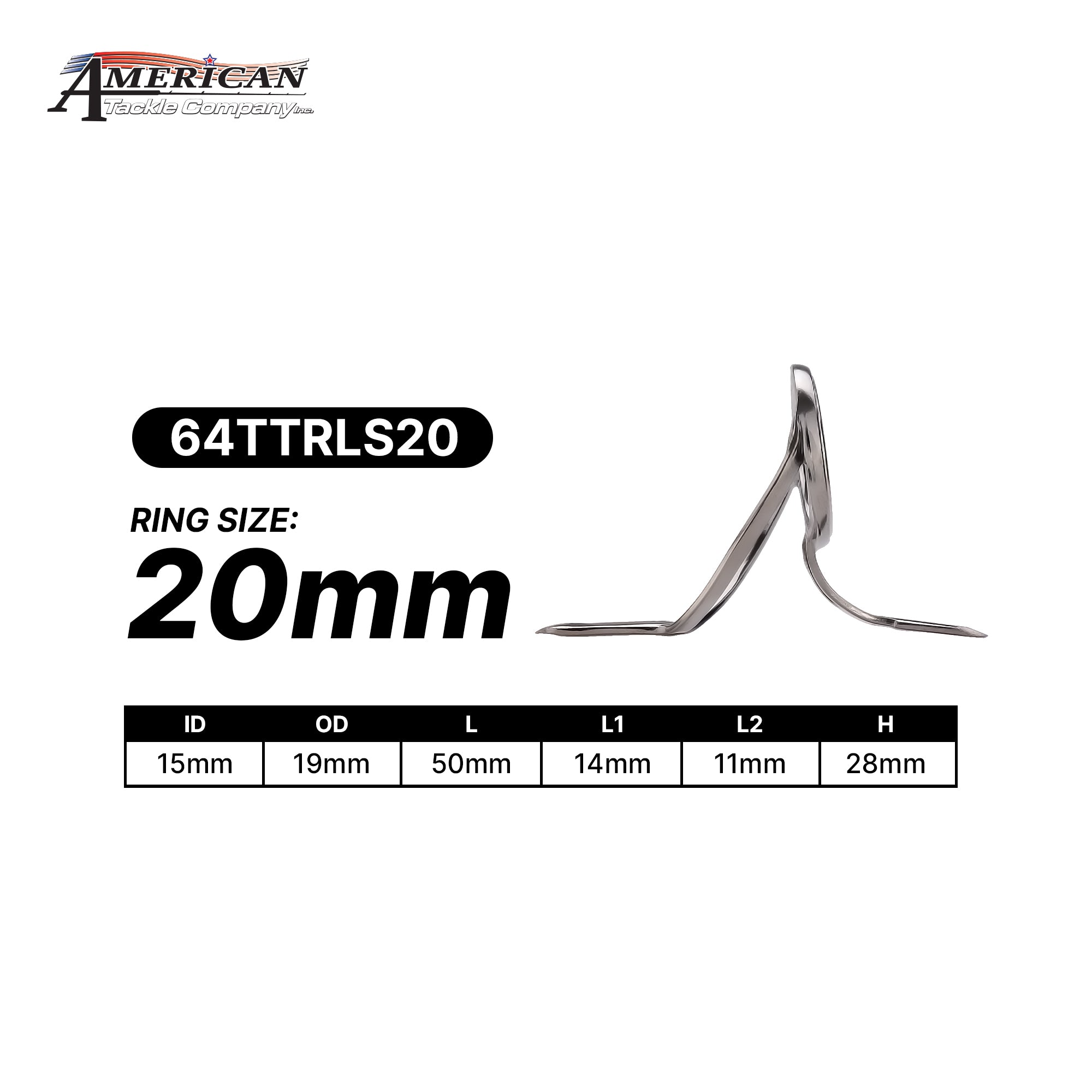

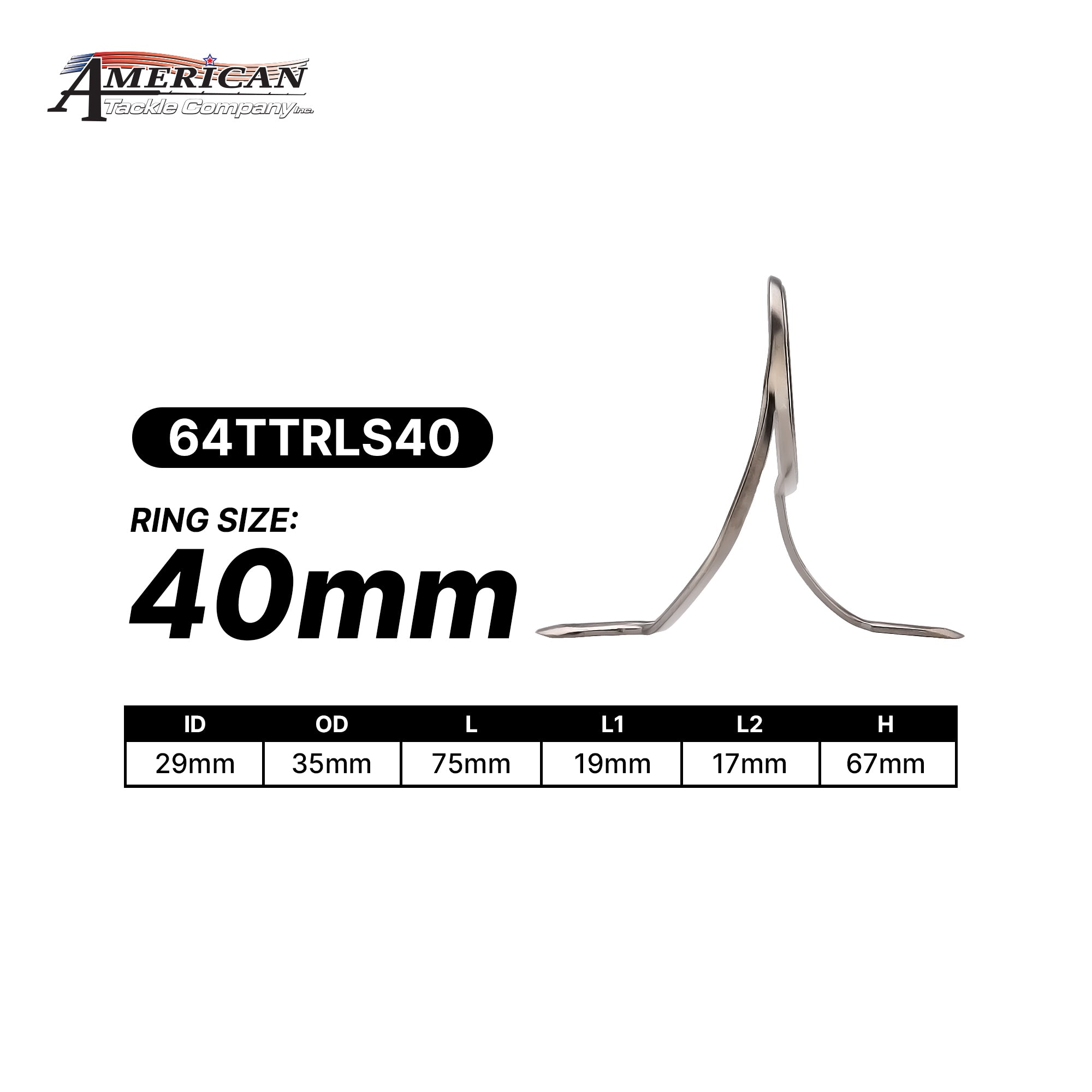

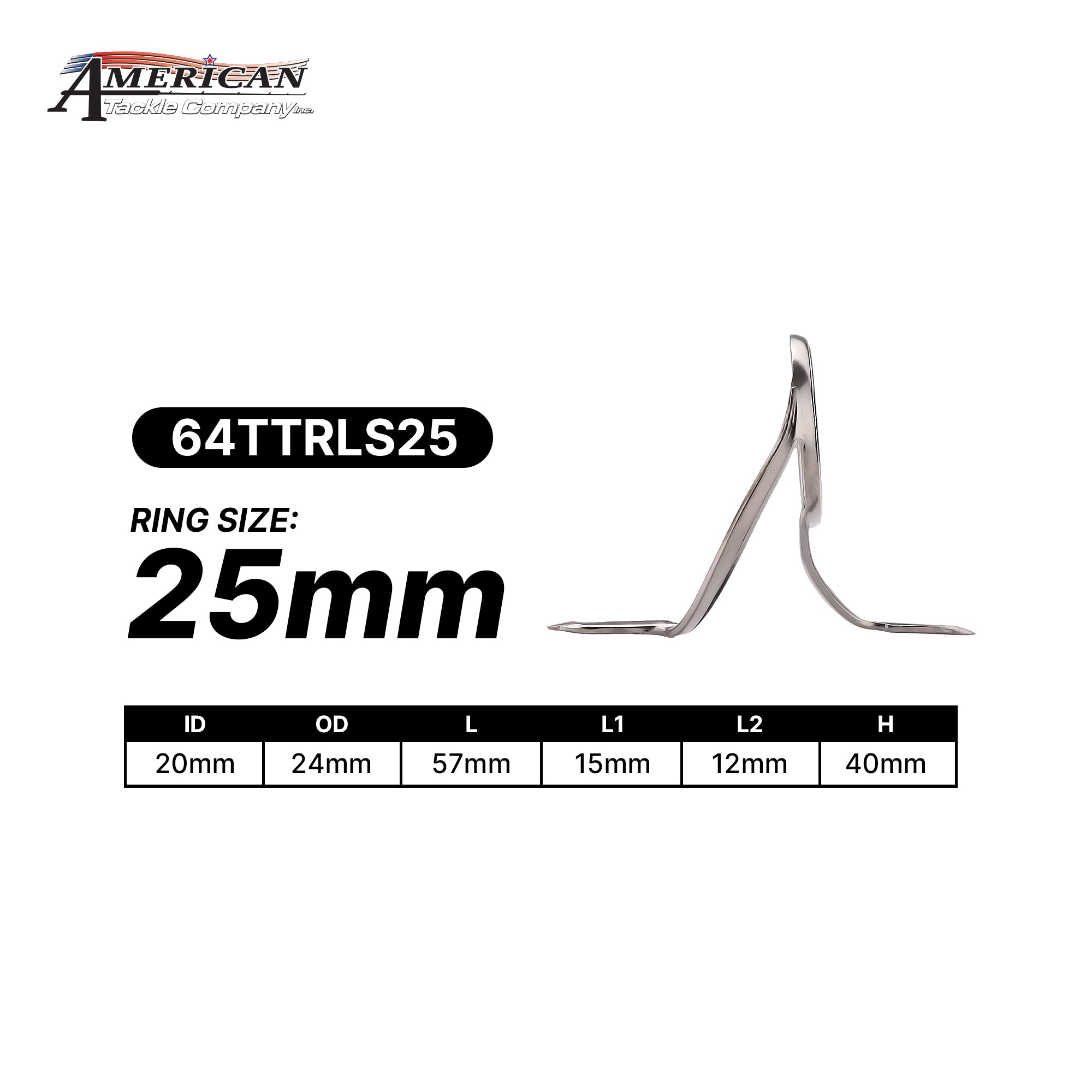

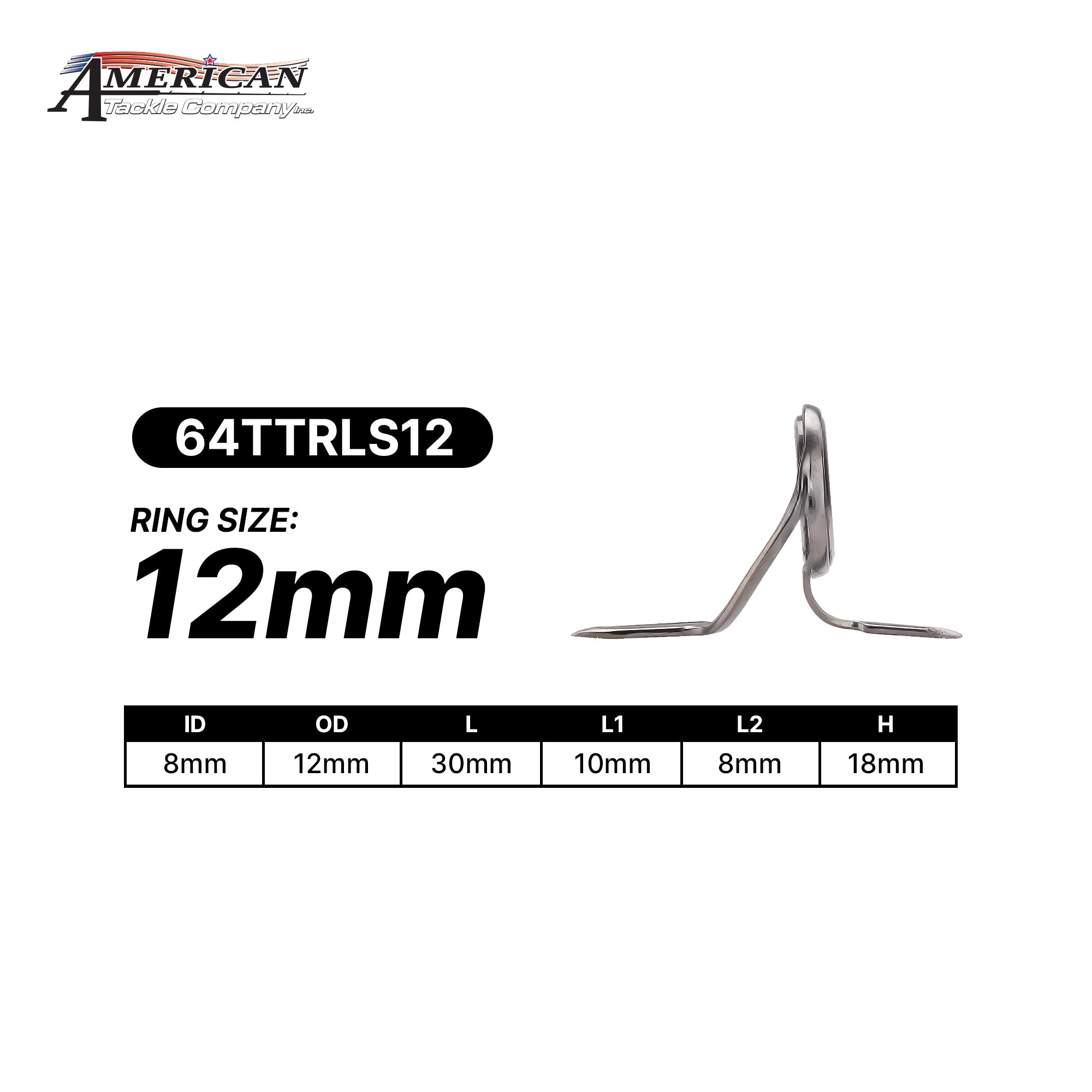

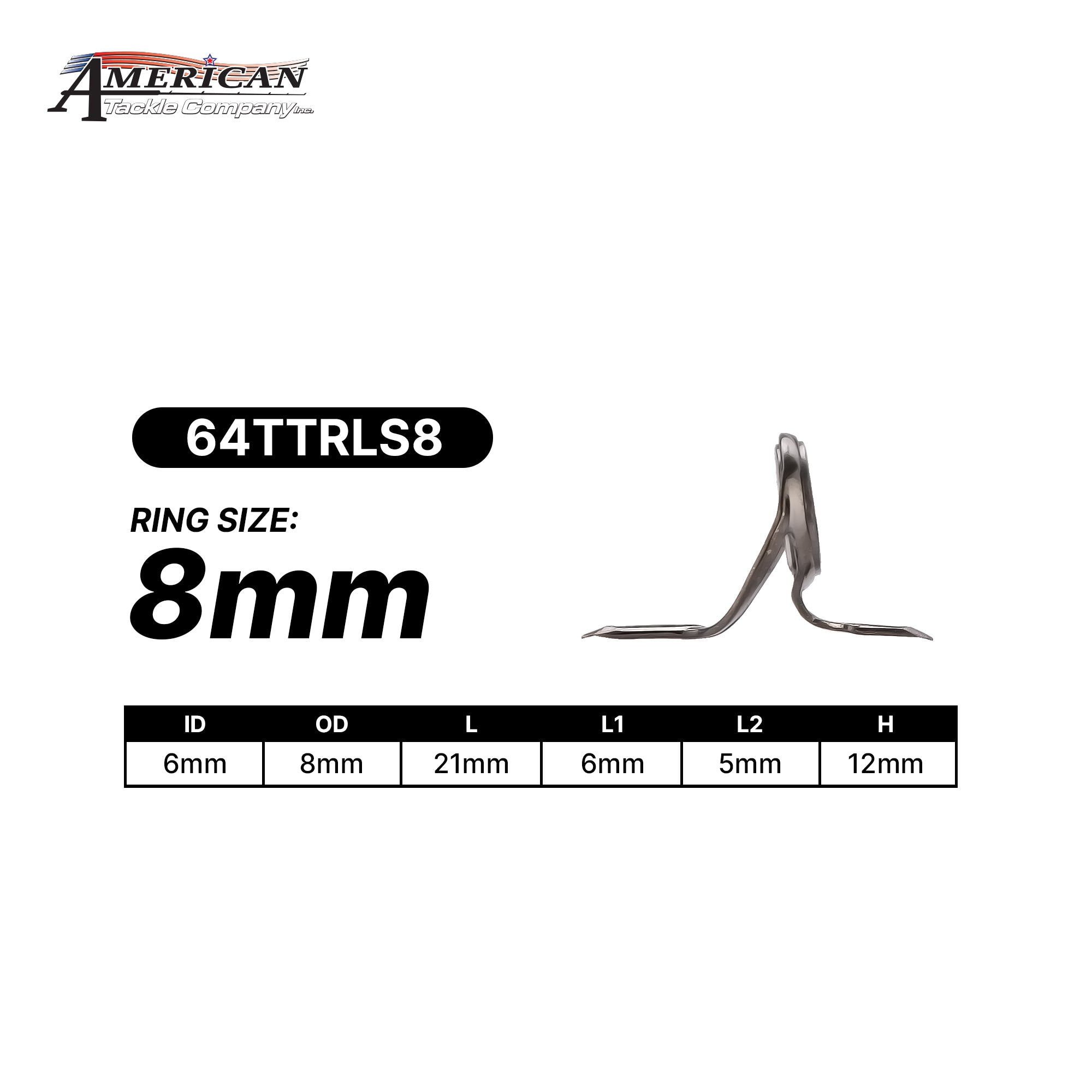

• Eight ring sizes: 8, 10, 12, 16, 20, 25, 30 and 40 mm, sold singly
• Model 64TTRLS, SKUs coded by ring size

Where It Sits In The Ladder

• 64NCRLS — chrome Nanolite — The entry step. First builds, spare sets, rods that mostly run mono.
• 64TTRLS — TICH Nanolite, this model — The middle step, and where most builds land: a mixed braid and mono rod that sees salt but does not need a titanium budget.
• 64NIRLS — titanium — The top step. Lightest, and hardest for braid to groove, for dedicated PE rods.

How To Build With It

• Sizing the stripper — Match the first guide to the spool: 40 and 30 mm for 6000–14000 reels, 25 mm for 3000–5000, 20 mm for finesse blanks. Undersizing here costs distance on every cast.
• Reduce, then run — Take the cone down through 25, 20 and 16 mm over the first third of the blank, then hold 12, 10 and 8 mm to the tip where the line is already near-straight.
• Use the extra step — The 10 mm the titanium model skips is useful here: a light train can reduce in smaller increments instead of jumping 12 mm straight to 8 mm.
• Spacing and finishing — Around one guide per foot of blank plus one. Static test the taped train under a hanging weight until the line follows the curve, then seal in two thin epoxy coats.

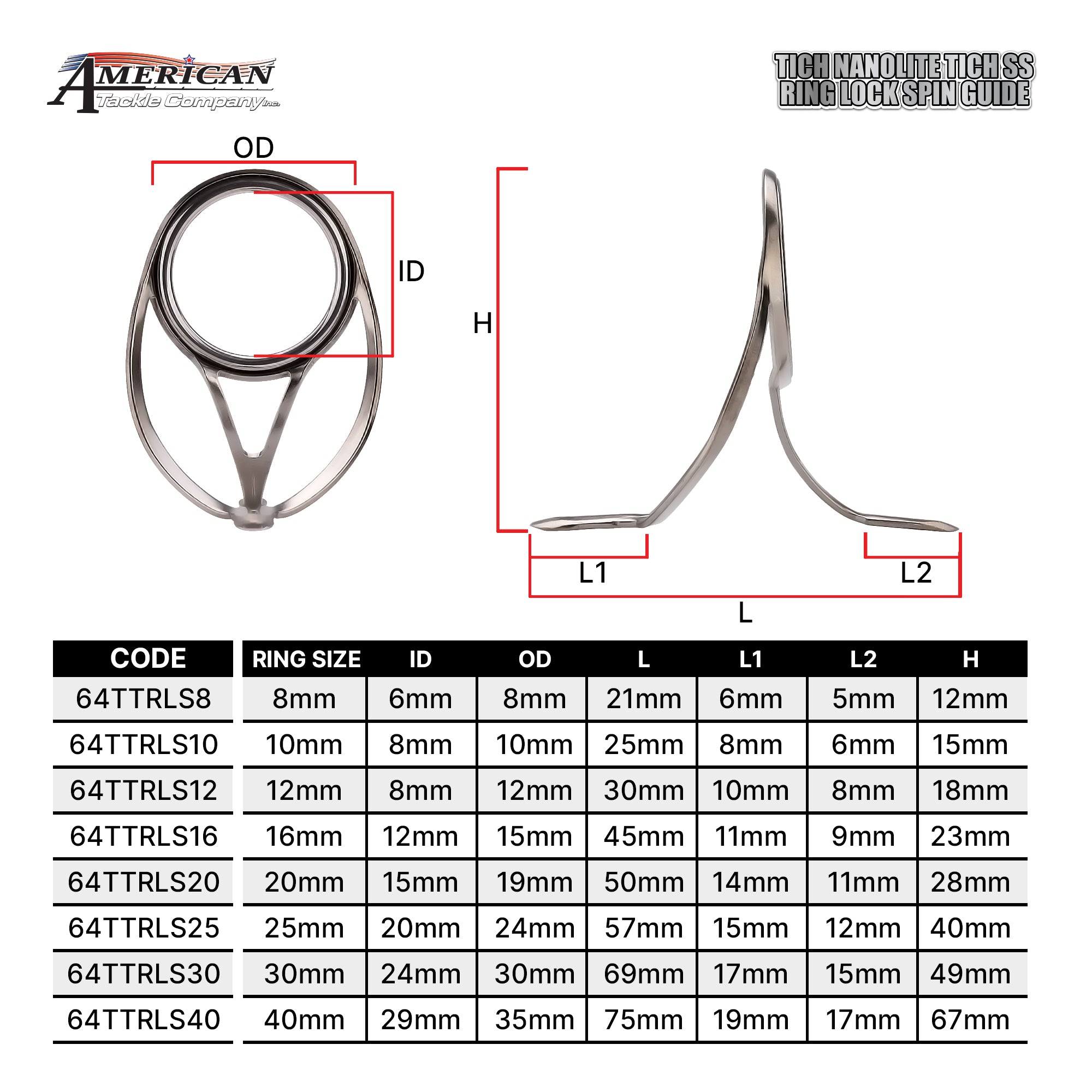

Specifications

Recommended Pairing

• Light to heavy spinning blanks carrying 1000–14000 size reels
• PE 0.6–6 braid or 6–40 lb mono with a matched fluorocarbon leader
• Size A or D thread and two-part epoxy; match the tip top to the 8 mm running guide
