AMERICAN TACKLE - STANDUP BR GUIDE 64BGSG BLACK/GOLD GUIDE FISHING ROD GUIDE
American Tackle Standup BR Guide 64BGSG Black/Gold

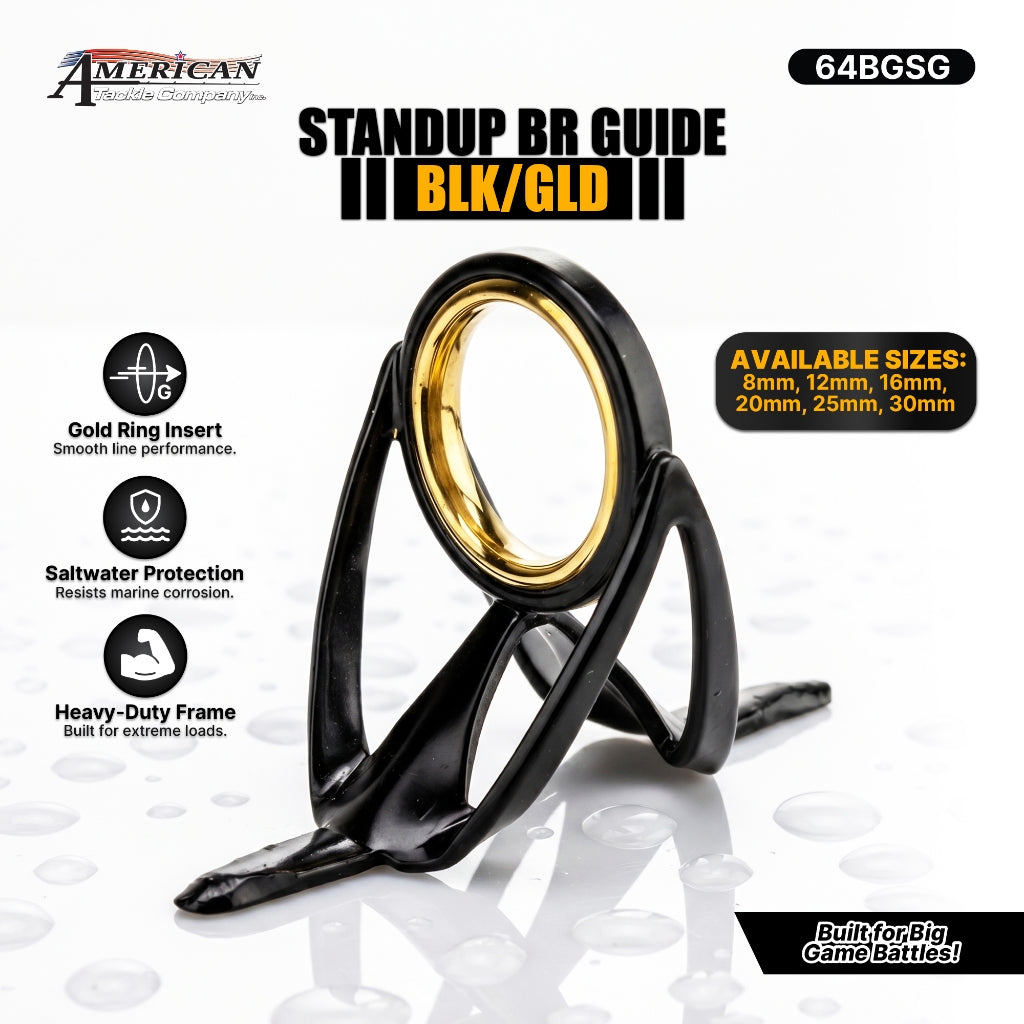

The 64BGSG is the standup guide of the 64 series: a black and gold frame sold singly in six sizes from 8 mm to 30 mm, built for the short, thick blanks used in standup big-game fishing. A standup rod is fought from a harness with the angler leaning back, so load runs vertically down a deeply bent blank at close to full drag, and it stays there. Nothing about that resembles casting. Guides for it need a heavy frame on a wide, long foot, because the wrap has to hold against pressure that never lets up. The ladder skipping 10 mm fits a standup train: a few large frames to take line off the reel, then a short run of small ones to the tip.
Key Features
- Standup frame profile for harness-fought big-game blanks
- Black and gold finish, matching classic game-rod component sets
- Six ring sizes: 8, 12, 16, 20, 25 and 30 mm
- Ladder skips 10 mm, giving a deliberate step from 12 mm down to 8 mm
- Model 64BGSG, with SKUs coded by ring size
How To Build With It
- Placing the first two frames — Set the 30 mm and 25 mm on the butt section and check clearance with the reel in a fighting position, not flat on the bench.
- Short, steep reduction — Move from 20 mm to 16 mm and then 12 mm over a short span, and run only the 8 mm frames on the last stretch to the tip.
- Testing at fighting curve — Static-test with enough weight to bend the blank to its real fighting arc. A standup blank spends its working life near that curve, so guide spacing should be judged there.
- Wrapping for full drag — Wrap both feet the whole length of the ramp with no gap at the toe, then finish in two thin epoxy coats; a short wrap is the first thing to lift.

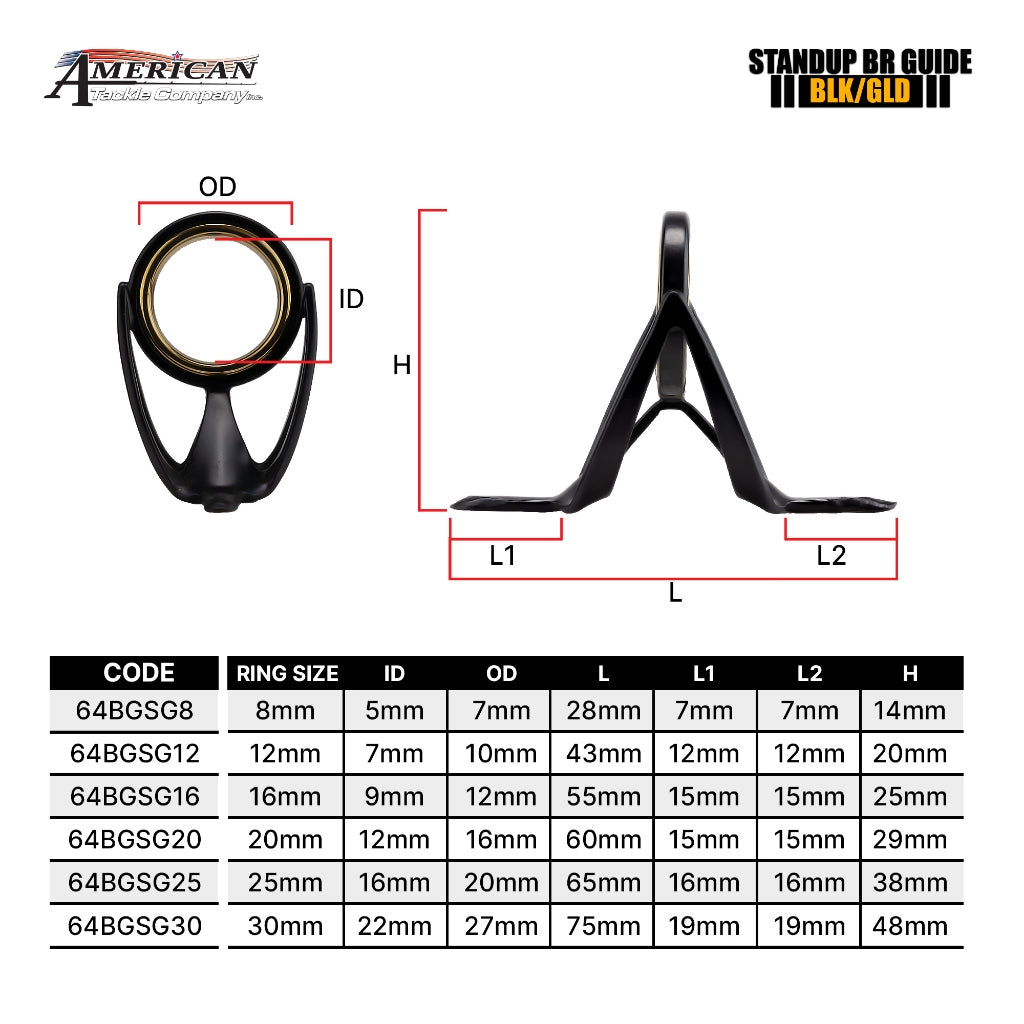

Specifications
| Ring Size | SKU | Typical Position |
|---|---|---|

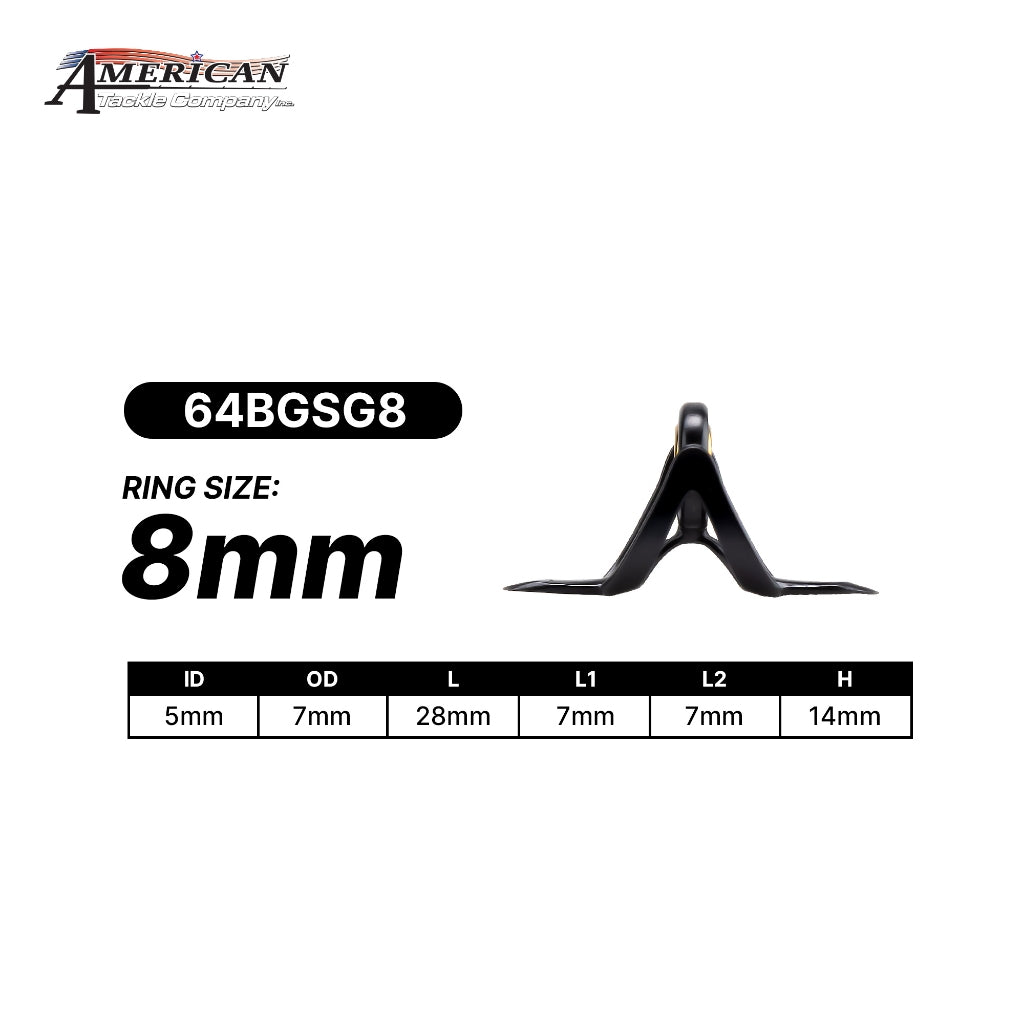

| 8 mm | 64BGSG8 | Tip-end running guide |

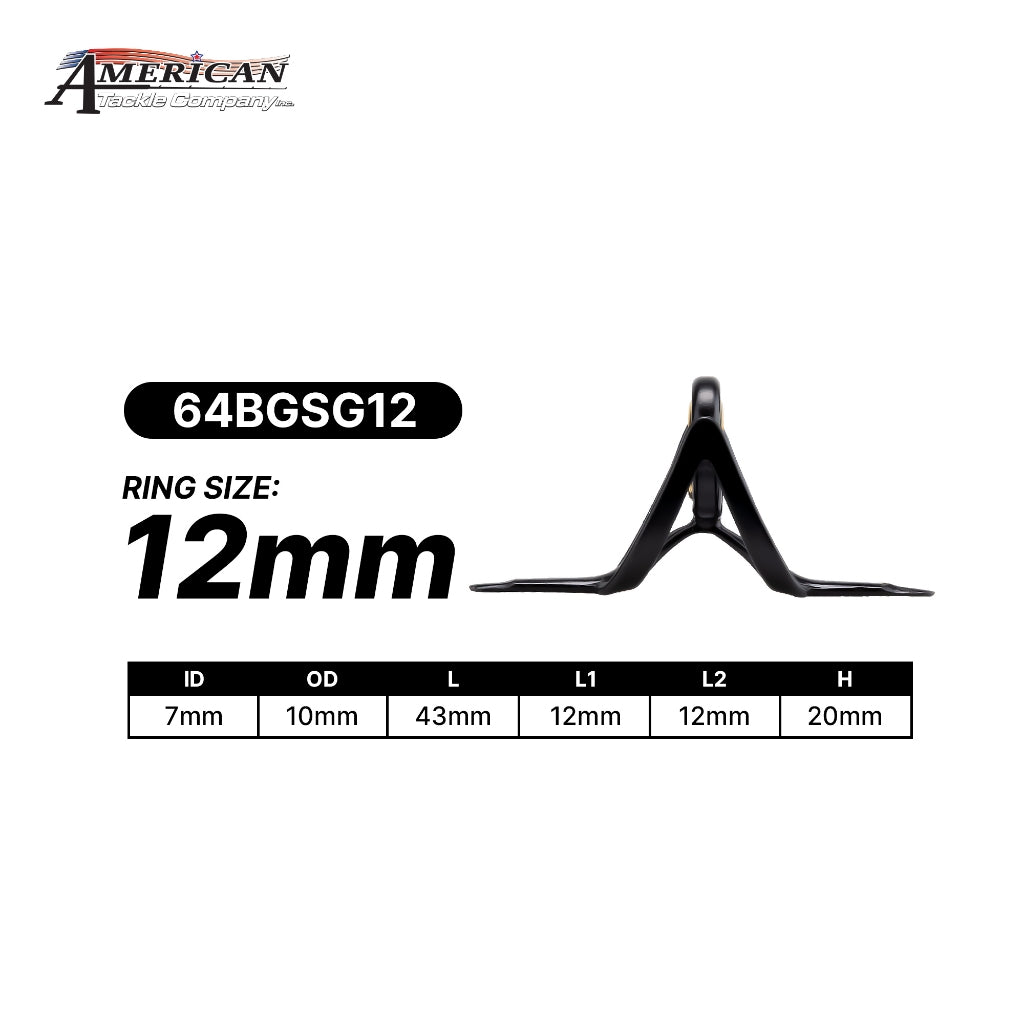

| 12 mm | 64BGSG12 | Running guide |

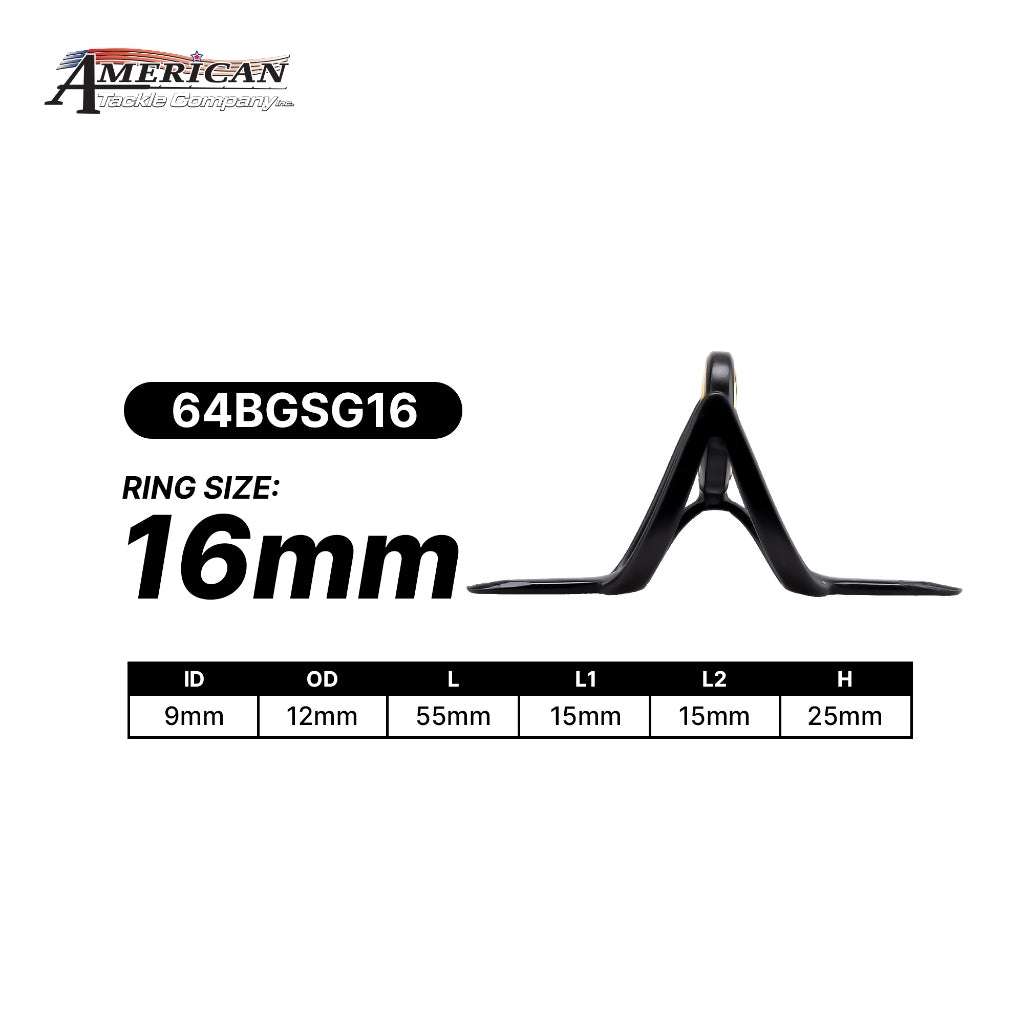

| 16 mm | 64BGSG16 | Mid guide |

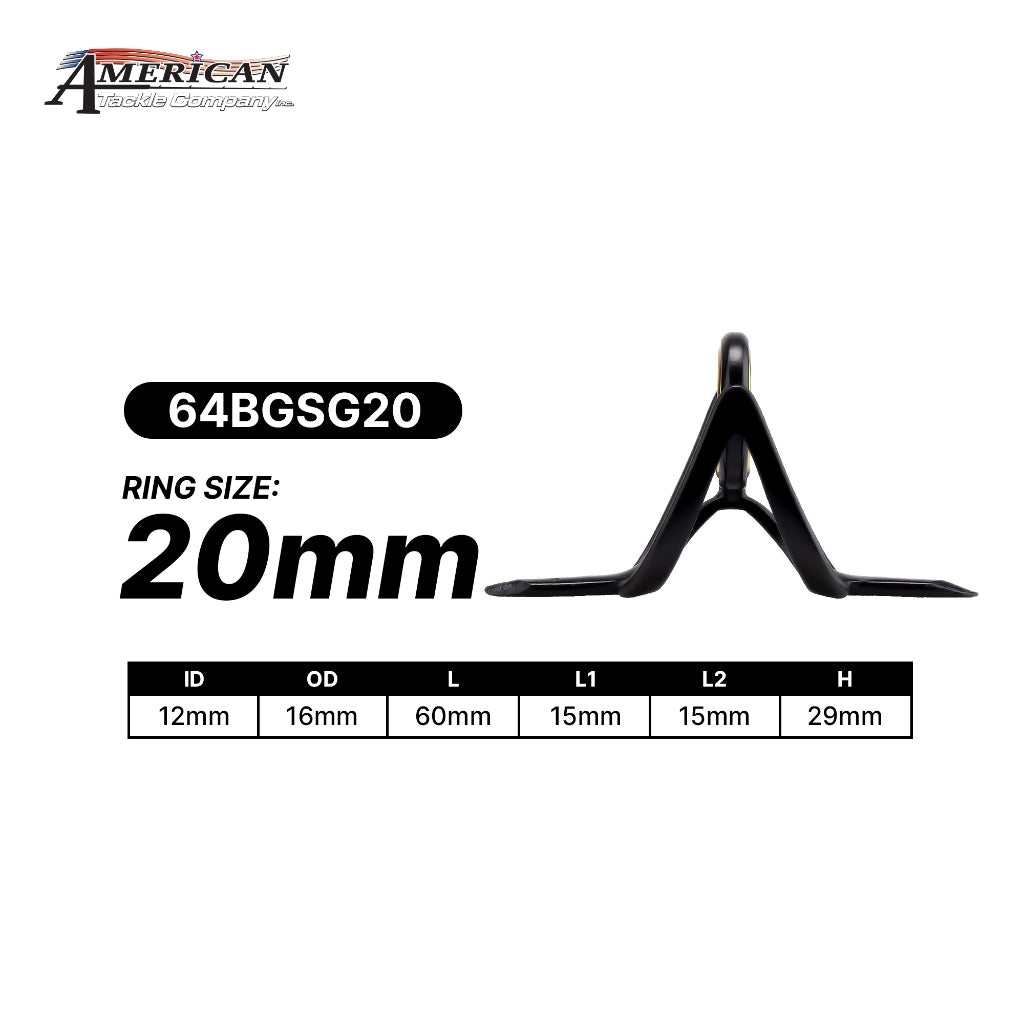

| 20 mm | 64BGSG20 | Reduction guide |
| 25 mm | 64BGSG25 | Stripper guide |

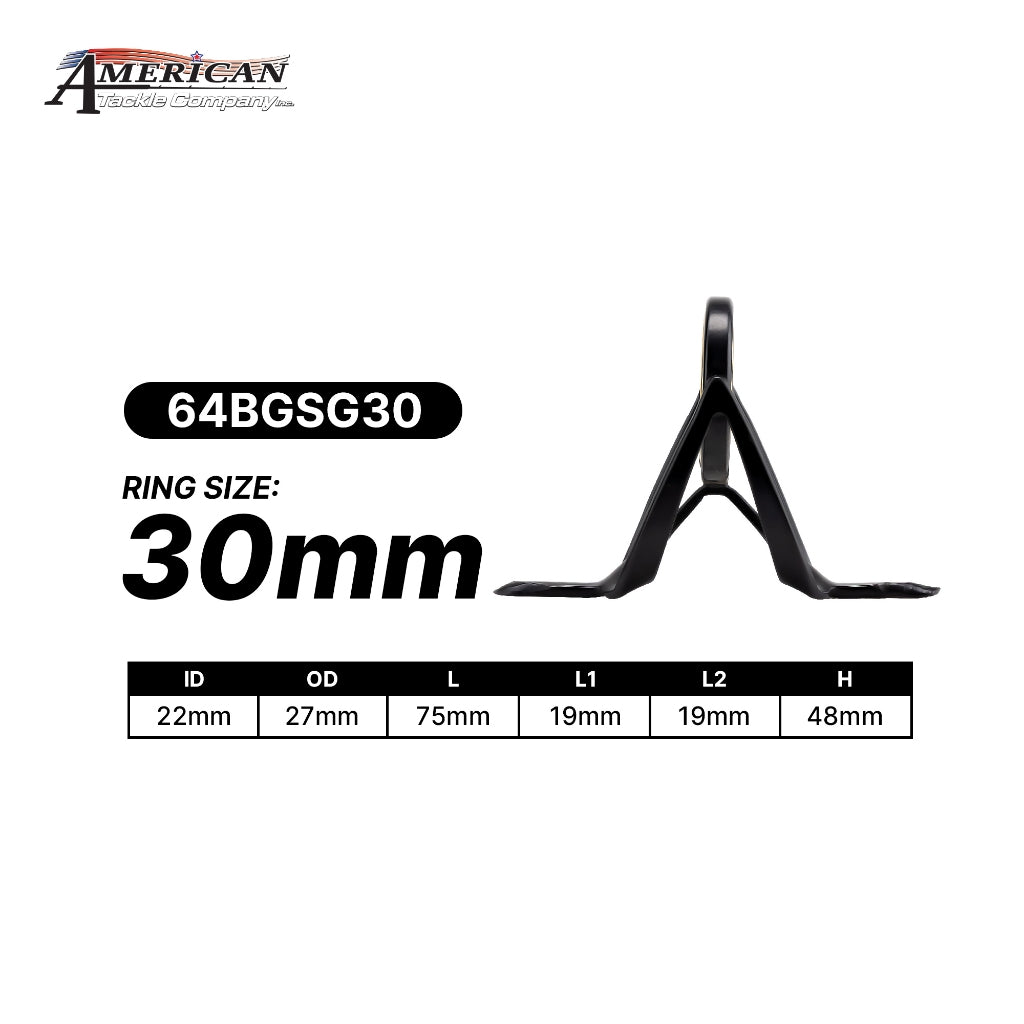

| 30 mm | 64BGSG30 | Stripper guide |
Sold as single guides, black and gold finish throughout. No 10 mm size is offered in this model.
Recommended Pairing
- Short standup and heavy jigging blanks carrying lever-drag reels in the 30 to 80 lb class
- PE 6–12 braid or 50–100 lb monofilament with a heavy fluorocarbon or nylon leader
- Size D thread and two-part rod-building epoxy, with a gold trim wrap to match the frame finish
AMERICAN TACKLE - STANDUP BR GUIDE 64BGSG BLACK/GOLD GUIDE FISHING ROD GUIDE
$5.00 USD
/
