AMERICAN TACKLE - NANOPLASMA RING GUIDE TICH FRAME CASTING 64TTRLC FISHING ROD GUIDE
American Tackle Nano Plasma Ring Guide TICH Frame Casting 64TTRLC
This is the everyday casting guide of the 64 series: a TICH frame carrying a Nanoplasma ring, sold singly in six sizes from 6 mm to 20 mm for baitcasting and light overhead builds. The ladder tells you the job. A casting reel pays line off a narrow, level spool rather than in a wide cone, so a casting train never needs the 25 or 30 mm strippers a spinning build depends on. It starts small, stays small and runs a lot of frames, which puts the emphasis on low frame weight rather than brute strength. That matters because every gram sitting out on the blank slows the tip recovery that gives a baitcaster its accuracy.
Key Features

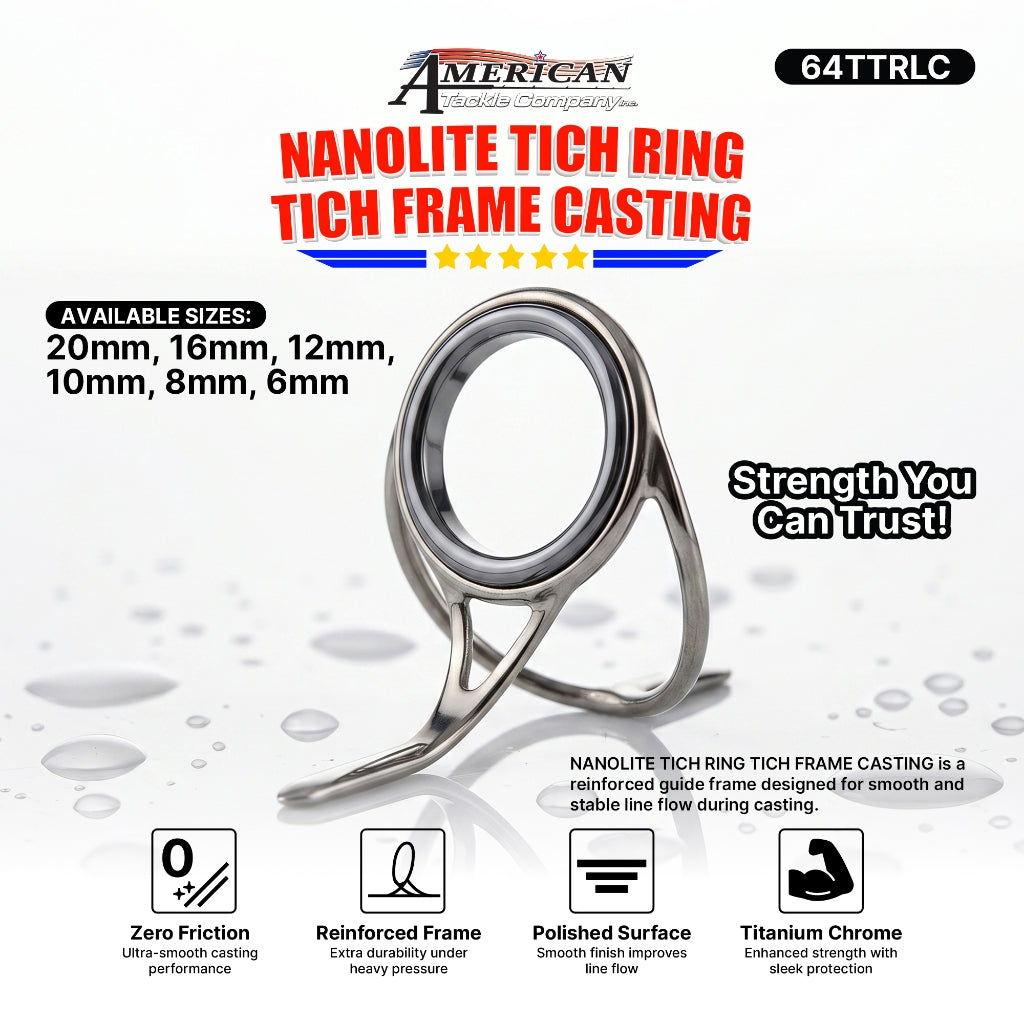

- TICH frame paired with a Nanoplasma ring
- Six ring sizes: 6, 8, 10, 12, 16 and 20 mm
- Low frame weight to protect tip recovery on a baitcasting blank
- Sold as single guides, so a full casting train is built size by size
- Model 64TTRLC, with SKUs coded by ring size
How To Build With It
- Choosing the casting stripper — Set the 20 mm or 16 mm at the reel. On a low-profile baitcaster the 16 mm is usually enough; keep the 20 mm for heavier blanks and thicker line.
- Running a long small train — Casting rods carry more guides than trolling rods. Step through 12 and 10 mm, then run 8 mm and 6 mm over most of the blank so the line sits close to the graphite.
- Spacing by static test — Start at roughly one guide per foot plus one, tape them on, load the tip and slide frames until the line traces the curve with no flat spot or blank contact.
- Keeping the tip light — Use size A thread on the small tip guides and two thin epoxy coats; heavy thread and thick finish near the tip dull the recovery this train is meant to preserve.

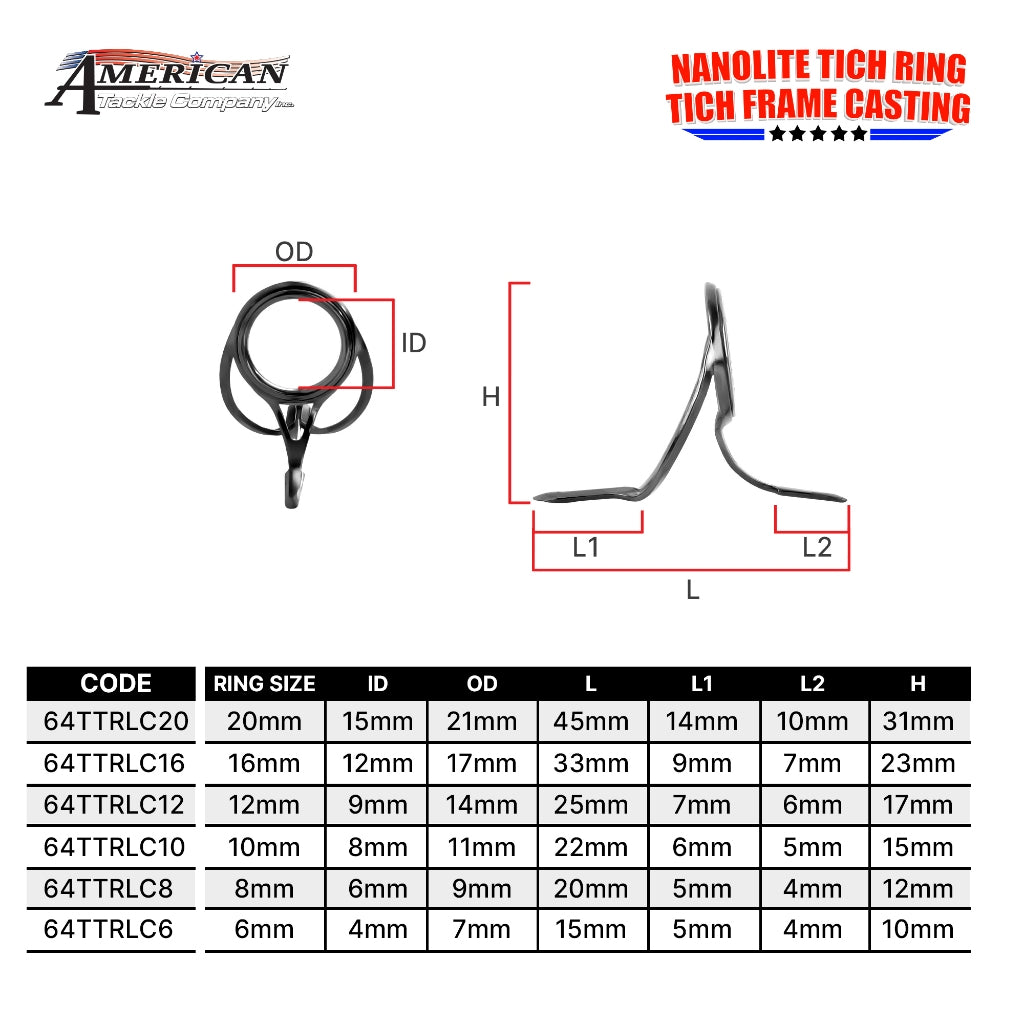

Specifications
| Ring Size | SKU | Typical Position |
|---|---|---|

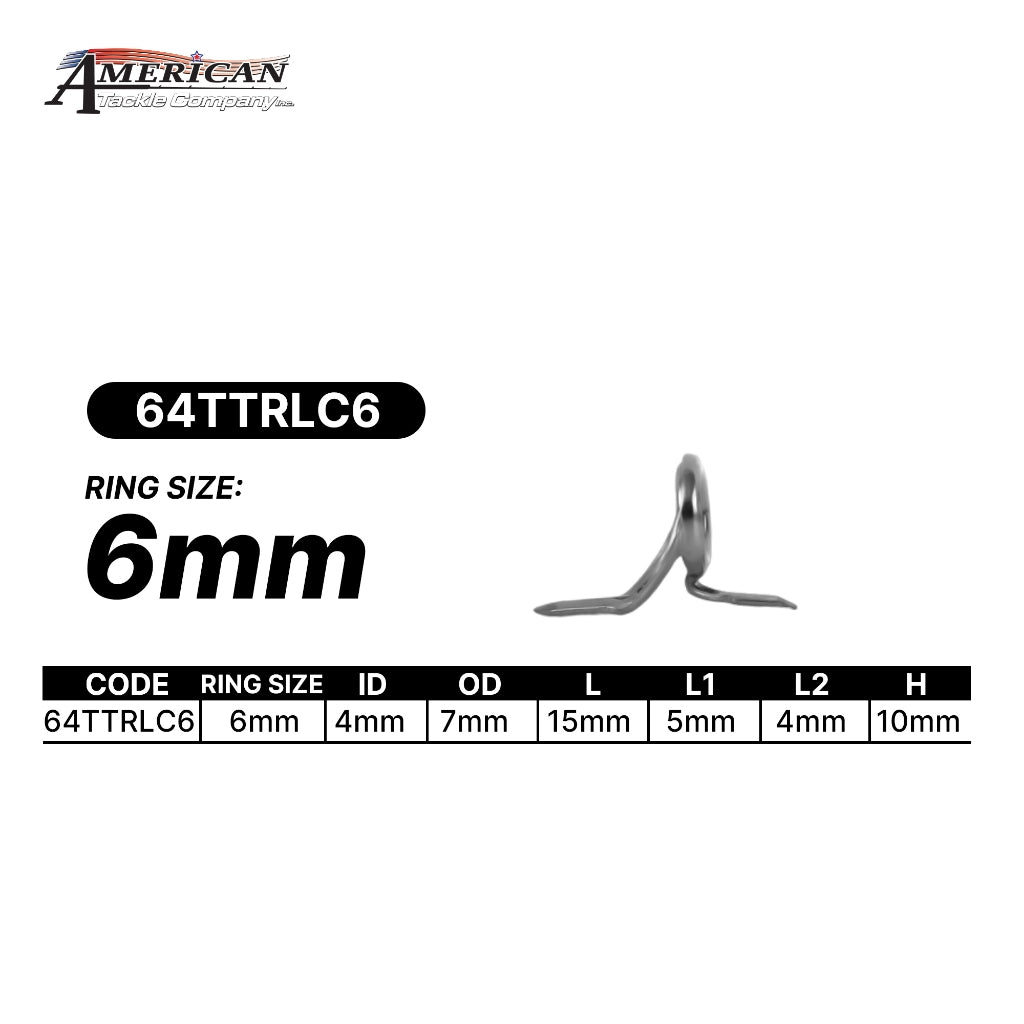

| 6 mm | 64TTRLC6 | Tip-end running guide |
| 8 mm | 64TTRLC8 | Running guide |

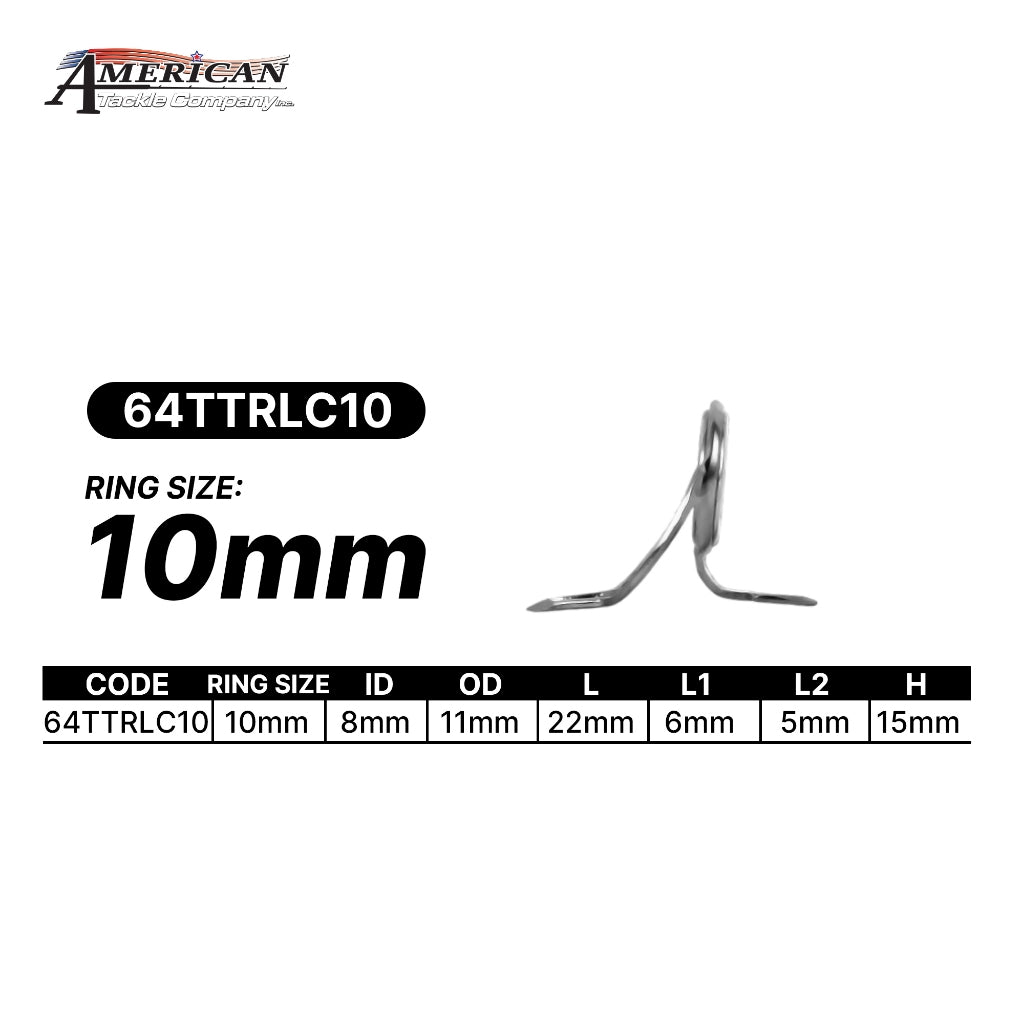

| 10 mm | 64TTRLC10 | Running guide |
| 12 mm | 64TTRLC12 | Mid guide |

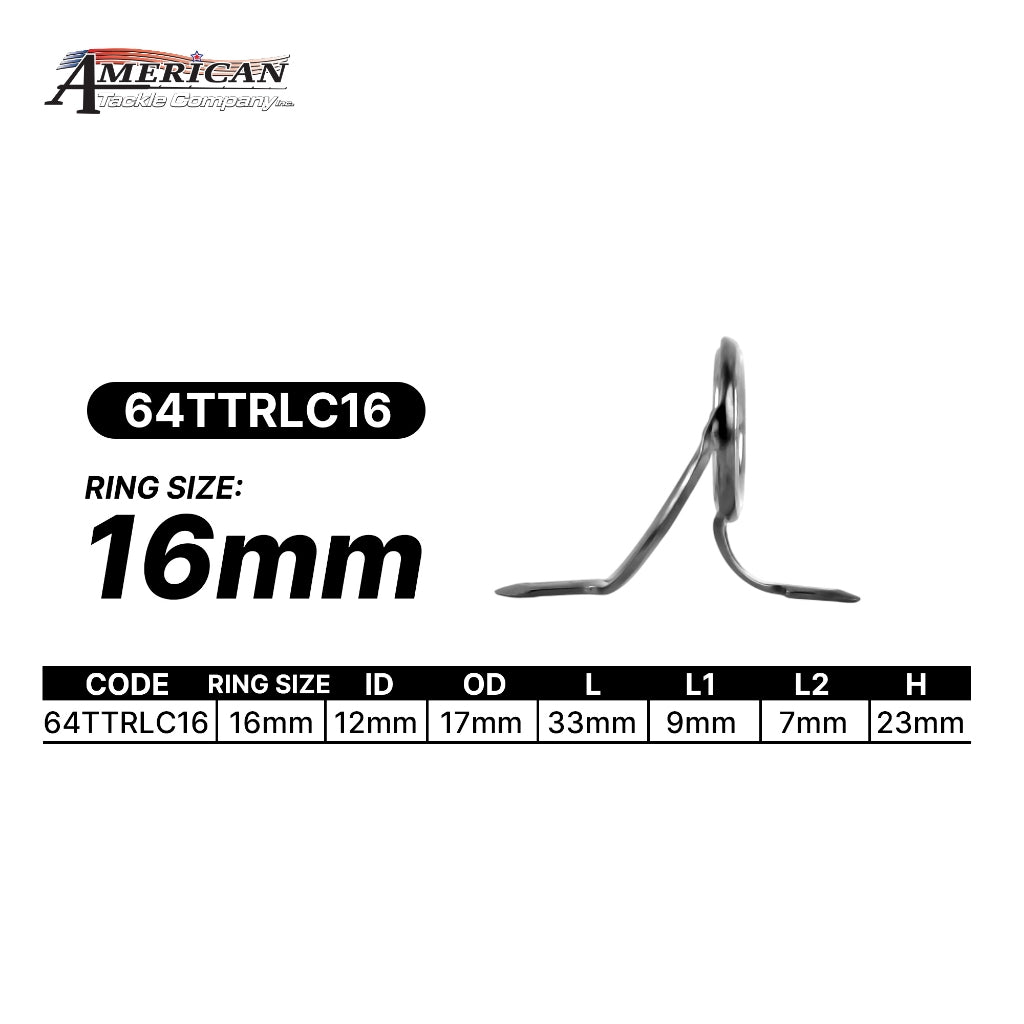

| 16 mm | 64TTRLC16 | Stripper guide |

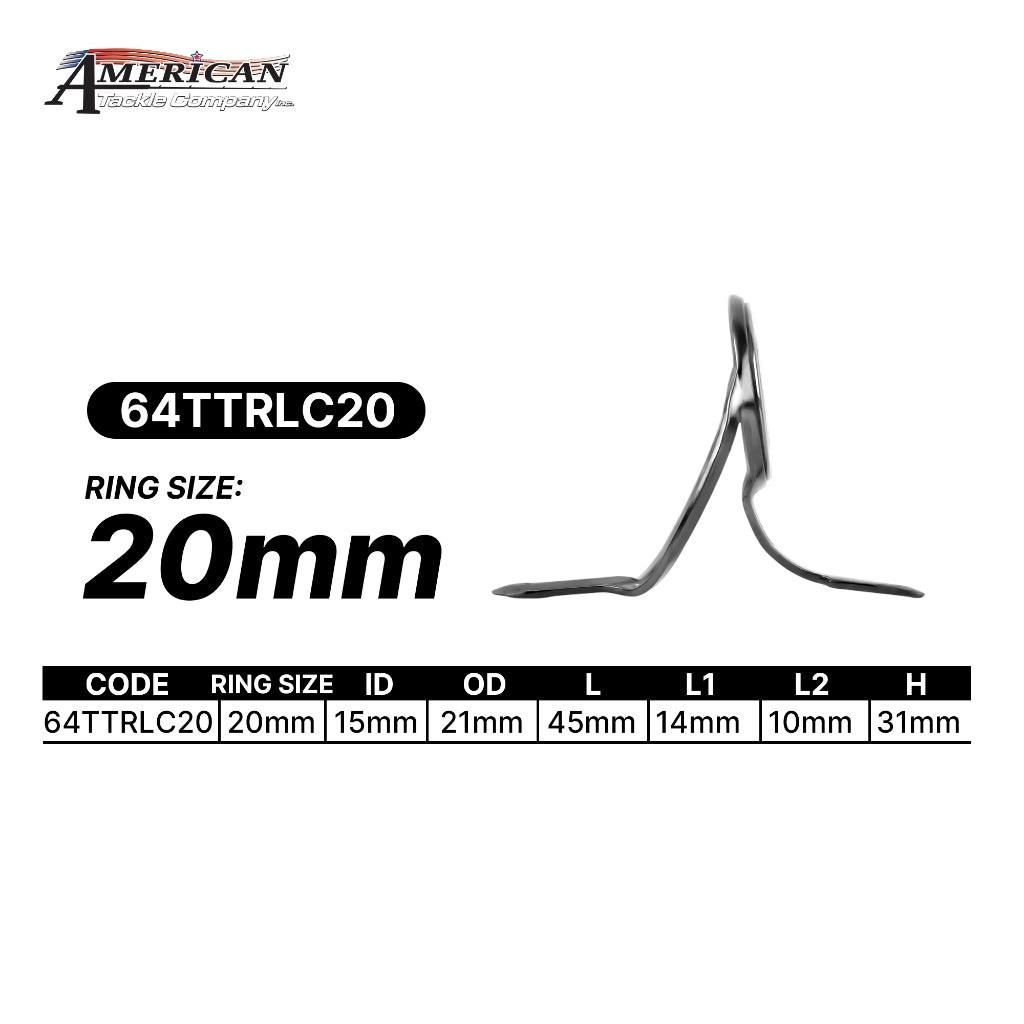

| 20 mm | 64TTRLC20 | Stripper guide |
Sold as single guides across all six sizes.
Recommended Pairing
- Light to medium-heavy baitcasting blanks carrying 100–300 size low-profile or round reels
- PE 0.8–3 braid or 10–30 lb monofilament with a fluorocarbon leader
- Size A thread and two-part rod-building epoxy, with a tip top matched to the 6 mm running guide
